Chain Bucket Skimmer CBP・CBS
Chain Bucket Skimmer CBP・CBS Thumbnail Chain Bucket Skimmer CBP・CBS Thumbnail Chain Bucket Skimmer CBP・CBS Thumbnail Chain Bucket Skimmer CBP・CBS Thumbnail Chain Bucket Skimmer CBP・CBS Thumbnail Chain Bucket Skimmer CBP・CBS Thumbnail Chain Bucket Skimmer CBP・CBS Thumbnail Chain Bucket Skimmer CBP・CBS Thumbnail Chain Bucket Skimmer CBP・CBS Thumbnail Chain Bucket Skimmer CBP・CBS Thumbnail

Chain Bucket Skimmer CBP・CBS

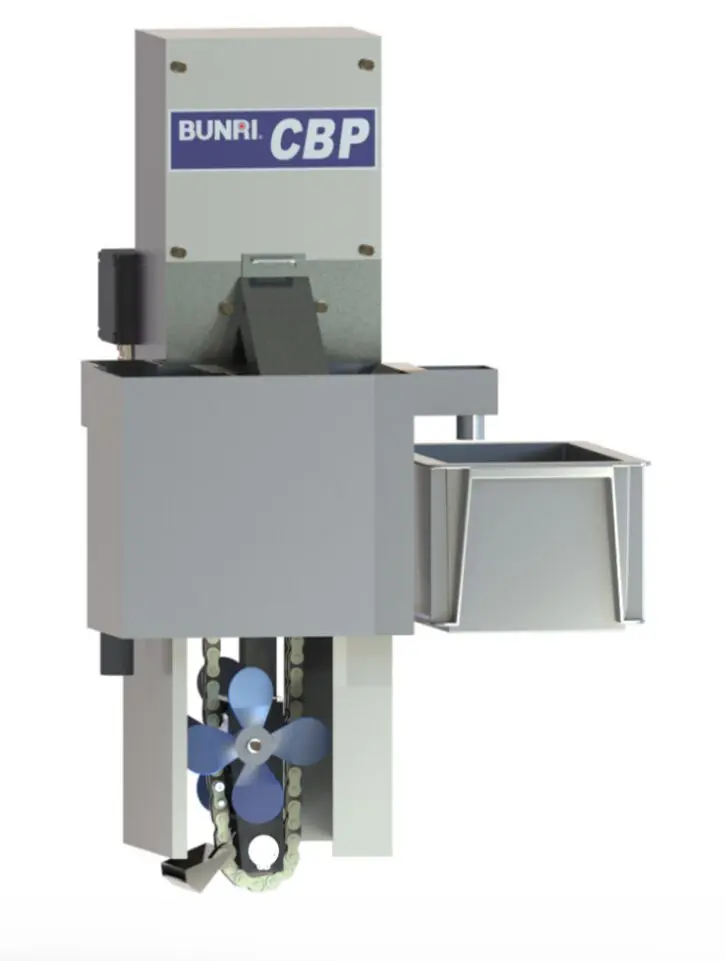

New Products! Chain bucket skimmer CBP

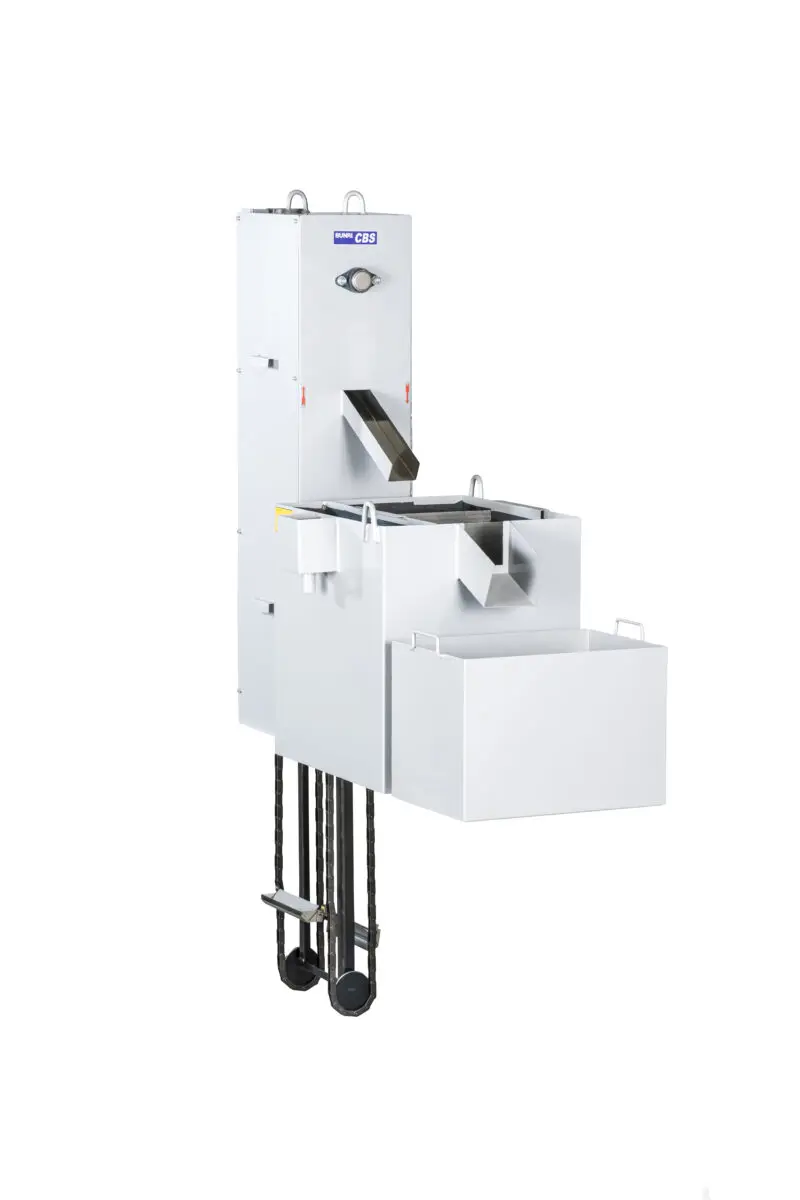

Chain bucket skimmer CBS

Features

Mechanism

Specifications

Processing flow rate

Product weight

Paint color

CBP-50/CBP-100: Main body Medium metallic, Cover Dark gray metallic; CBS-50/CBS-100: Main body Medium metallic, Cover Dark gray metallic; CBS-250: Medium metallic

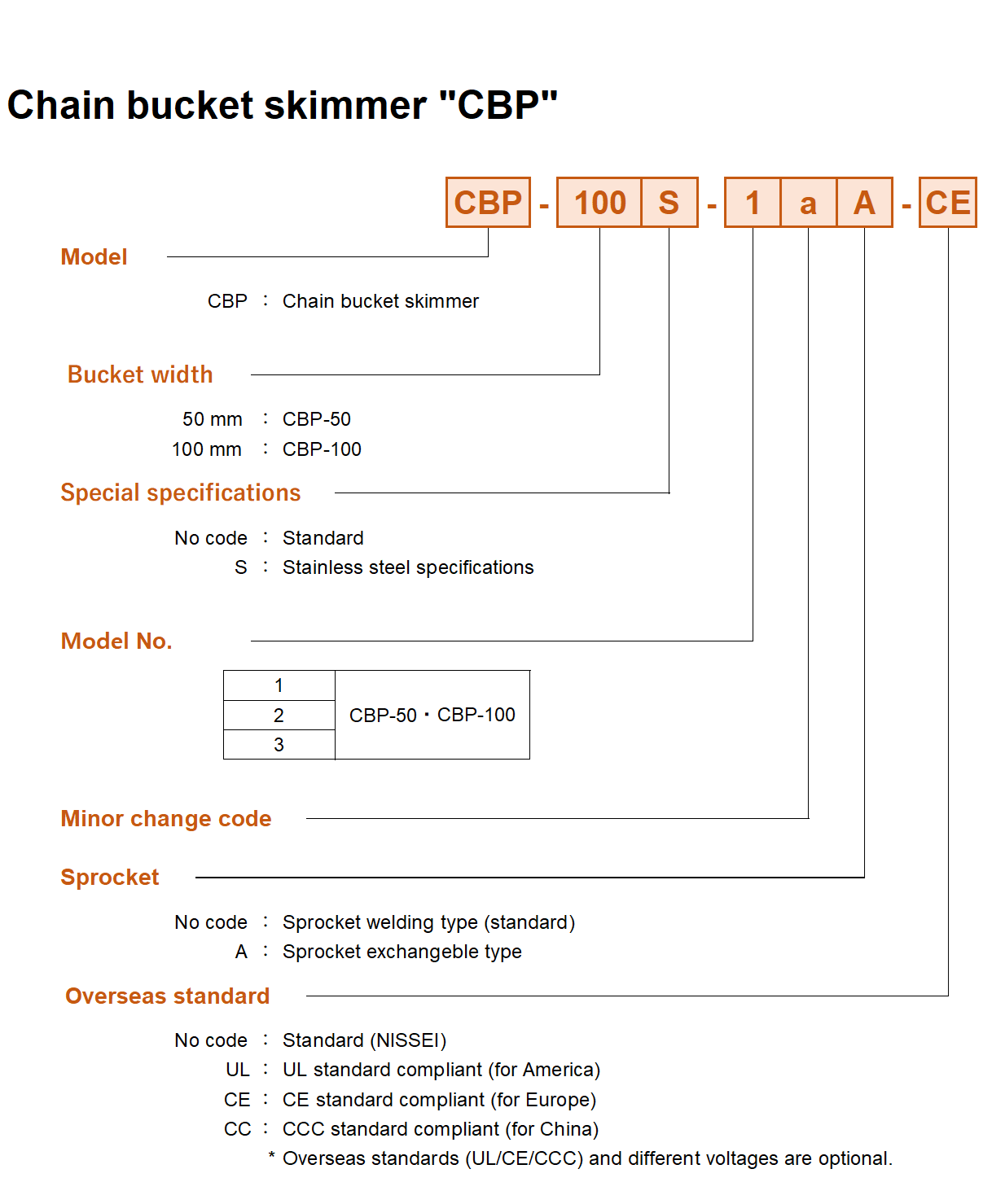

Model code

Model code image

Coolant

Water soluble

Category

Floating oil scum

Machine Tool

Grinding machine Tool grinding machine Saving machine Honing machine Super finishing machine (Super finisher) Thread rolling machine Machining center #30 Machining center Broaching machine NC lathes Automation machine Gear cutting machine Gun drill machine Induction hardening machine Cutting specialized machine Washing machine

Mechanism

Mechanism 1
Mechanism 2

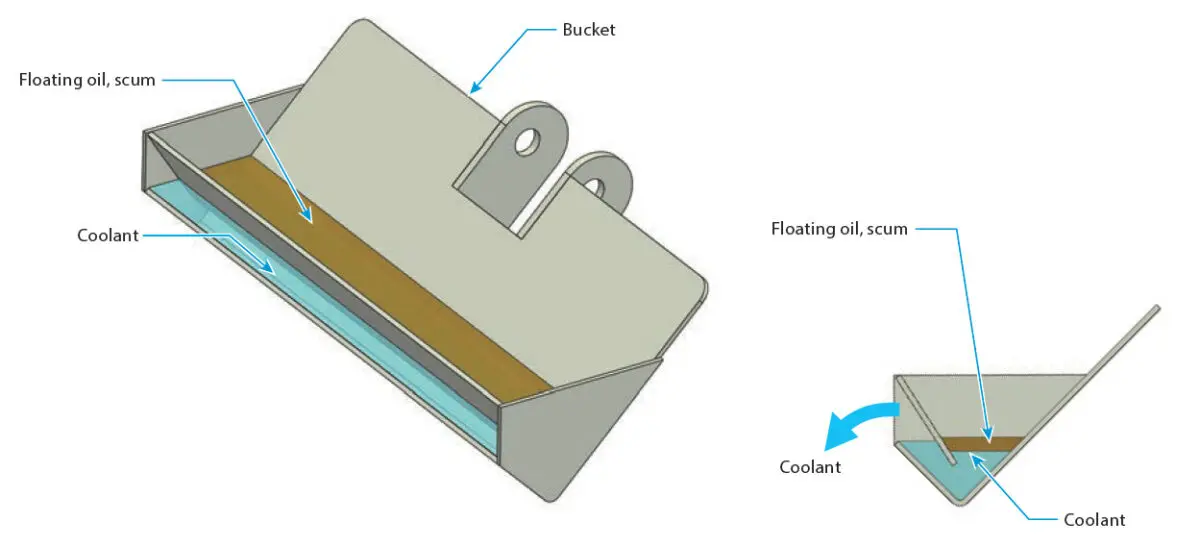

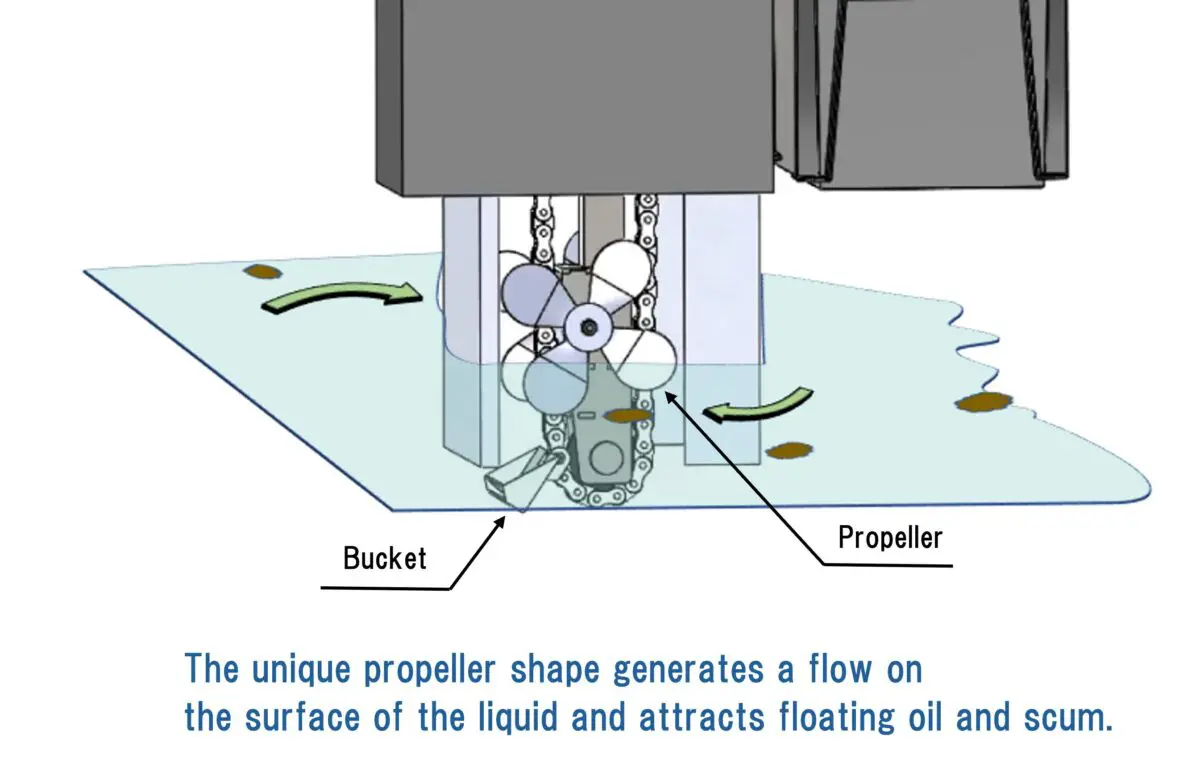

  1. The unique bucket shape collects oil and scum floating on the liquid surface of the coolant.

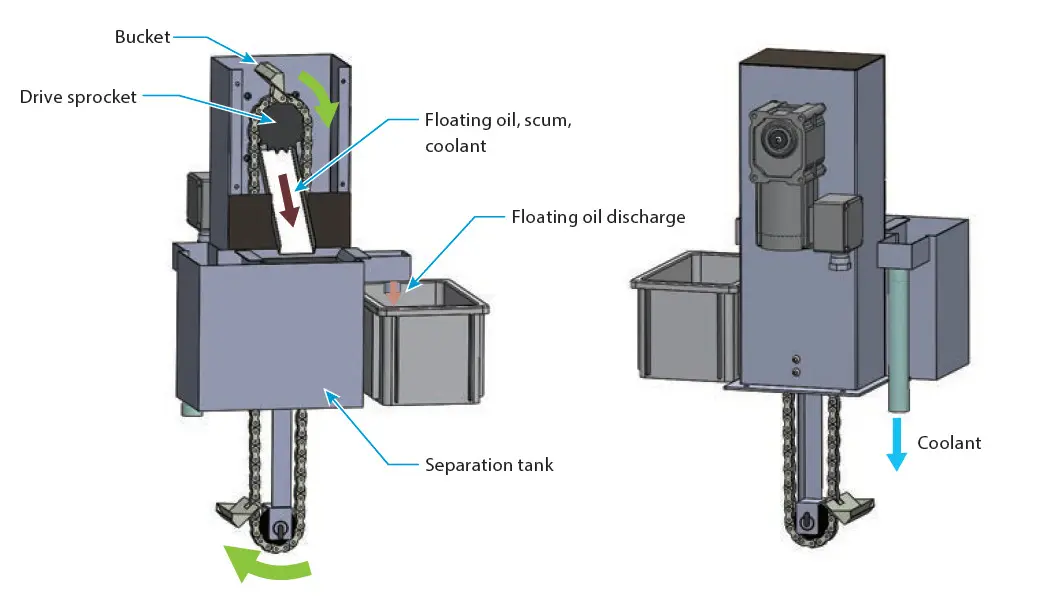

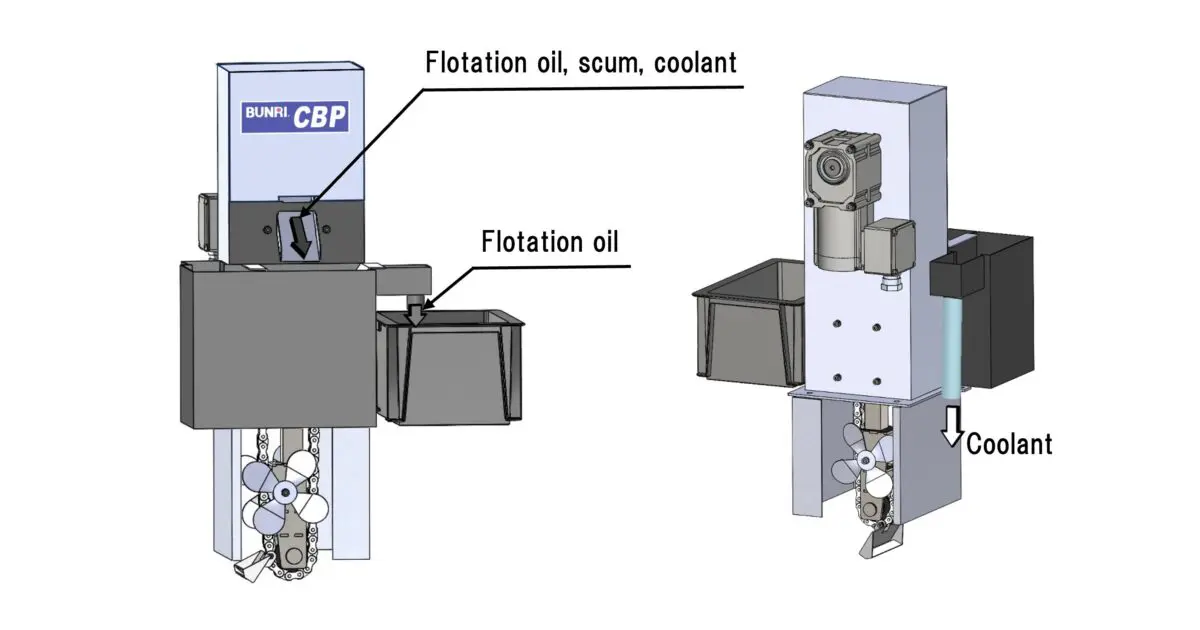

  2. The collected coolant, oil, and scum are discharged from the chute of the main body to the separation tank.

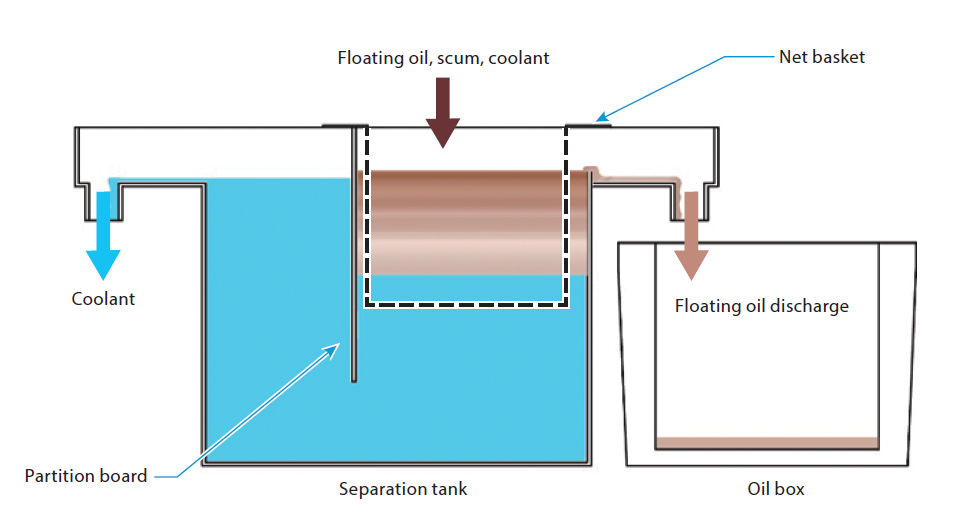

  3. Coolant is separated from scum/oil in the separation tank using the difference in specific gravity between the coolant and scum/oil. Then, the oil is discharged to the oil box, and the coolant is returned to the tank again.

Specifications

Dimensional drawing

Dimensional Drawing

Dimension table

Dimension Table

Filtration accuracy / Processing flow rate / Model code

Model Code

Product weight

* The product weight varies depending on the specifications, options, etc.

Paint color

CBP-50/CBP-100: Main body Medium metallic, Cover Dark gray metallic; CBS-50/CBS-100: Main body Medium metallic, Cover Dark gray metallic; CBS-250: Medium metallic

* For information about the specified color, please consult us.

Product Photo (Example)

Main body

Main body

Basket section

Basket section

Unit

Unit

* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.
* The specifications and dimensions are subject to change without notice.
* When the oil viscosity exceeds 50 mm 2/s, please consult us.
* For details on how to select the supply pump, please contact us.
* For information about custom products other than standard products, please consult us.
