Cyclone Filter Apollo S (APS)
Cyclone Filter Apollo S (APS) Thumbnail Cyclone Filter Apollo S (APS) Thumbnail Cyclone Filter Apollo S (APS) Thumbnail Cyclone Filter Apollo S (APS) Thumbnail Cyclone Filter Apollo S (APS) Thumbnail Cyclone Filter Apollo S (APS) Thumbnail Cyclone Filter Apollo S (APS) Thumbnail Cyclone Filter Apollo S (APS) Thumbnail Cyclone Filter Apollo S (APS) Thumbnail Cyclone Filter Apollo S (APS) Thumbnail Cyclone Filter Apollo S (APS) Thumbnail Cyclone Filter Apollo S (APS) Thumbnail Cyclone Filter Apollo S (APS) Thumbnail Cyclone Filter Apollo S (APS) Thumbnail Cyclone Filter Apollo S (APS) Thumbnail Cyclone Filter Apollo S (APS) Thumbnail Cyclone Filter Apollo S (APS) Thumbnail

Cyclone Filter Apollo S (APS)

Cyclone-type secondary processing unit that you can use extensively regardless of magnetic or non-magnetic materials.
Compatible with fine cutting chips and grinding sludge.
The defoaming mechanism supplies the non-foaming clean liquid.

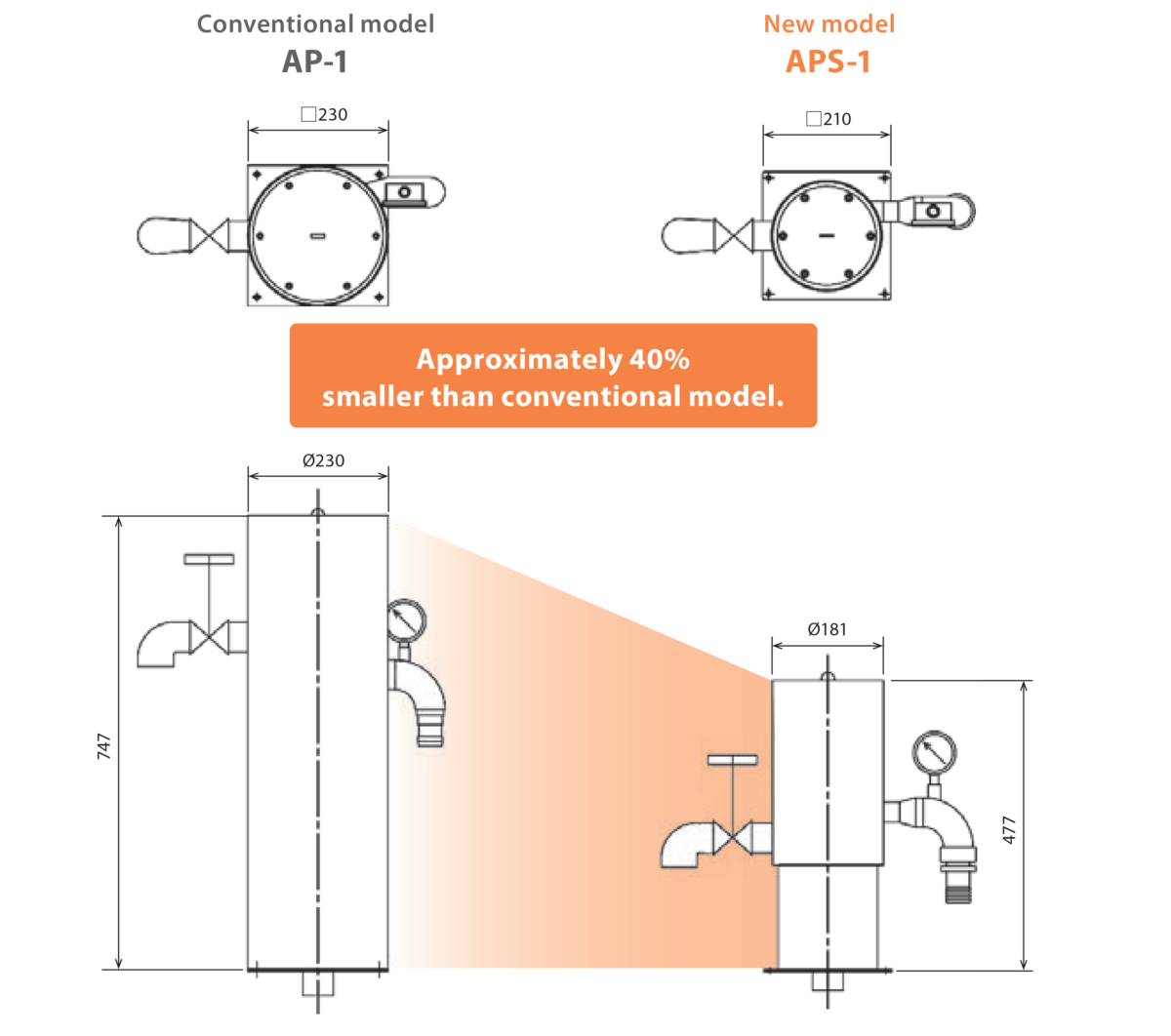

The main body has been downsized while maintaining the filtration accuracy and defoaming mechanism of the old type.

Features

Mechanism

Specifications

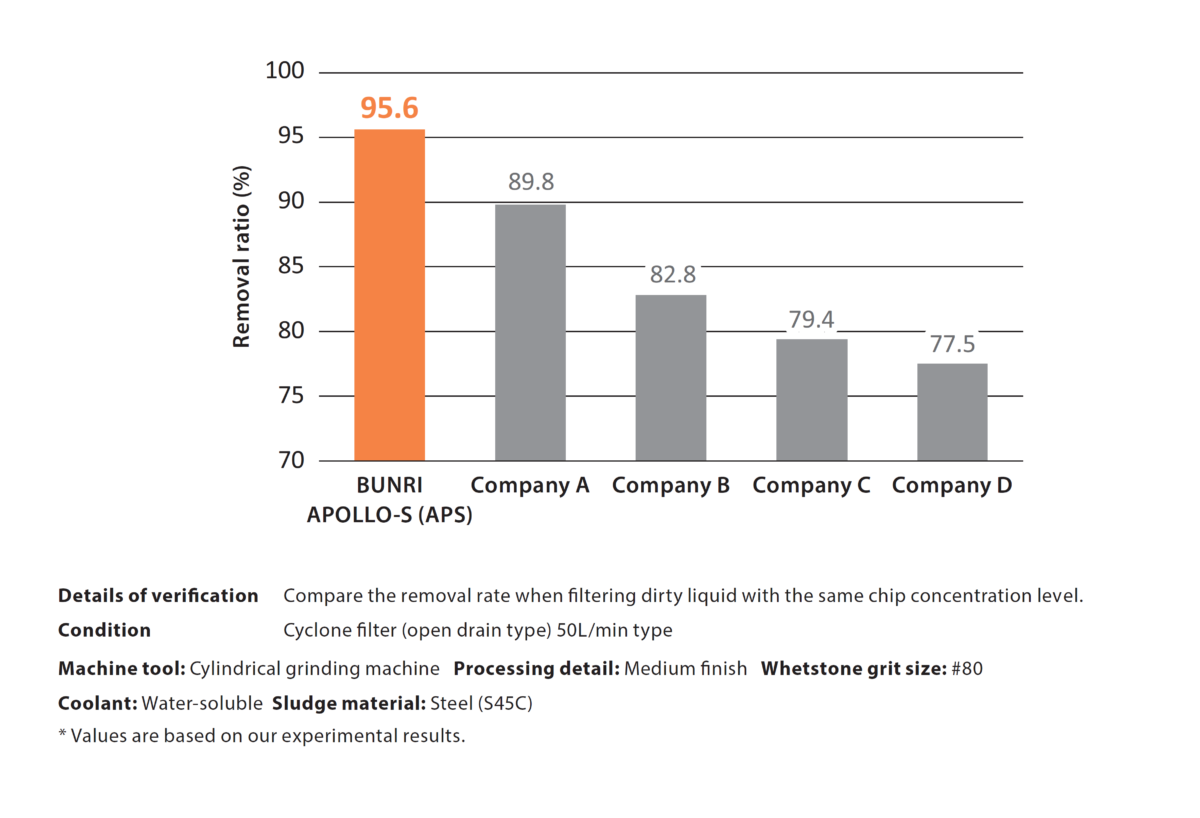

Filtration accuracy

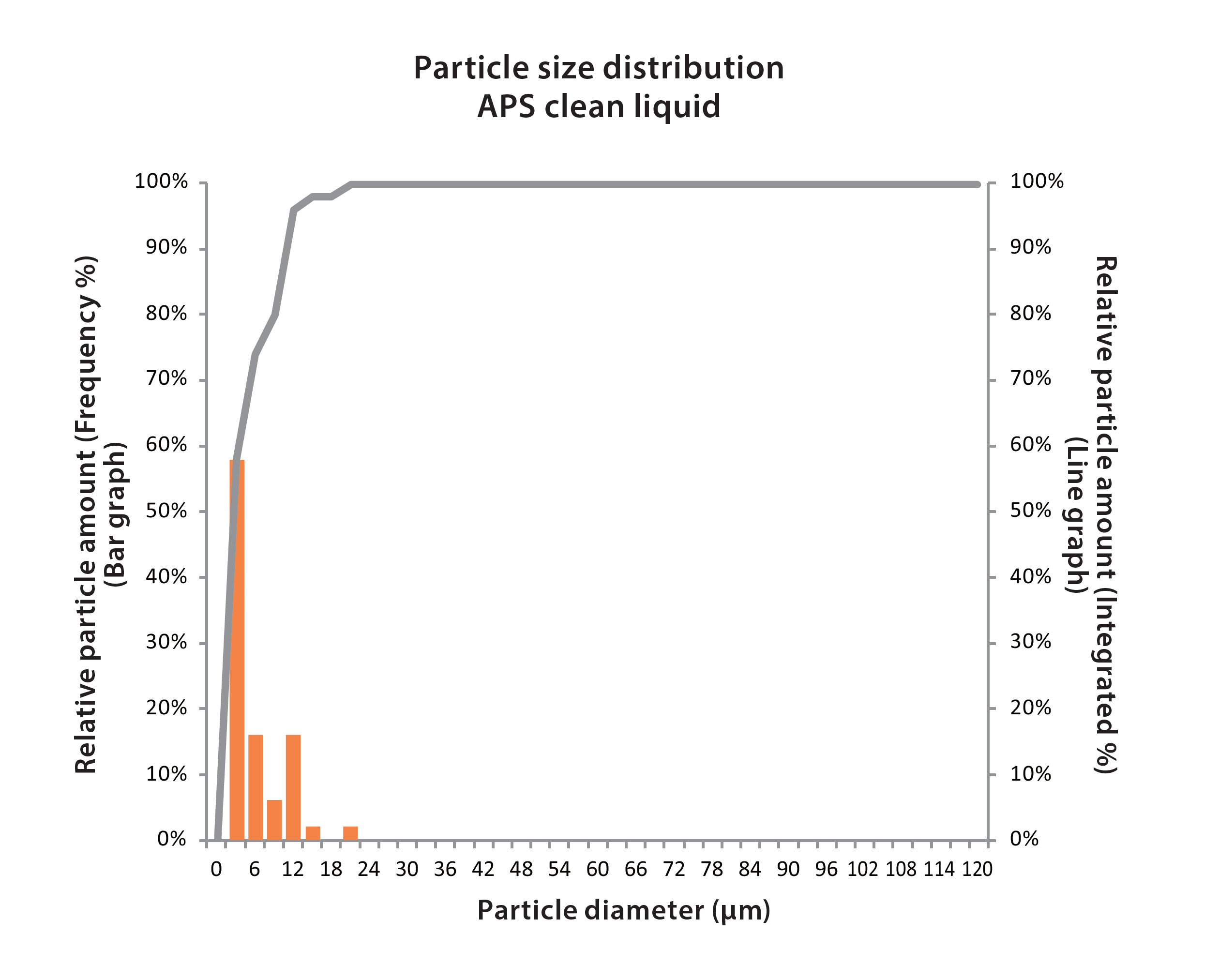

10 μm 90% or more

Processing flow rate

Product weight

Paint color

Medium metallic (Approximate color: Munsell No. N-6.7)

Model code

Model code image

Coolant

Water soluble Oil-based

Category

Magnetic material Non-magnetic material

Processing Details

Grinding Cutting

Work Material

FC/FCD Steel Aluminum Stainless Copper Titanium Carbide Mixed chips (aluminum + FC or sintered metal)

Chip Shape

Sandy

Grinding Chip Size

Ultrafine particles (5 μm to 10 μm) Fine particles (10 μm to 100 μm) Coarse particles (0.1 mm to 0.5 mm)

Machine Tool

Grinding machine Tool grinding machine Machining center NC lathes Induction hardening machine Cutting specialized machine Washing machine

Mechanism

Mechanism 1
Mechanism 2

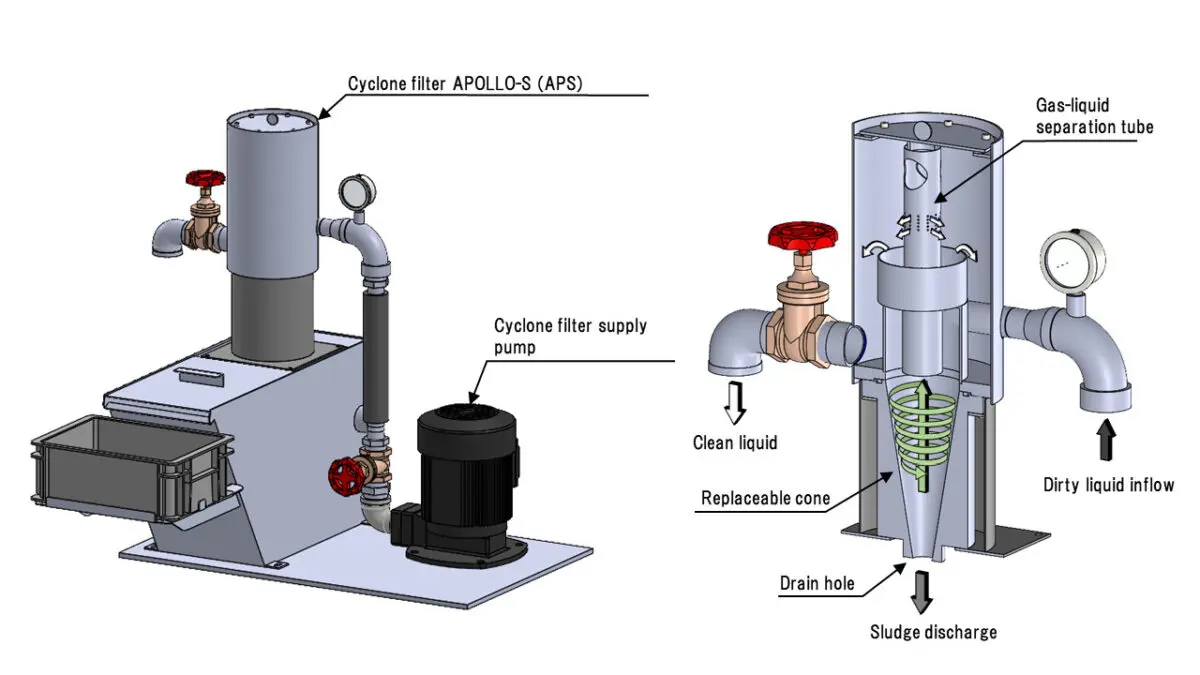

  1. The dirty liquid flows into the main body due to the action of the APOLLO supply pump.
  2. The dirty liquid is rotated at high speed inside the main body, and chips and sludge are separated by centrifugal force.
  3. The separated chips and sludge are discharged from the drain port at the bottom of the main body.
  4. The foam is taken out of the clean liquid when it passes through the gas-liquid separation pipe and sent to the outside of the main body.

Specifications

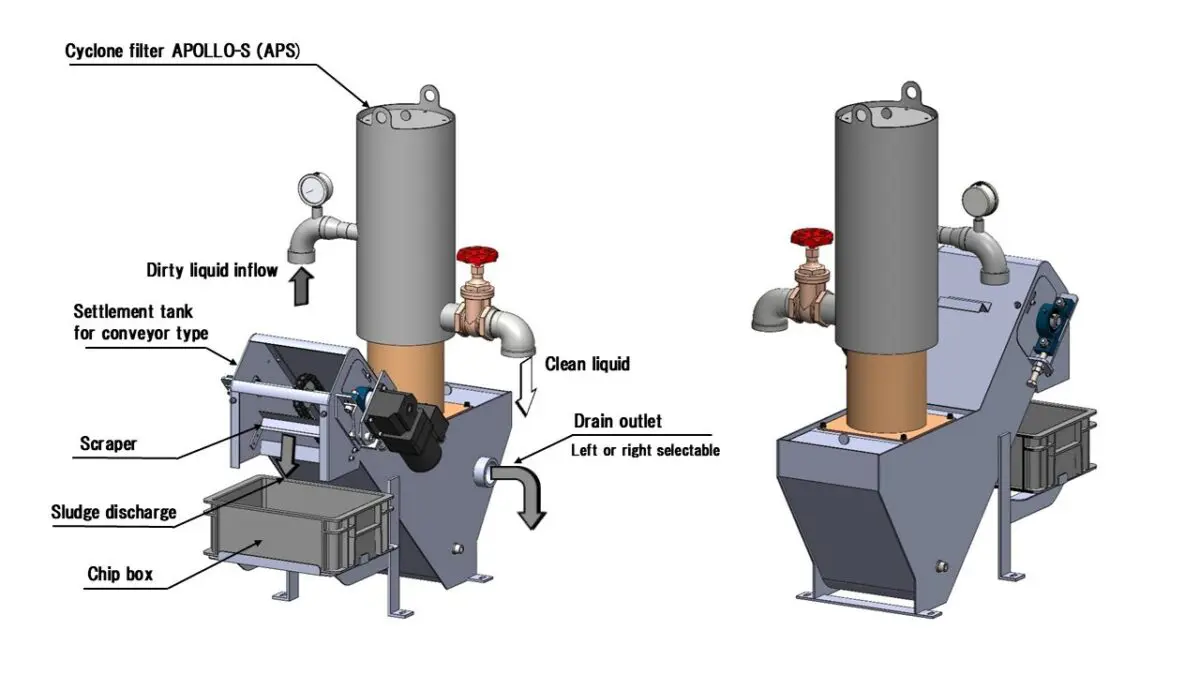

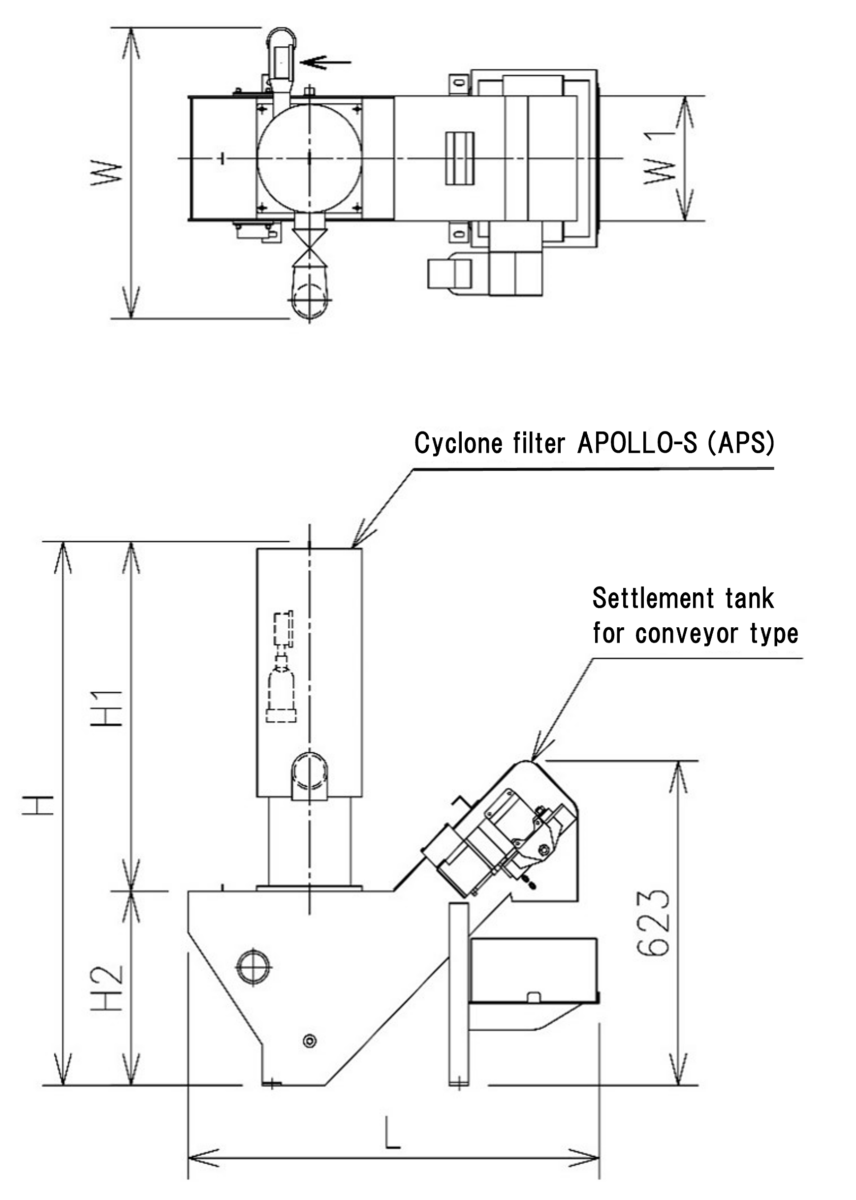

Dimensional drawing

Dimensional Drawing

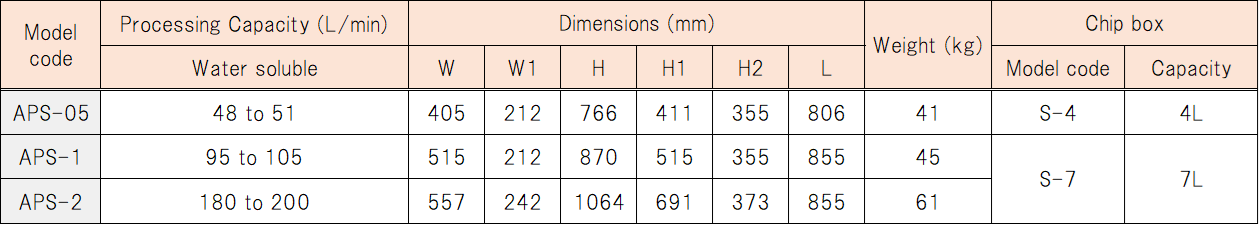

Dimension table

Dimension Table

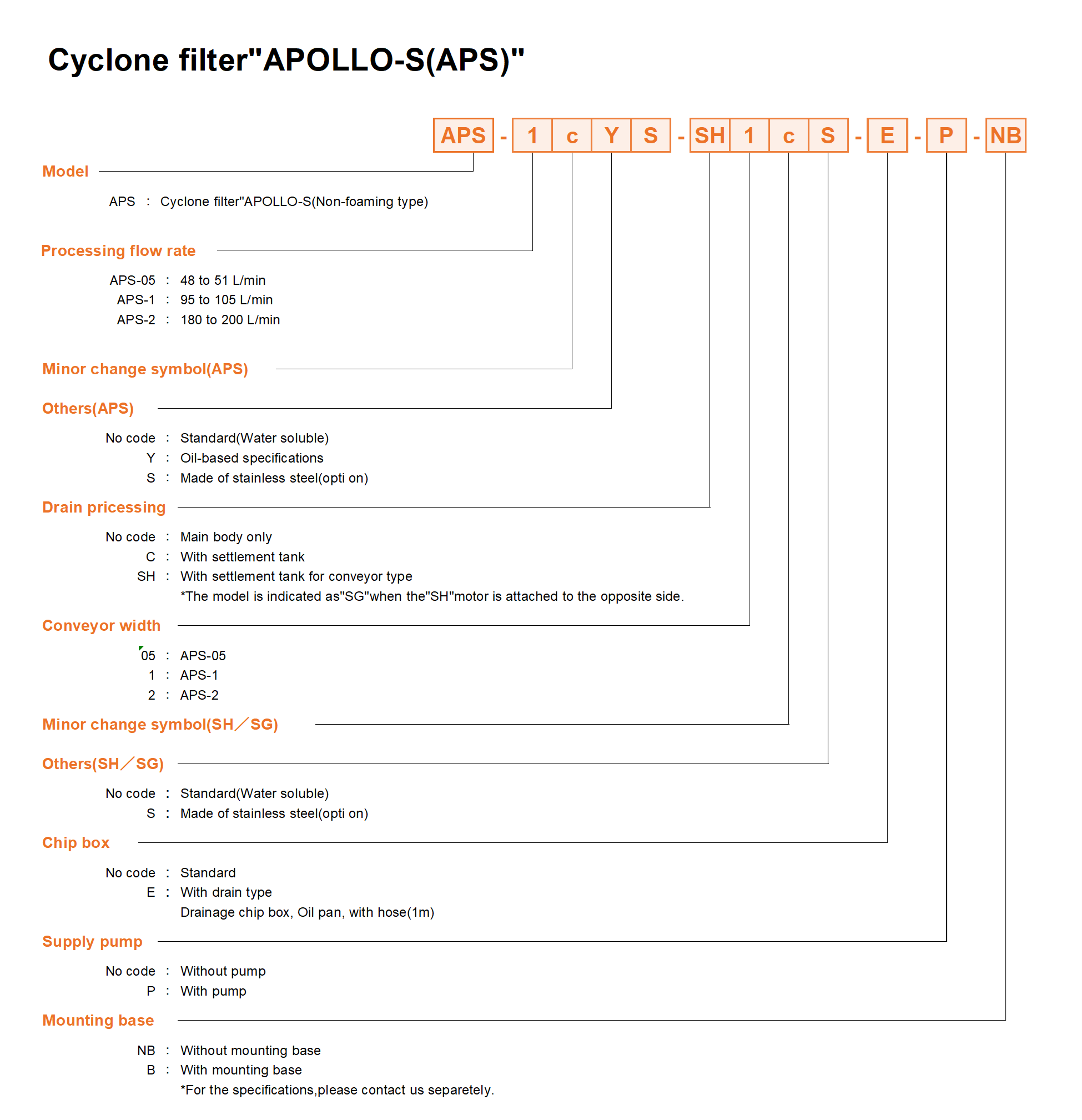

Filtration accuracy / Processing flow rate / Model code

Model Code

Product weight

* The product weight varies depending on the specifications, options, etc.

Paint color

Medium metallic (Approximate color: Munsell No. N-6.7)

* For information about the specified color, please consult us.

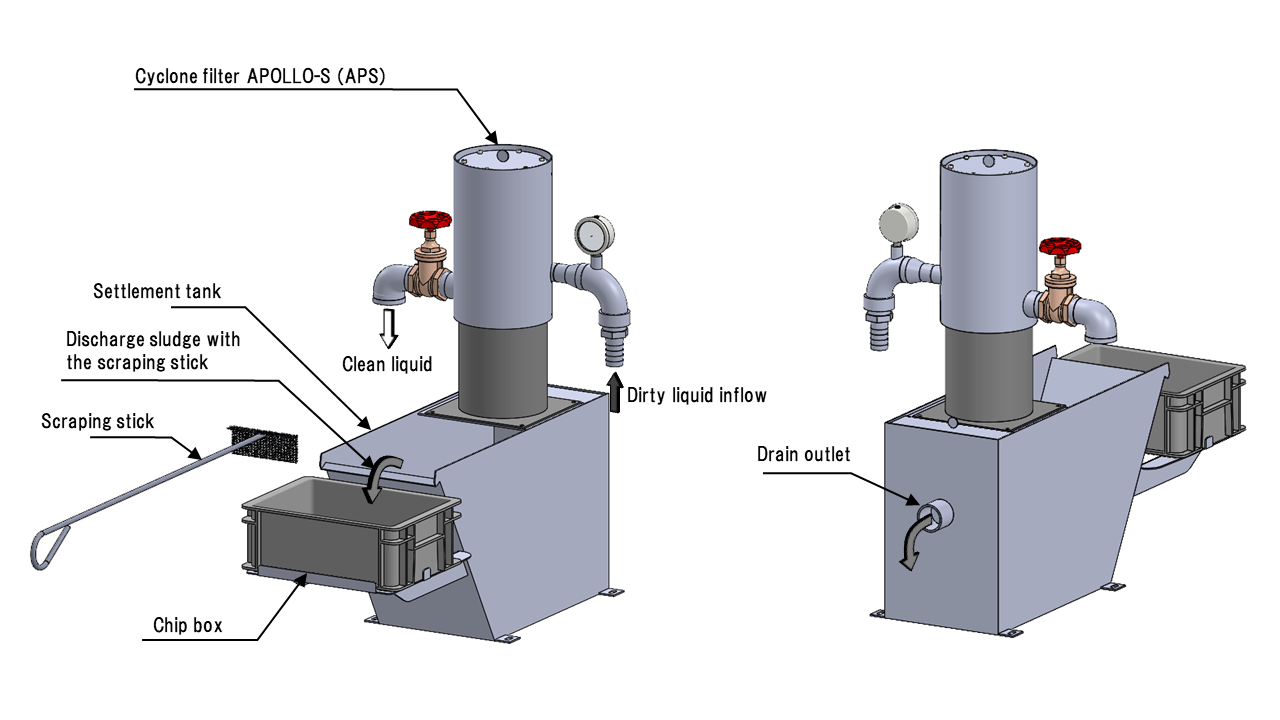

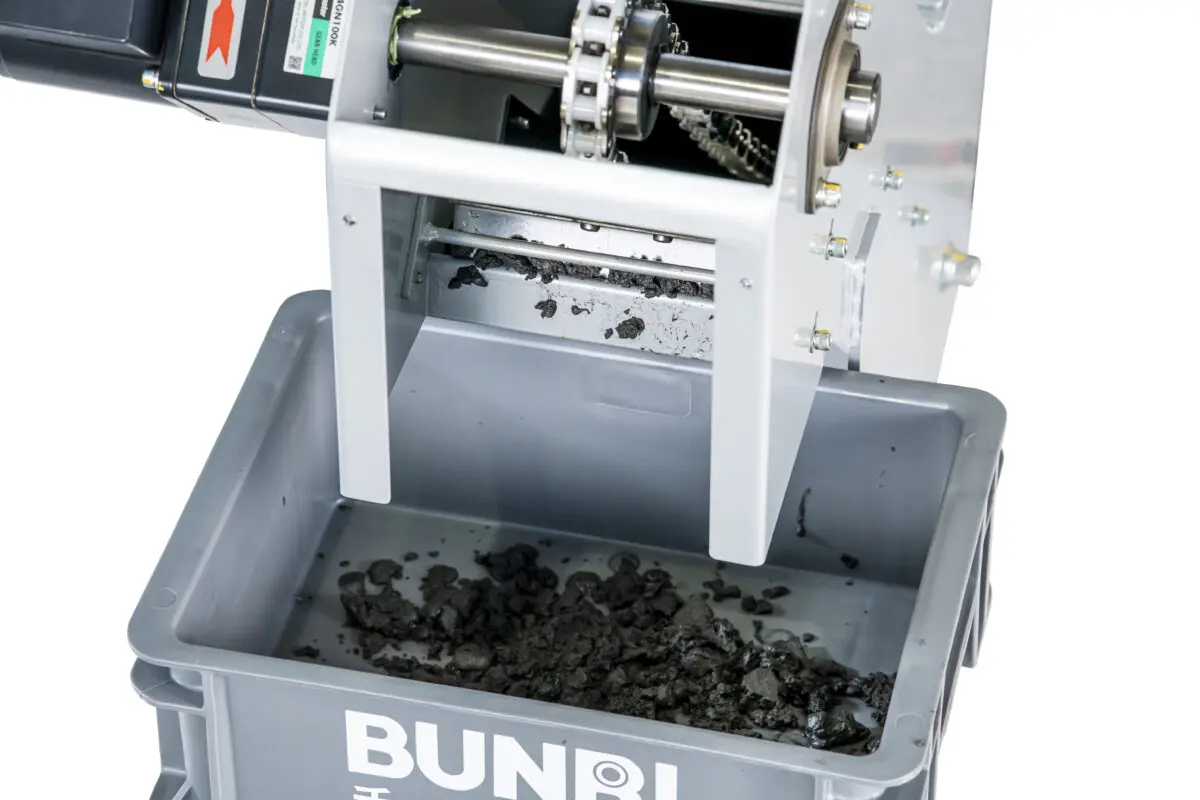

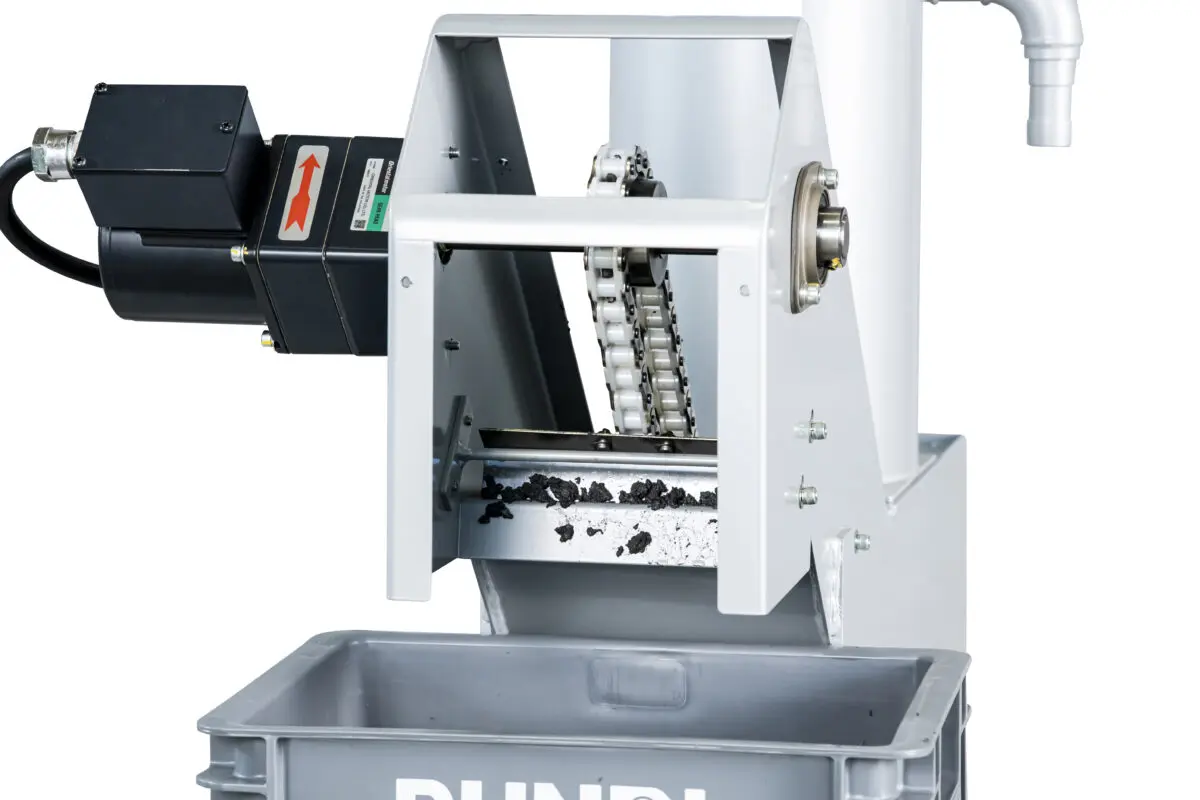

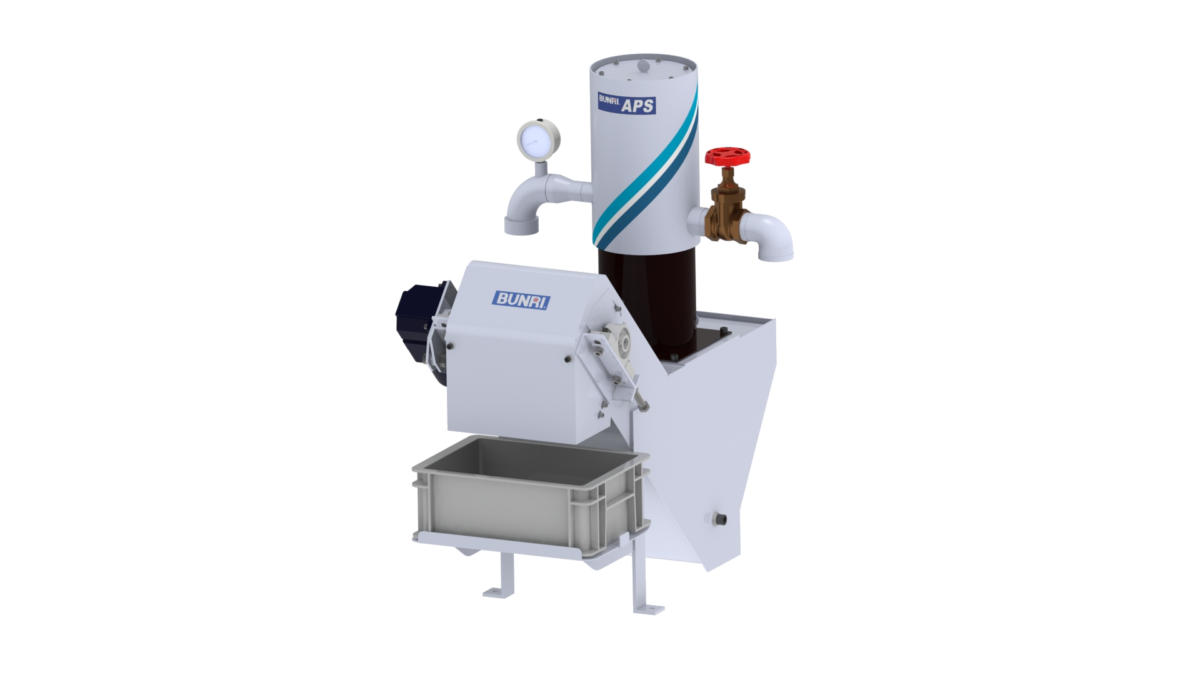

Product Photo (Example)

Main body

Main body

Basket section

Basket section

Unit

Unit

* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.
* The specifications and dimensions are subject to change without notice.
* When the oil viscosity exceeds 50 mm 2/s, please consult us.
* For details on how to select the supply pump, please contact us.
* For information about custom products other than standard products, please consult us.
