Drastic Cleaning Reduction for Cutting Coolant System SLC

Cutting chip processing system that combines the punching filter and a new cyclone filter in a unique configuration.
The cyclone filter filters cutting chips, so clean liquid can always be supplied to the machine.

Features

Mechanism

Specifications

Filtration accuracy

10μm 90％ or more

Processing flow rate

Product weight

Paint color

Silver gray (Munsell No. N-8.0)

Model code

Model code image

Coolant

Water soluble

Category

Non-Magnetic material

Processing Details

Cutting

Work Material

Aluminum Stainless Titanium Mixed chips (aluminum + FC or sintered metal)

Chip Shape

Granular Small curl-shaped (50 mm or less) Small curl-shaped (51 mm to 100 mm)

Machine Tool

Machining center Cutting specialized machine Gear cutting machine

Mechanism

Mechanism 1
Mechanism 2

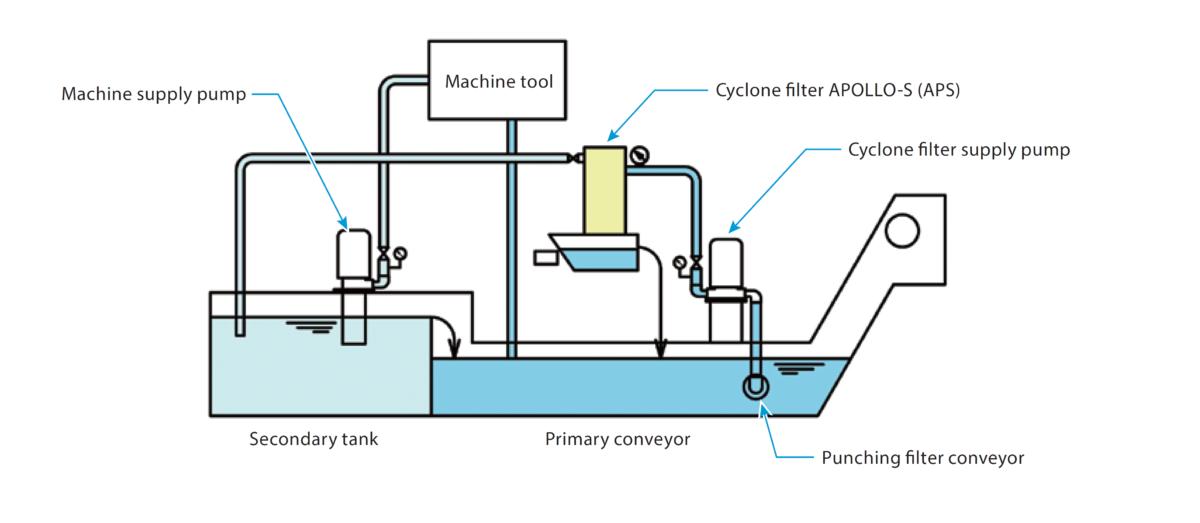

  1. The dirty liquid flows onto the conveyor.
  2. The dirty liquid is supplied to the cyclone filter (AP) via the punching filter that is rotated by the coolant pump.
  3. The primary clean liquid that was primarily filtered when passing through the punching filter is secondarily filtered by the cyclone filter (AP).
  4. The secondary clean liquid flows into the tank and is supplied to the machine by the pump.
  5. Chips captured in the punching filter are scraped off by the scraping board and settle on the bottom of the conveyor.
  6. Chips that have settled on the bottom of the conveyor are conveyed by the scraper.
  7. Chips are temporarily stored in the conveyor outlet, drained, and then discharged.

Specifications

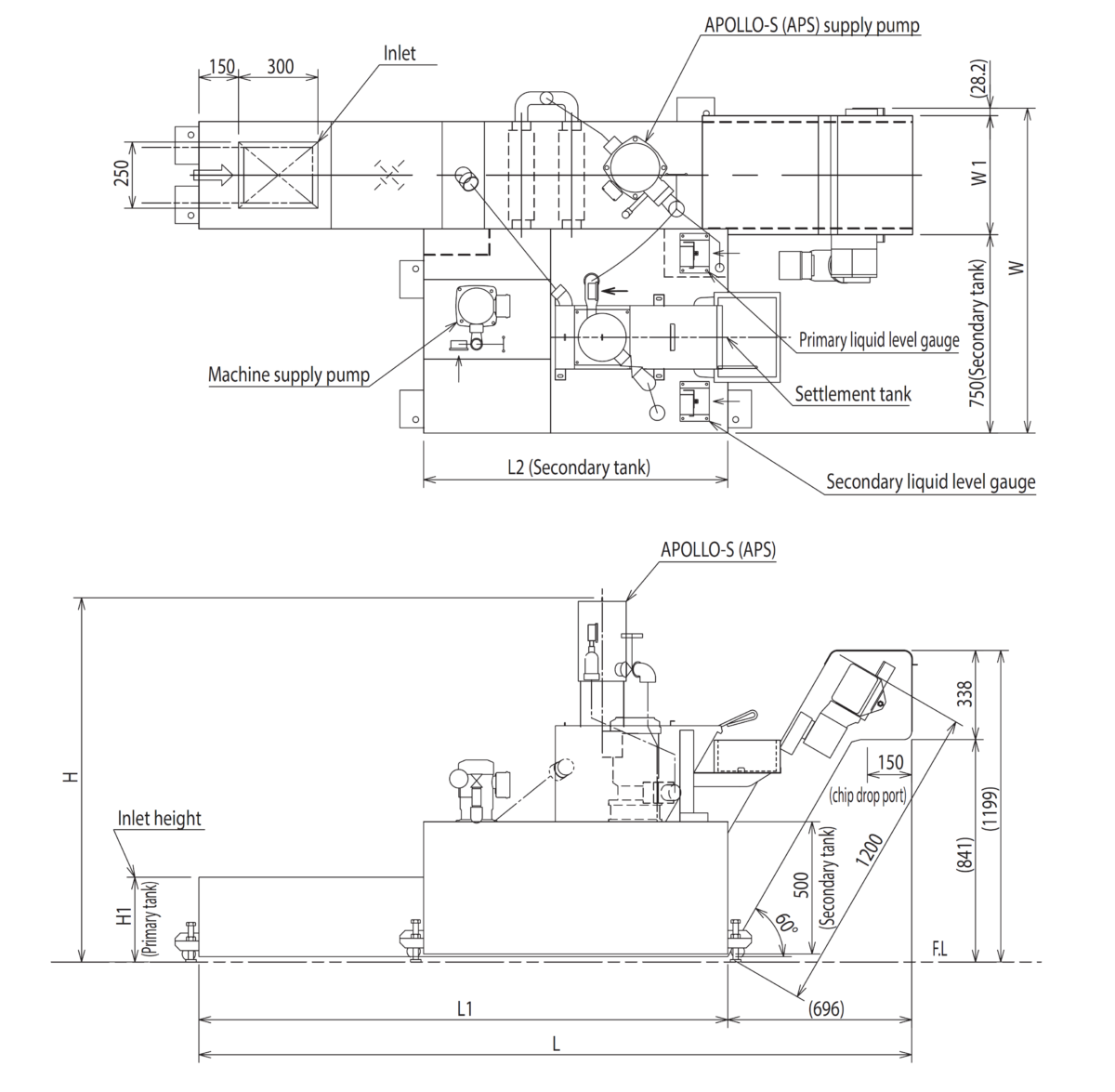

Dimensional drawing

Dimensional Drawing

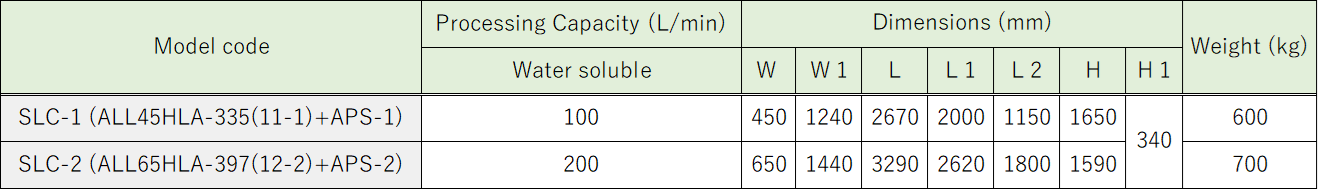

Dimension table

Dimension Table

Filtration accuracy / Processing flow rate / Model code

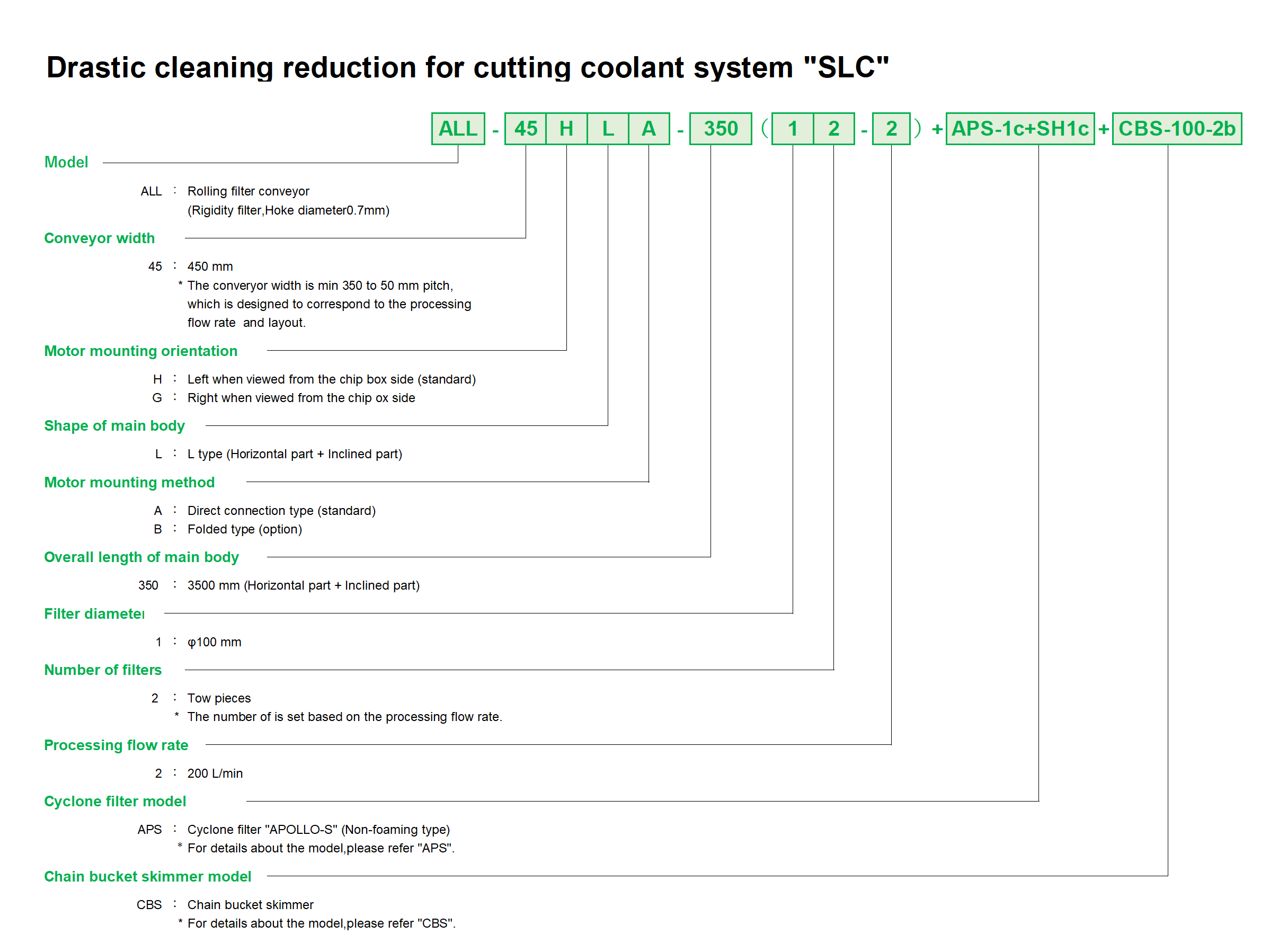

Model Code

* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.\n* The specifications and dimensions are subject to change without notice.\n* For the oil-based specifications, please consult us.\n* For information about custom products other than standard products, please consult us.

Product weight

* The product weight varies depending on the specifications, options, etc.

Paint color

Silver gray (Munsell No. N-8.0)

* For information about the specified color, please consult us.

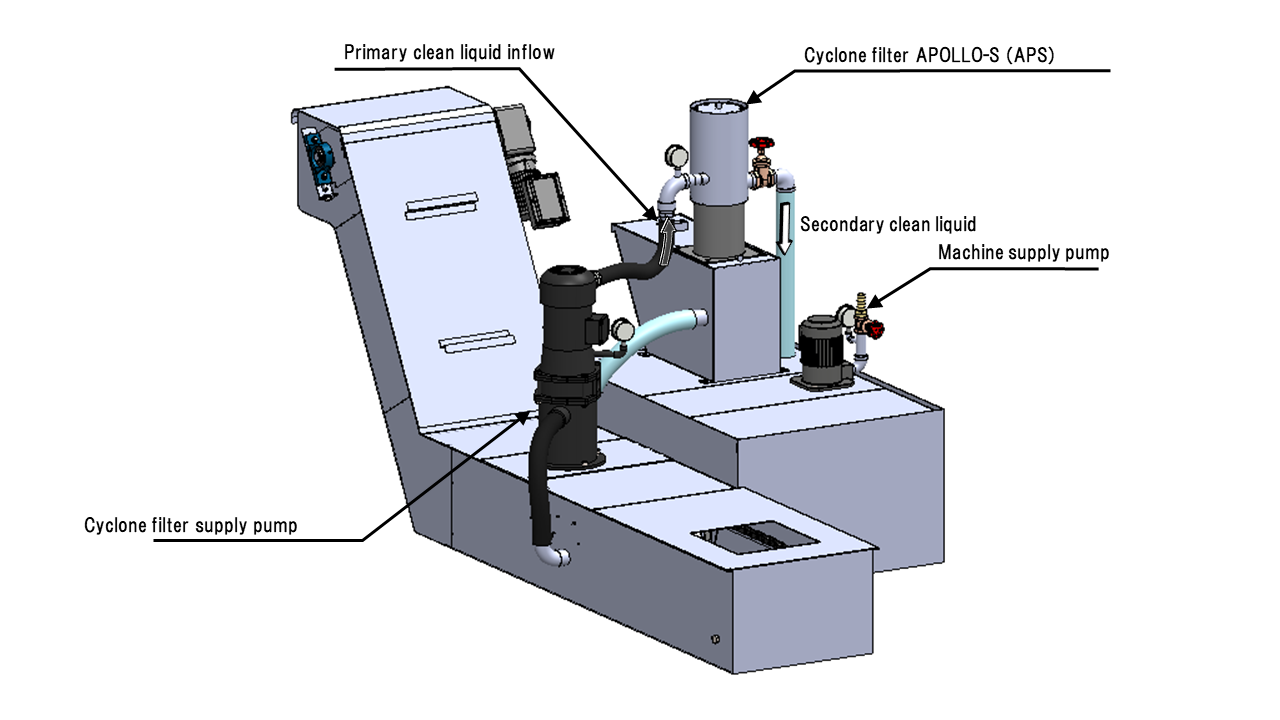

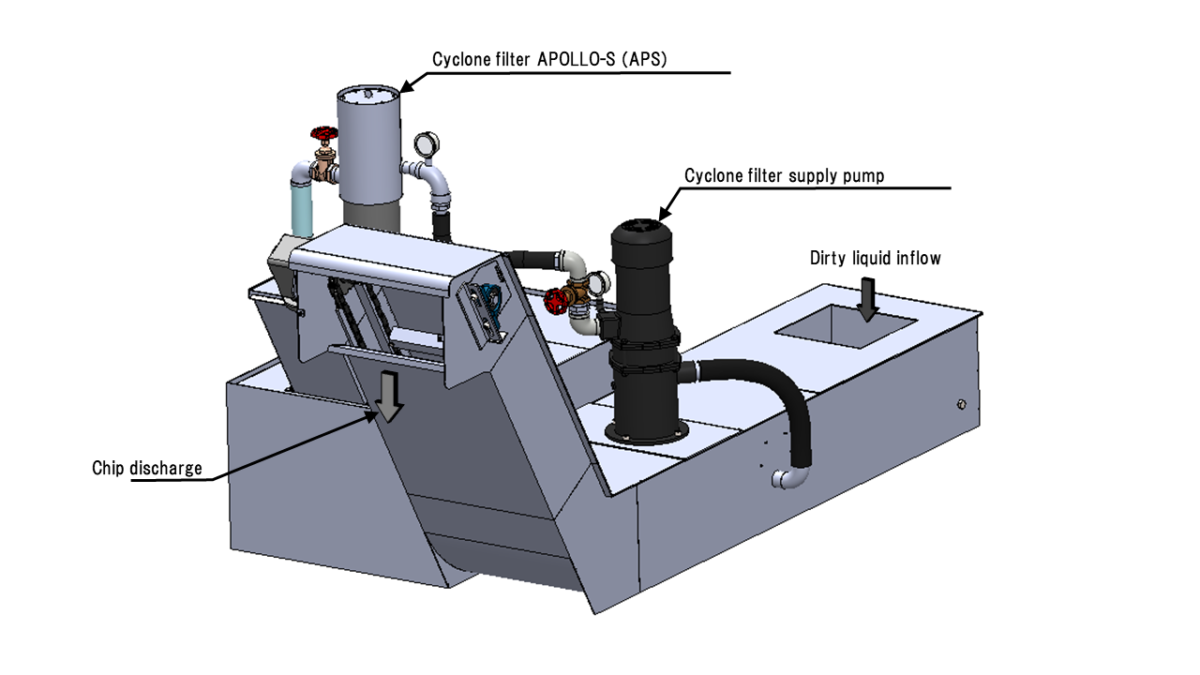

Product Photo (Example)

Main body

Main body

Basket section

Basket section

Unit

Unit

* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.
* The specifications and dimensions are subject to change without notice.
* When the oil viscosity exceeds 50 mm 2/s, please consult us.
* For details on how to select the supply pump, please contact us.
* For information about custom products other than standard products, please consult us.
