Drastic Cleaning Reduction for Grinding Coolant System ALG
Drastic Cleaning Reduction for Grinding Coolant System ALG Thumbnail Drastic Cleaning Reduction for Grinding Coolant System ALG Thumbnail Drastic Cleaning Reduction for Grinding Coolant System ALG Thumbnail Drastic Cleaning Reduction for Grinding Coolant System ALG Thumbnail Drastic Cleaning Reduction for Grinding Coolant System ALG Thumbnail Drastic Cleaning Reduction for Grinding Coolant System ALG Thumbnail Drastic Cleaning Reduction for Grinding Coolant System ALG Thumbnail Drastic Cleaning Reduction for Grinding Coolant System ALG Thumbnail Drastic Cleaning Reduction for Grinding Coolant System ALG Thumbnail Drastic Cleaning Reduction for Grinding Coolant System ALG Thumbnail

Drastic Cleaning Reduction for Grinding Coolant System ALG

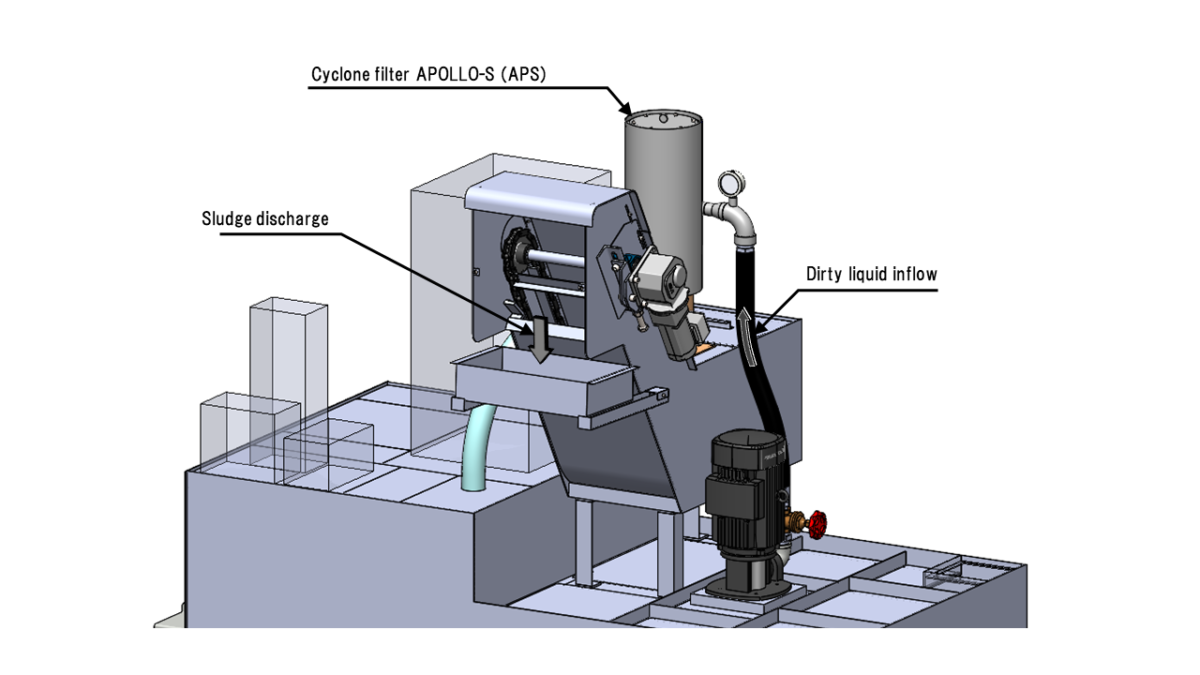

Grinding system with a new cyclone filter mounted on the uniquely designed tank.
Optimum for grinding sludge processing of non-magnetic materials.

Features

Mechanism

Specifications

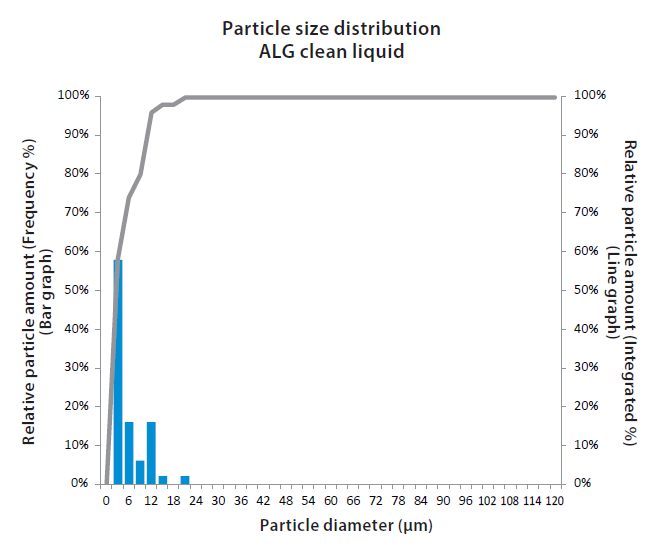

Filtration accuracy

10 μm 90% or more

Processing flow rate

Product weight

Paint color

Silver gray (Munsell No. N-8.0)

Model code

Model code image

Coolant

Water soluble

Category

Non-Magnetic material

Processing Details

Grinding

Work Material

Aluminum Stainless Copper Titanium Mixed chips (aluminum + FC or sintered metal)

Chip Shape

Sandy

Grinding Chip Size

Ultrafine particles (5 μm to 10 μm) Fine particles (10 μm to 100 μm) Coarse particles (0.1 mm to 0.5 mm)

Machine Tool

Grinding machine

Mechanism

Mechanism 1

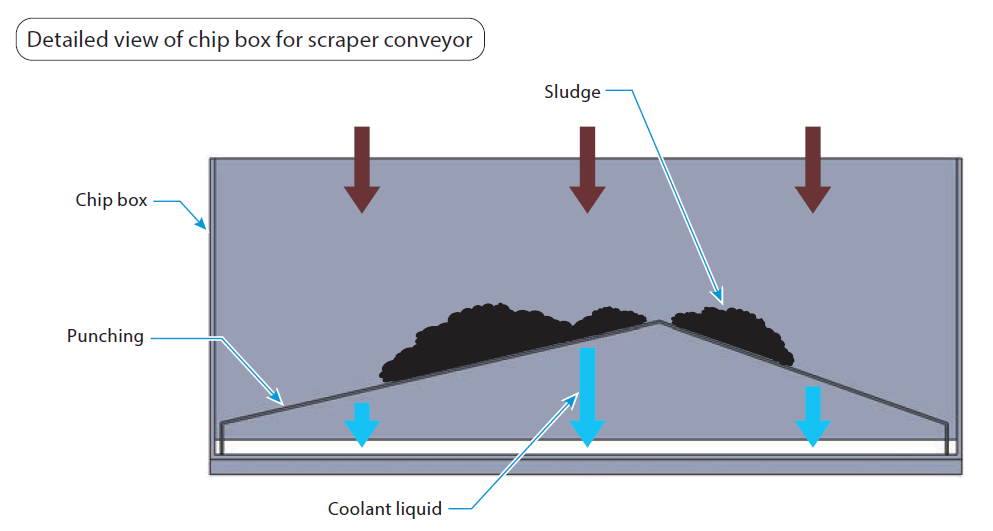

Mechanism 2

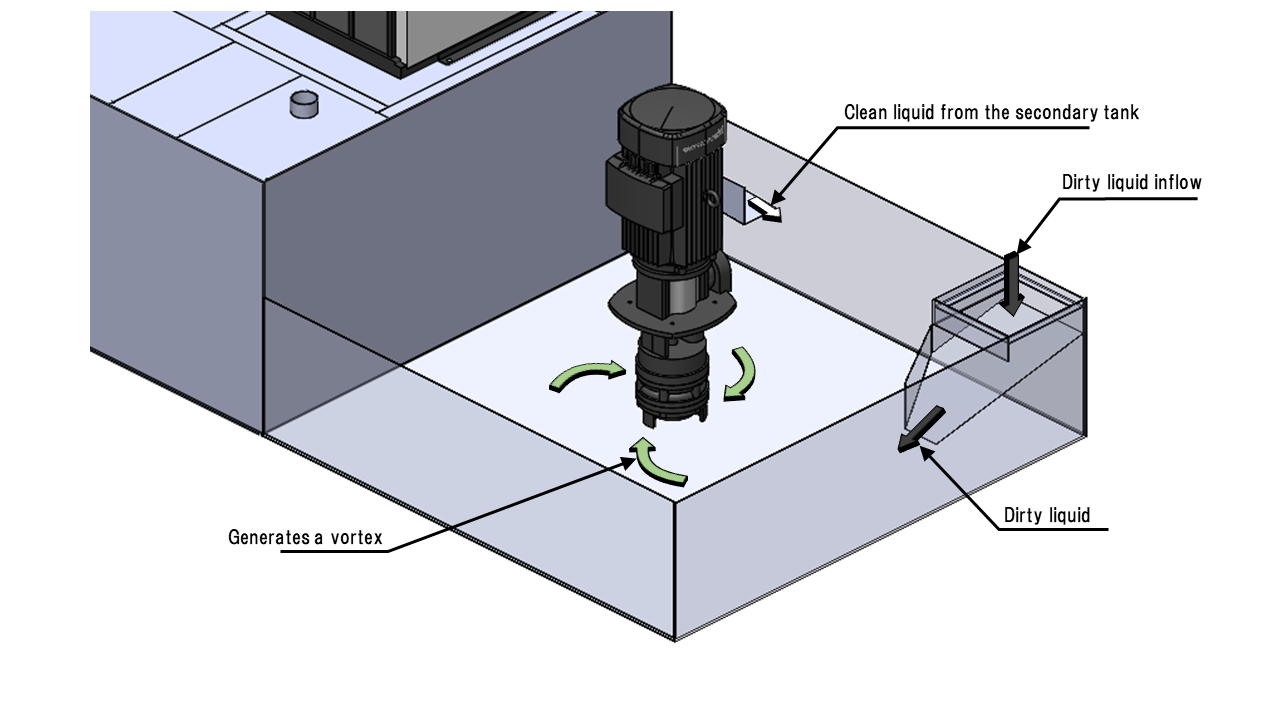

  1. The dirty liquid flows into the primary tank to generate a vortex. With its centripetal force, sludge and abrasive grains accumulate in the center of the tank.
  2. The supply pump in the center of the tank pumps the accumulated sludge and abrasive grains.
  3. The dirty liquid is filtered by the cyclone filter.
  4. Sludge is discharged from the drain section of the cyclone filter through the scraper conveyor.
  5. After the clean liquid flows into the secondary tank, it is supplied to the machine by the pump.

Specifications

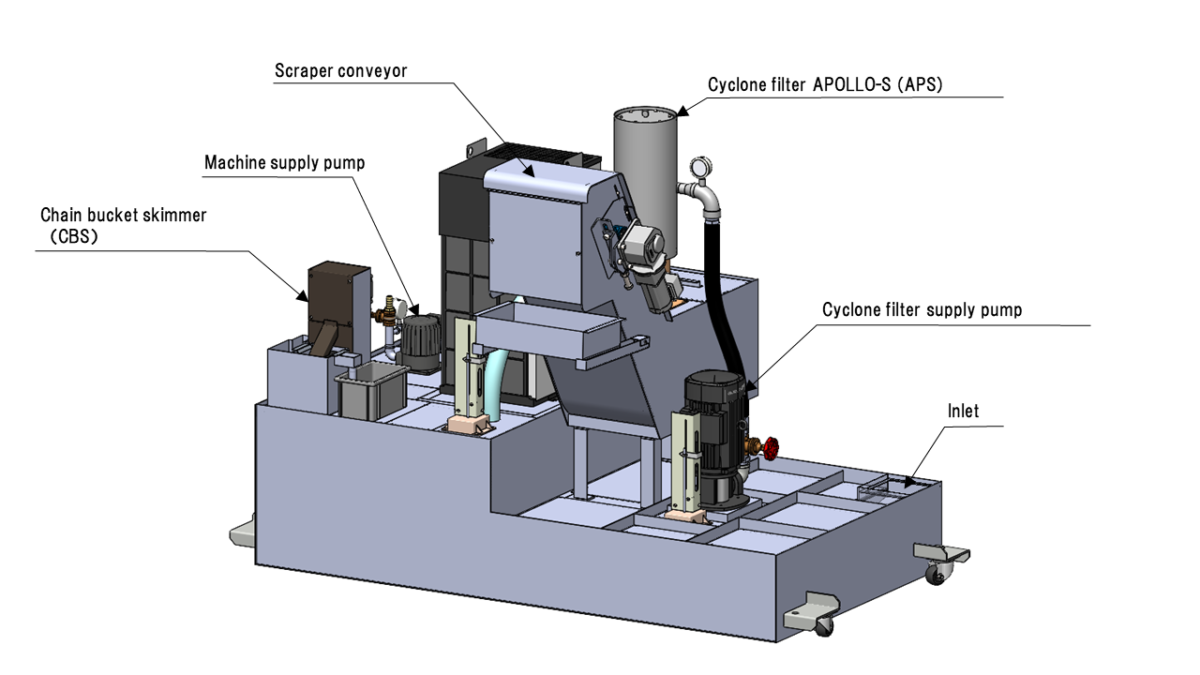

Dimensional drawing

Dimensional Drawing

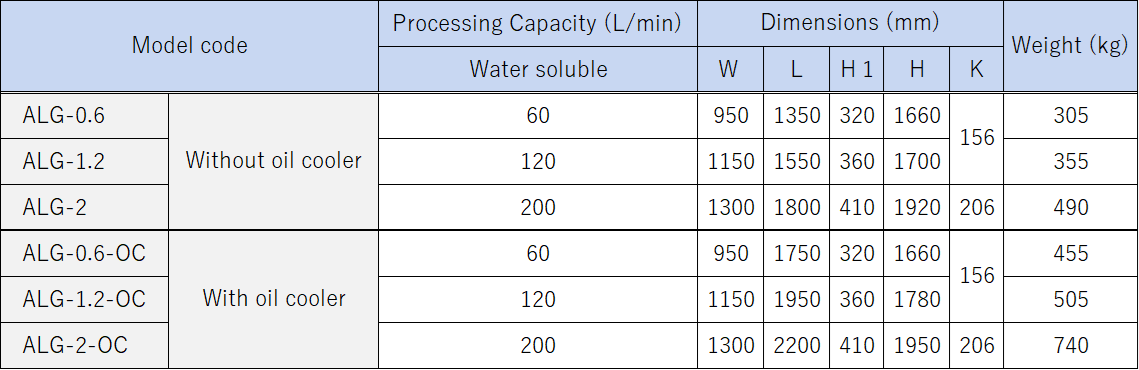

Dimension table

Dimension Table

Filtration accuracy / Processing flow rate / Model code

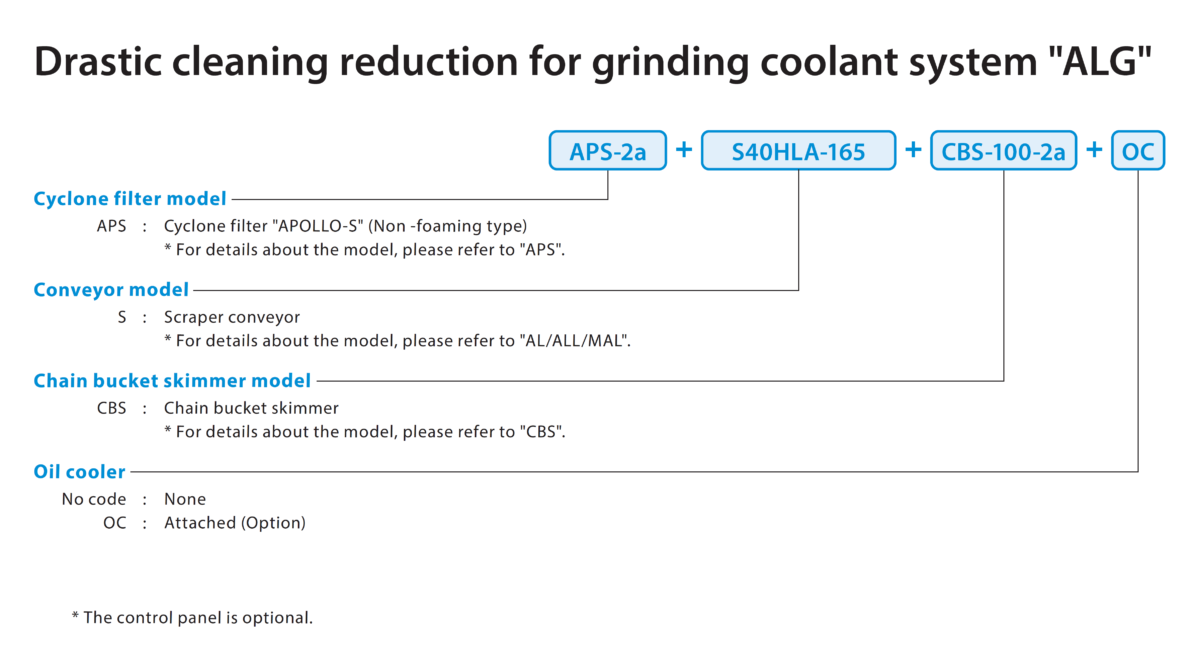

Model Code

* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.\n* The specifications and dimensions are subject to change without notice.\n* For the oil-based specifications, please consult us.\n* For information about custom products other than standard products, please consult us.

Product weight

* The product weight varies depending on the specifications, options, etc.

Paint color

Silver gray (Munsell No. N-8.0)

* For information about the specified color, please consult us.

Product Photo (Example)

Main body

Main body

Basket section

Basket section

Unit

Unit

* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.
* The specifications and dimensions are subject to change without notice.
* When the oil viscosity exceeds 50 mm 2/s, please consult us.
* For details on how to select the supply pump, please contact us.
* For information about custom products other than standard products, please consult us.
