Drastic Cleaning Reduction for Grinding Coolant System RTG

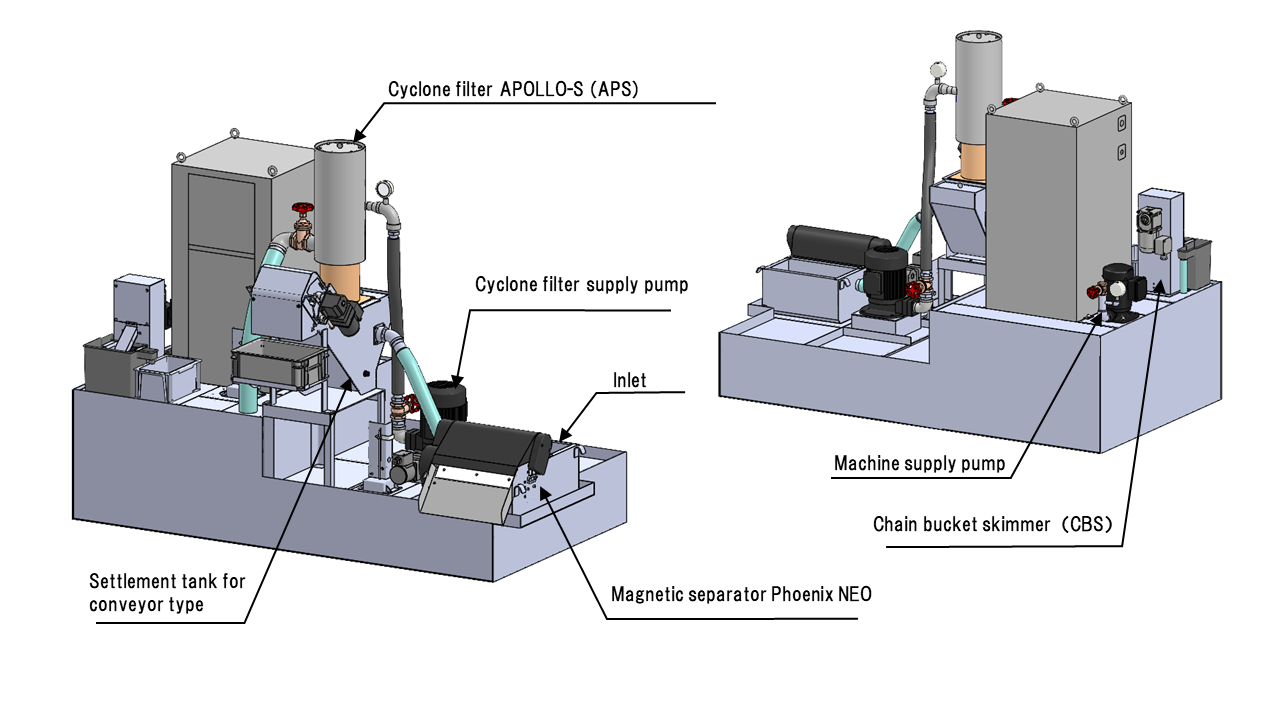

Mechanism

Specifications

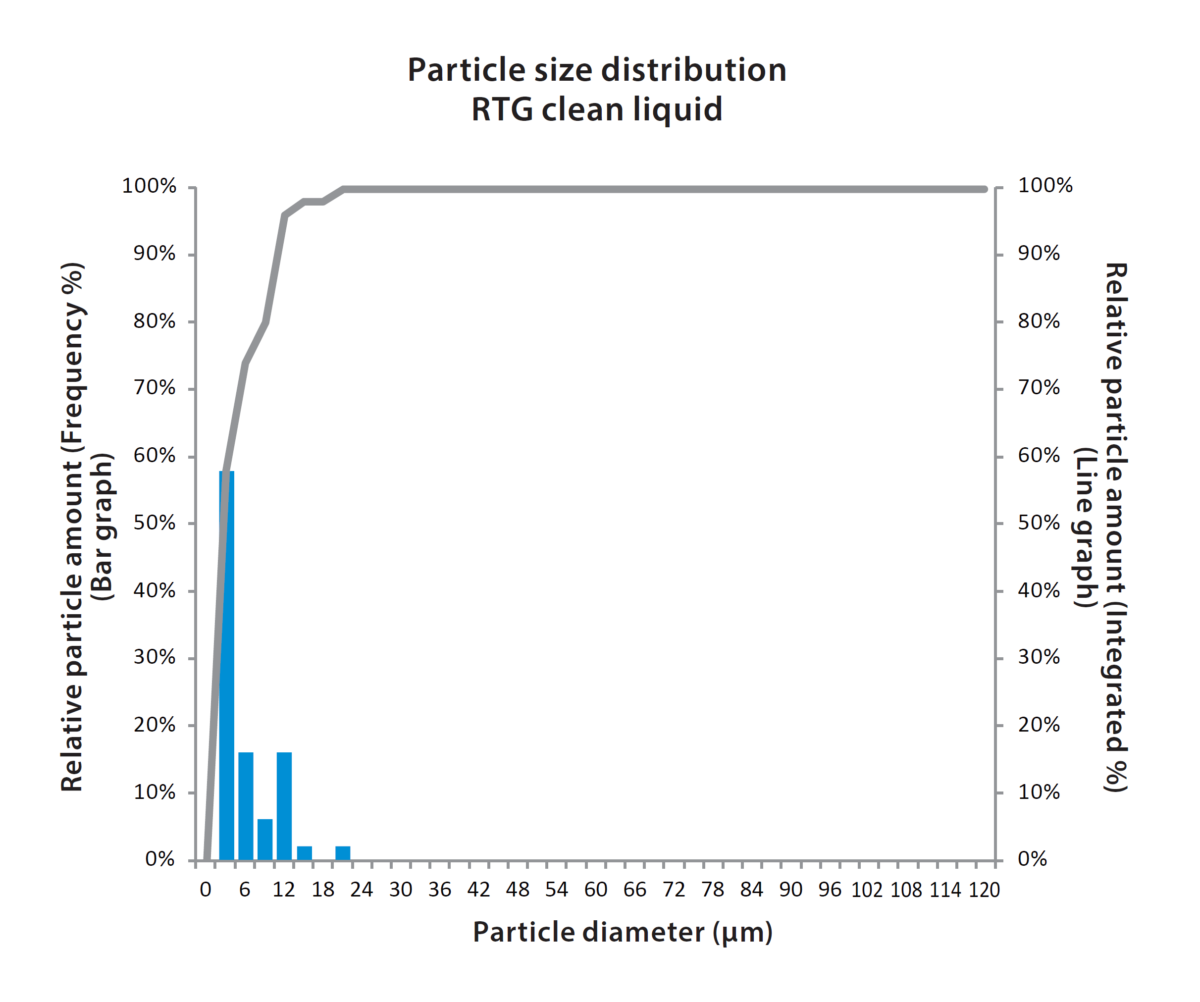

Filtration accuracy

10 μm 90% or more

Processing flow rate

• 60 L/min 120 L/min 200 L/min

Product weight

• Without oil cooler:
• 60 L/min　350 kg
• 120 L/min　400 kg
• 200 L/min　550 kg
• With oil cooler:
• 60 L/min　450 kg
• 120 L/min　500 kg
• 200 L/min　650 kg

Paint color

Silver gray (Munsell No. N-8.0)

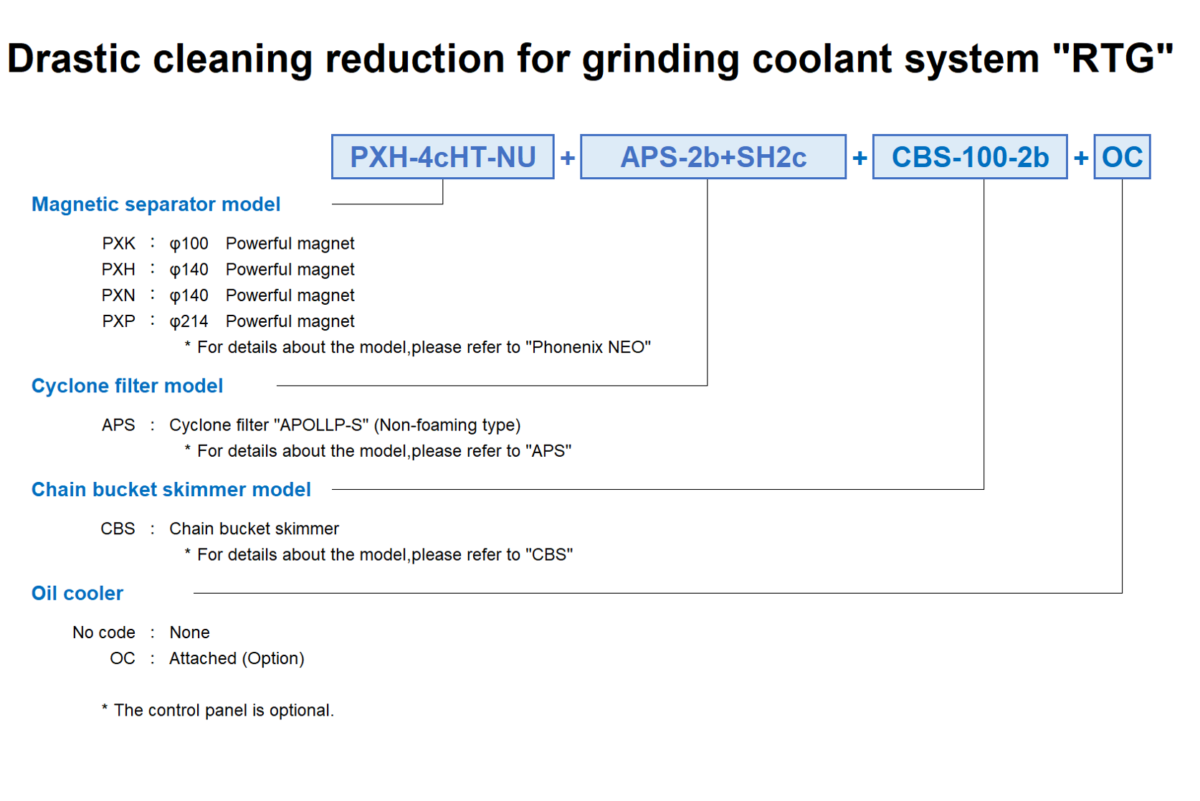

Model code

* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.
* The specifications and dimensions are subject to change without notice.
* For the oil-based specifications, please consult us.
* For information about custom products other than standard products, please consult us.
* The product weight varies depending on the specifications, options, etc.
* For information about the specified color, please consult us.

Mechanism

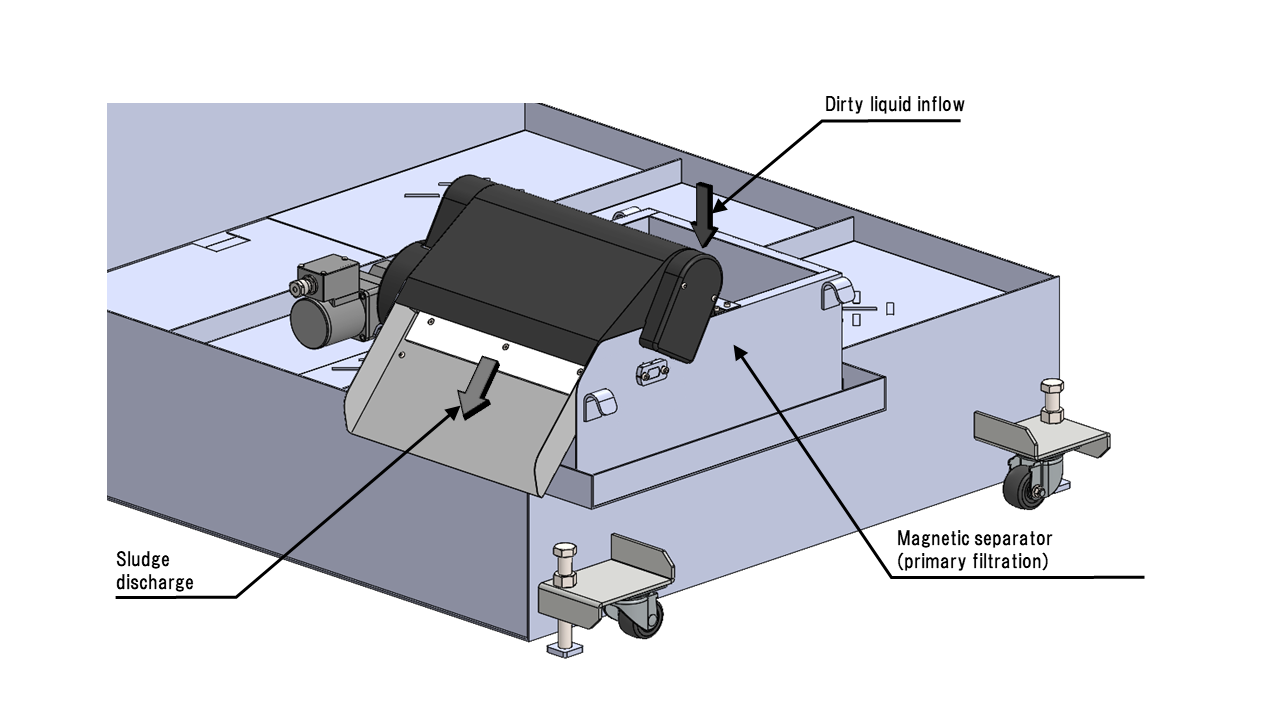

1. The dirty liquid is primarily filtered by first passing through the magnetic separator.

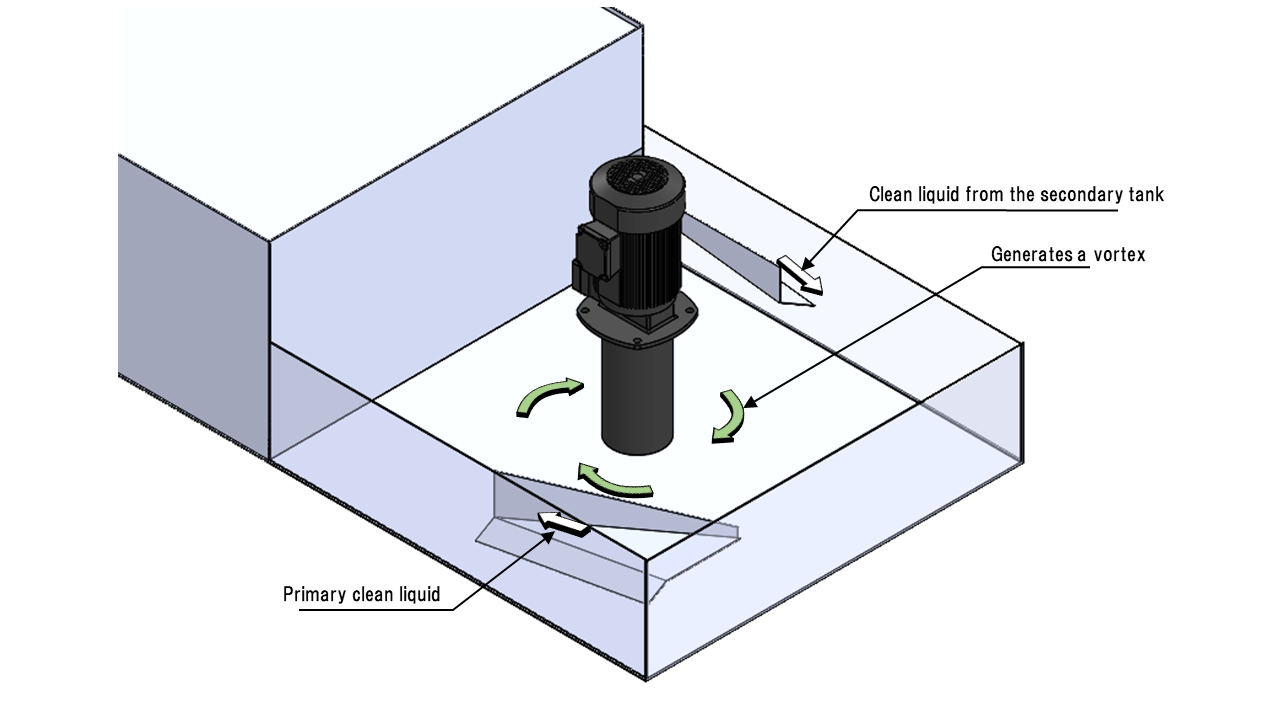

2. The primarily filtered clean liquid flows into the primary tank to generate a vortex. With its centripetal force, sludge and abrasive grains accumulate in the center of the tank.
3. The supply pump in the center of the tank pumps the accumulated sludge and abrasive grains.

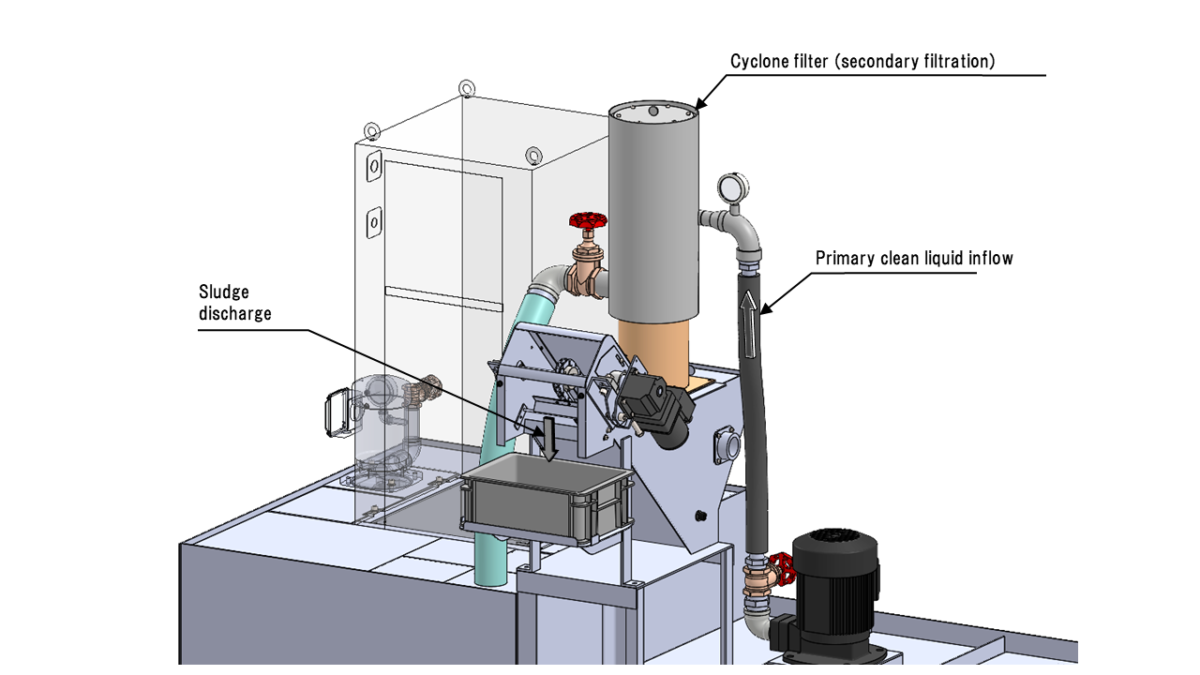

4. The primarily filtered clean liquid is secondarily filtered by the cyclone filter.

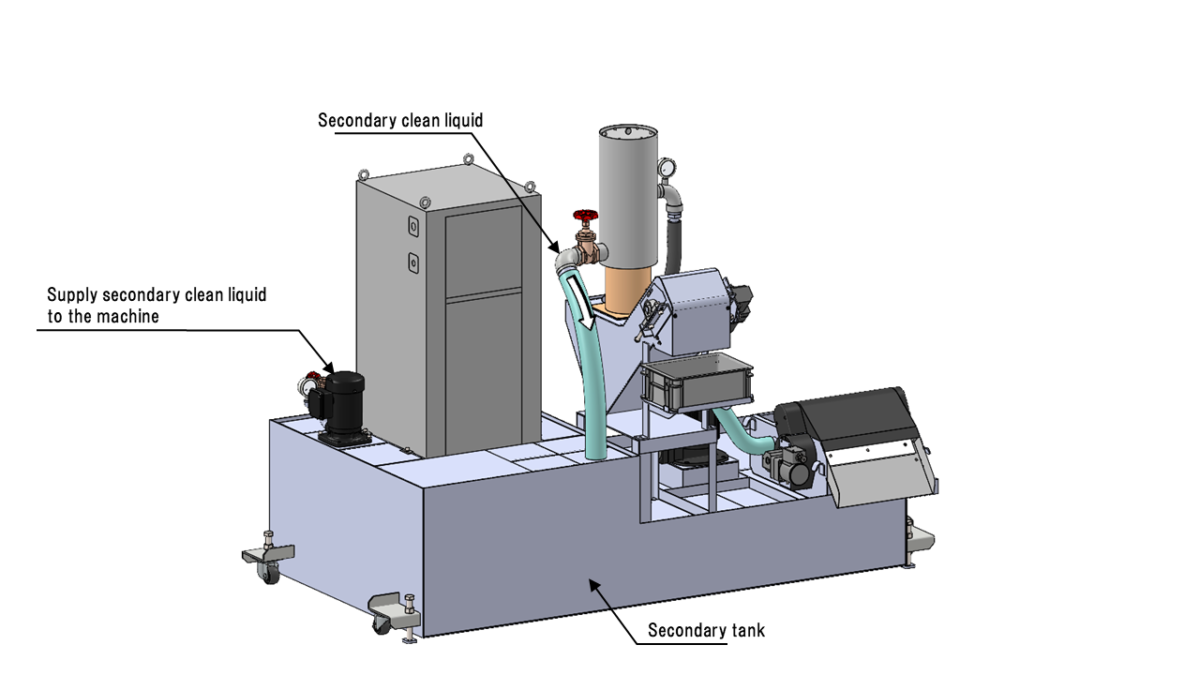

5. The secondarily filtered clean liquid flows into the secondary tank, and it is supplied to the machine by the pump.

Specifications

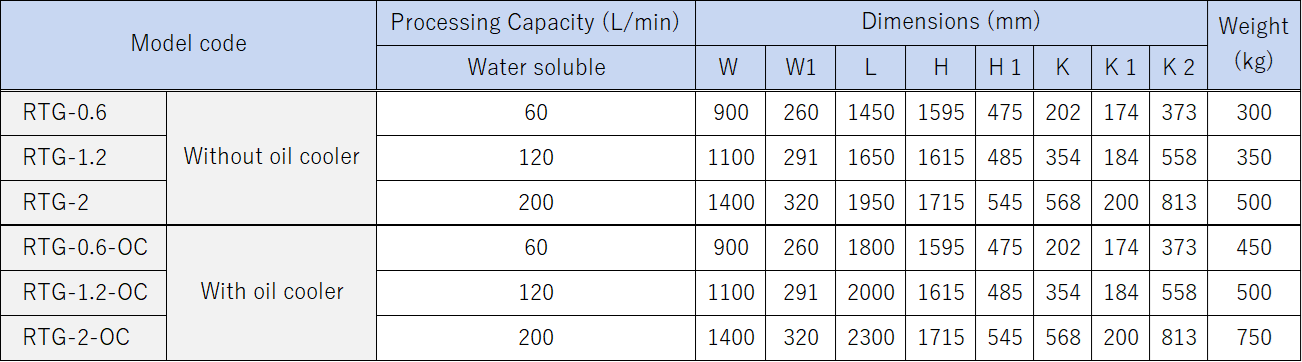

Filtration accuracy / Processing flow rate / Model code

Product weight

• Without oil cooler:
• 60 L/min　350 kg
• 120 L/min　400 kg
• 200 L/min　550 kg
• With oil cooler:
• 60 L/min　450 kg
• 120 L/min　500 kg
• 200 L/min　650 kg

* The product weight varies depending on the specifications, options, etc.

Paint color

Silver gray (Munsell No. N-8.0)

* For information about the specified color, please consult us.

Product Photo (Example)

---

* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.
* The specifications and dimensions are subject to change without notice.
* When the oil viscosity exceeds 50 mm 2/s, please consult us.
* For details on how to select the supply pump, please contact us.
* For information about custom products other than standard products, please consult us.

Option

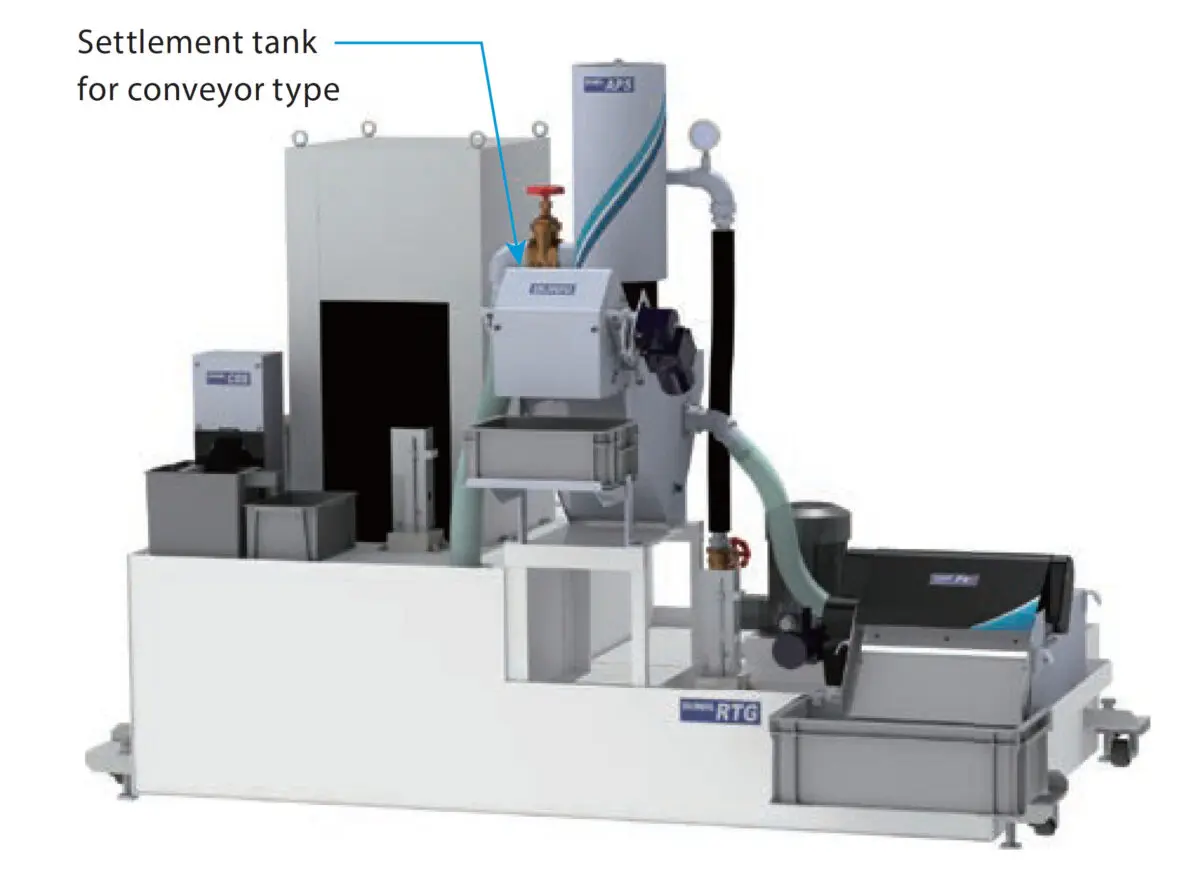

• Settlement tank for conveyor type (Drive motor: 25W)
• Chain bucket skimmer CBS
• Relay terminal box
• Control panel, Operation box

* Please contact us for details.

* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.
* The specifications and dimensions are subject to change without notice.
* For the oil-based specifications, please consult us.
* For information about custom products other than standard products, please consult us.
* The product weight varies depending on the specifications, options, etc.
* For information about the specified color, please consult us.
