Magnetic Drum Conveyor

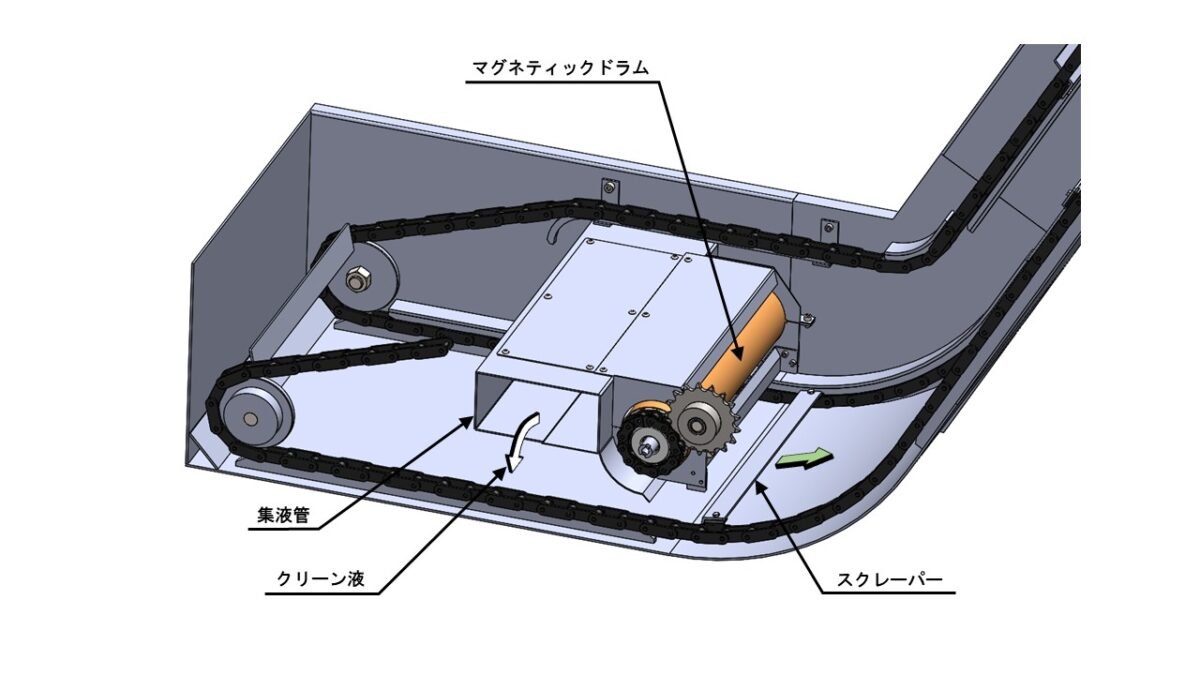

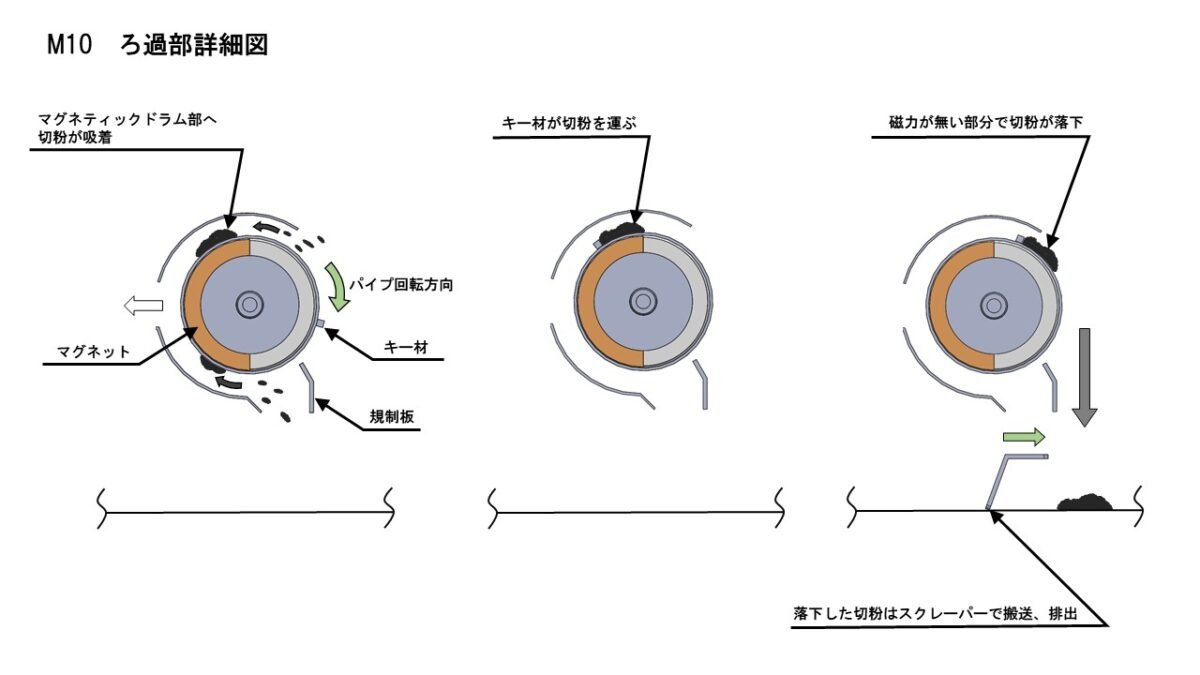

Mechanism

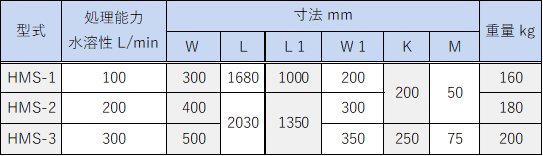

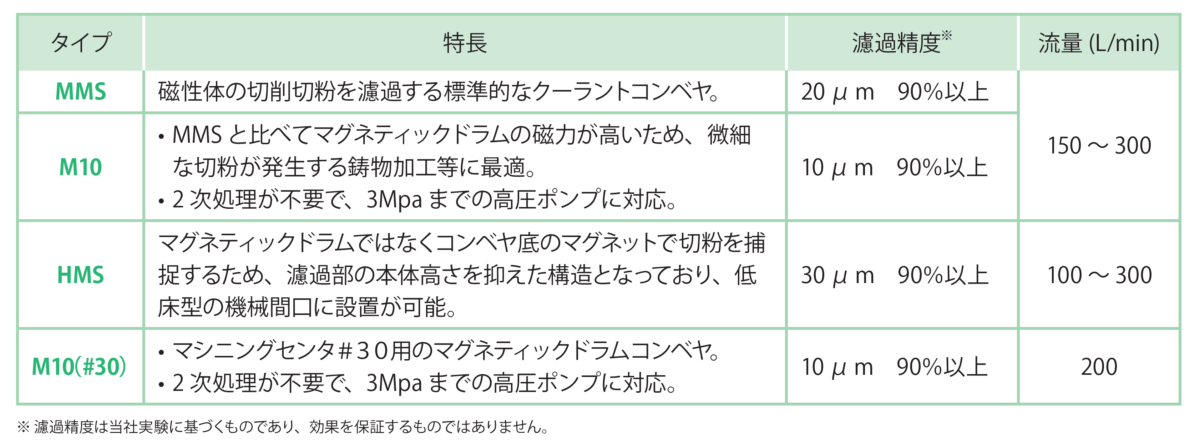

Specifications

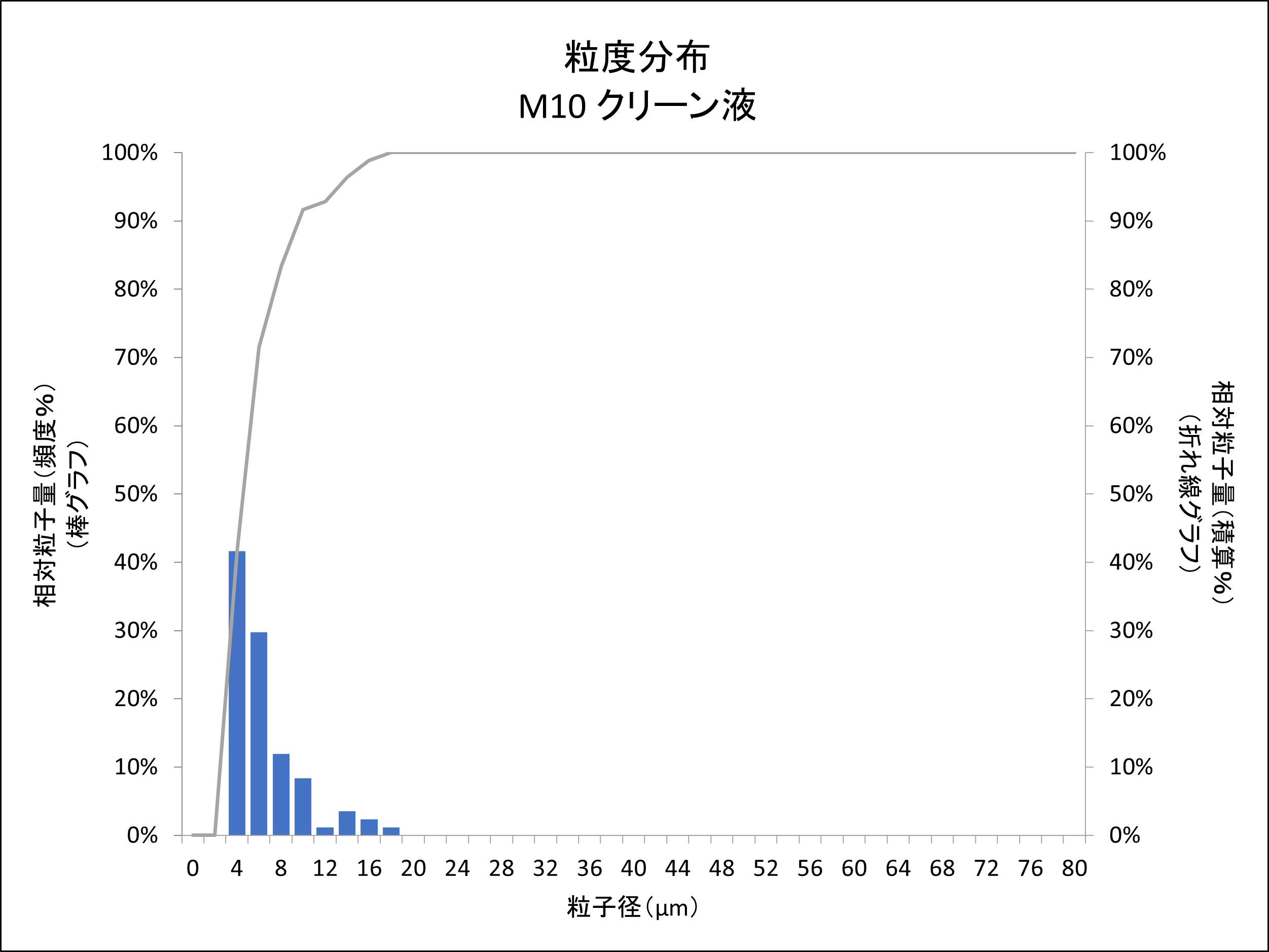

Filtration accuracy

Array

Processing flow rate

• M10-1（M10-45HLA-235(11-1.5)）　150L/min
• M10-2（M10-55HLA-245(11-2)）　　200L/min
• M10-3（M10-70HLA-260(11-3)）　　300L/min

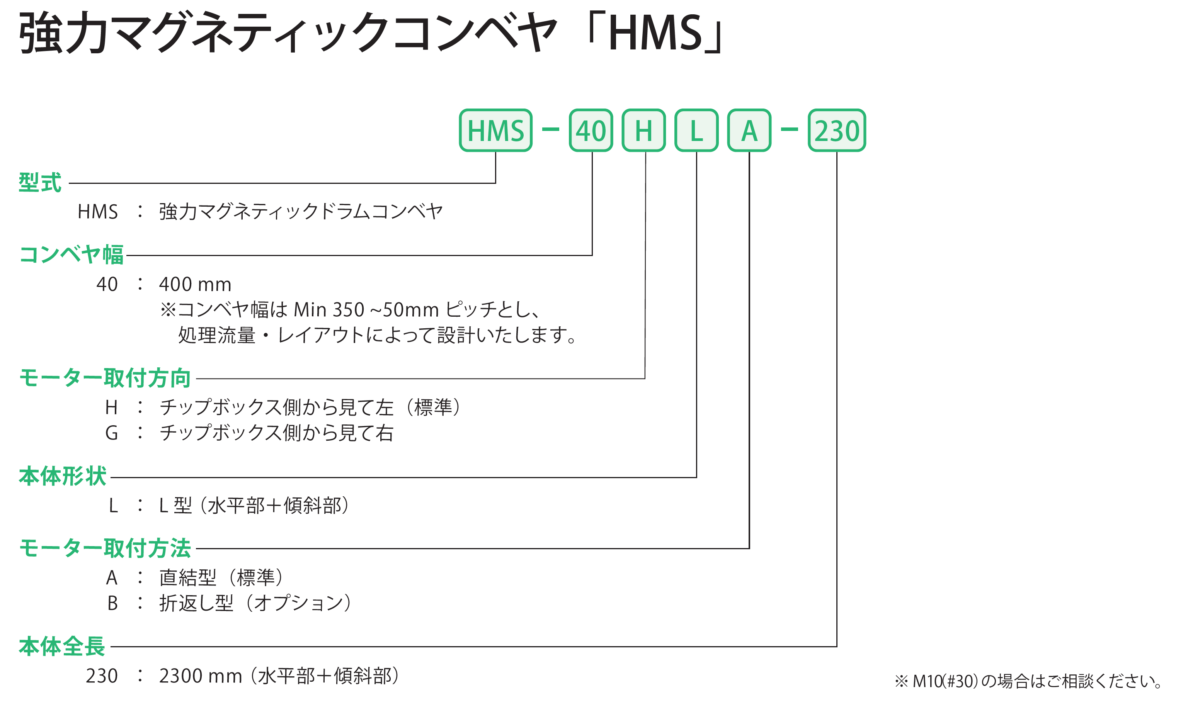

• HMS-1（HMS30HLA-245）　100L/min
• HMS-2（HMS40HLA-280）　200L/min
• HMS-3（HMS50HLA-280）　300L/min
• #30-M10-2（M10-2F-C-CBS）　200L/min

Paint color

Silver gray (Munsell No. N-8.0)

*Filtration accuracy is based on our own experiments, and we do not guarantee effectiveness.
*Specifications and dimensions are subject to change without notice.
*Please consult us if you are using oil-based products.
*Please contact us for custom-made products other than standard products.
*The image is for illustrative purposes only. The specifications may differ from the actual product.

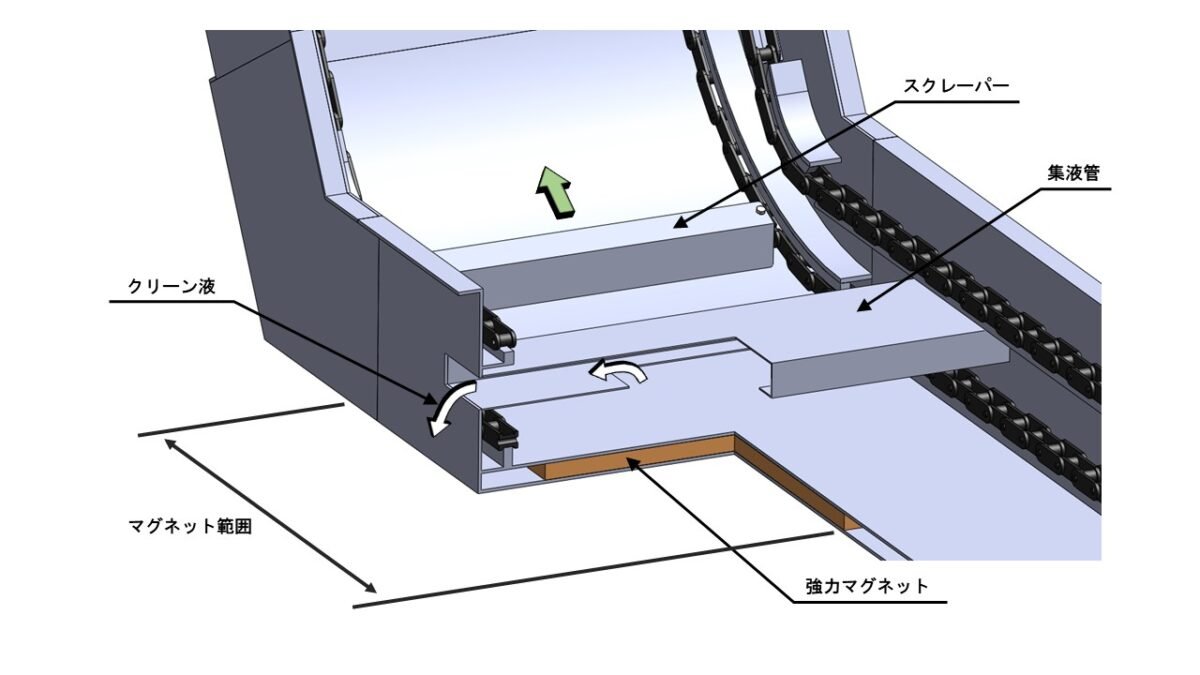

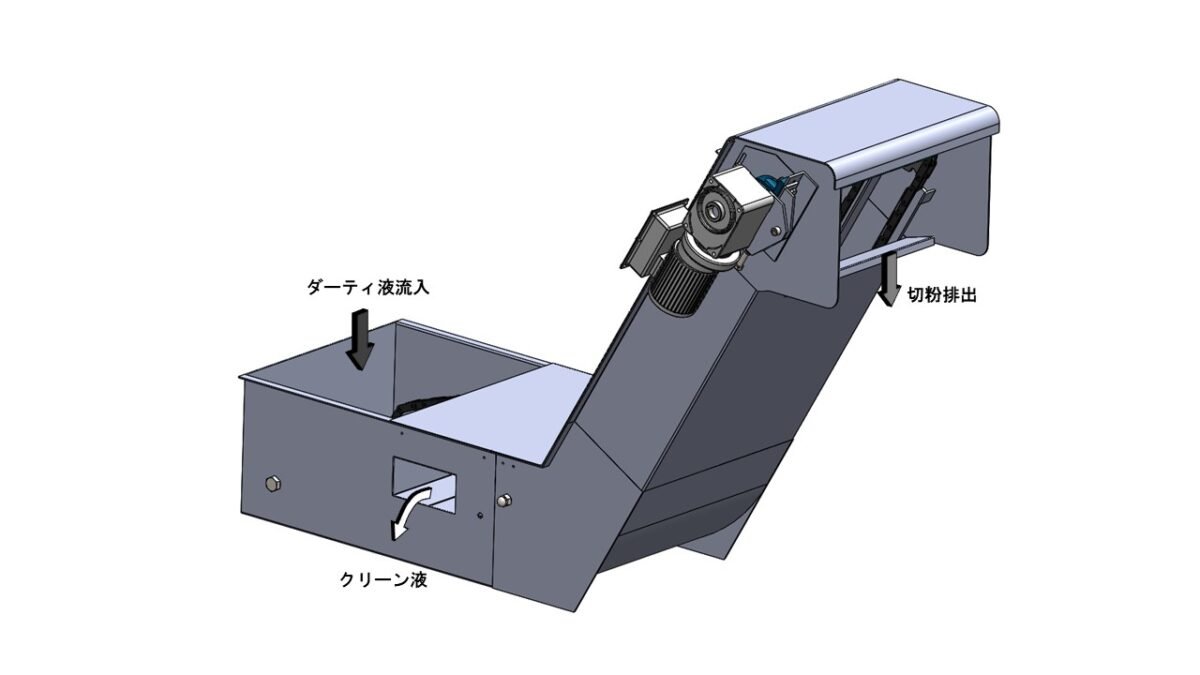

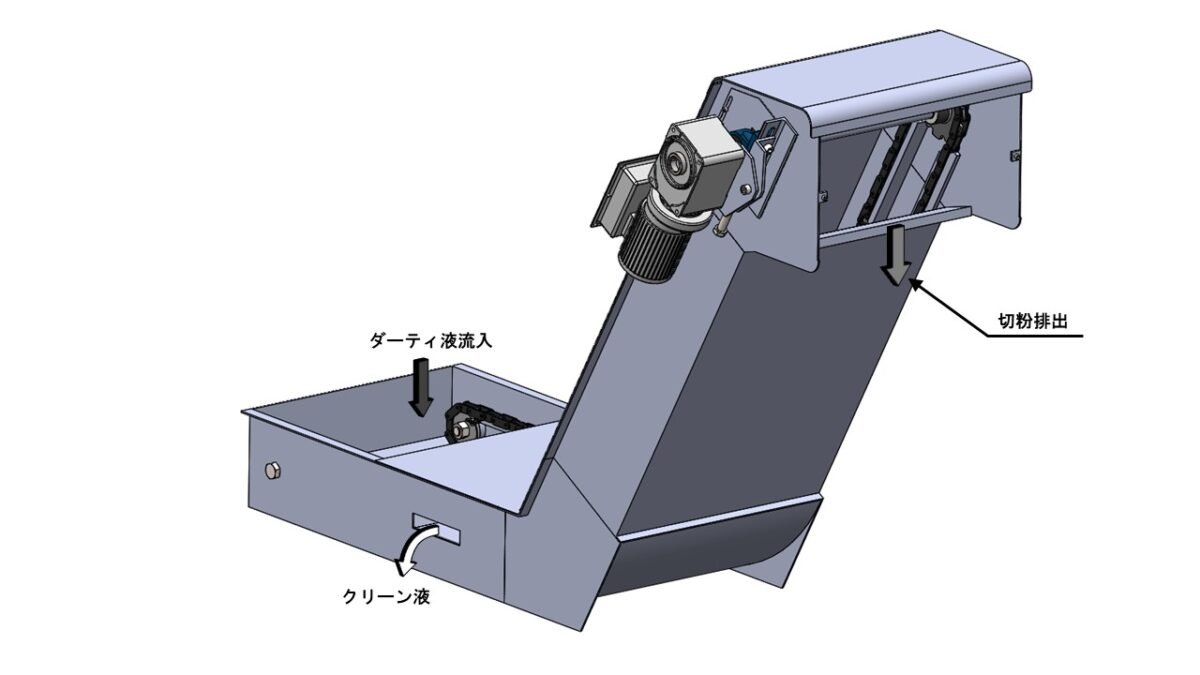

Mechanism

1. Array
2. Array

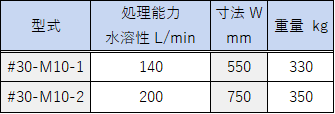

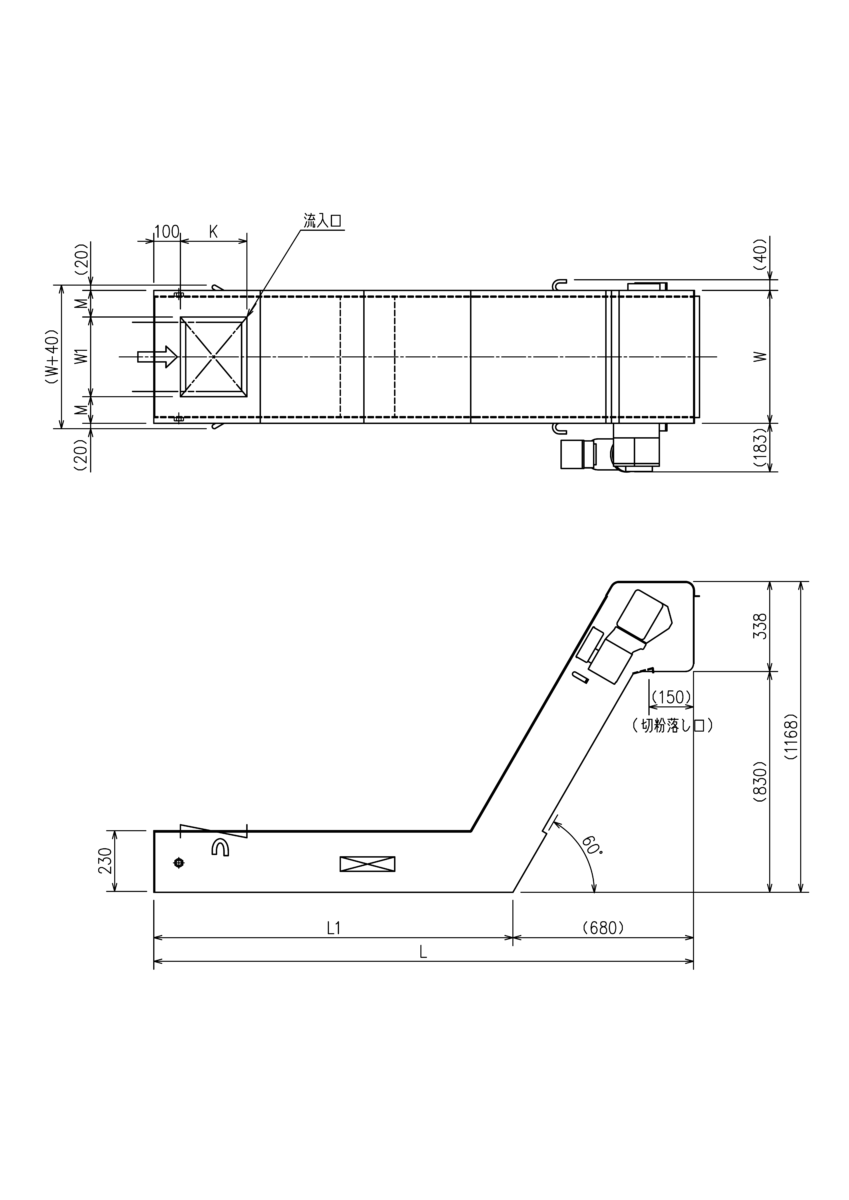

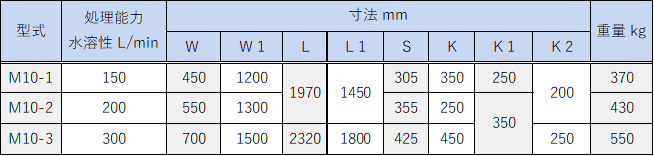

Specifications

Paint color

Silver gray (Munsell No. N-8.0)

* For information about the specified color, please consult us.

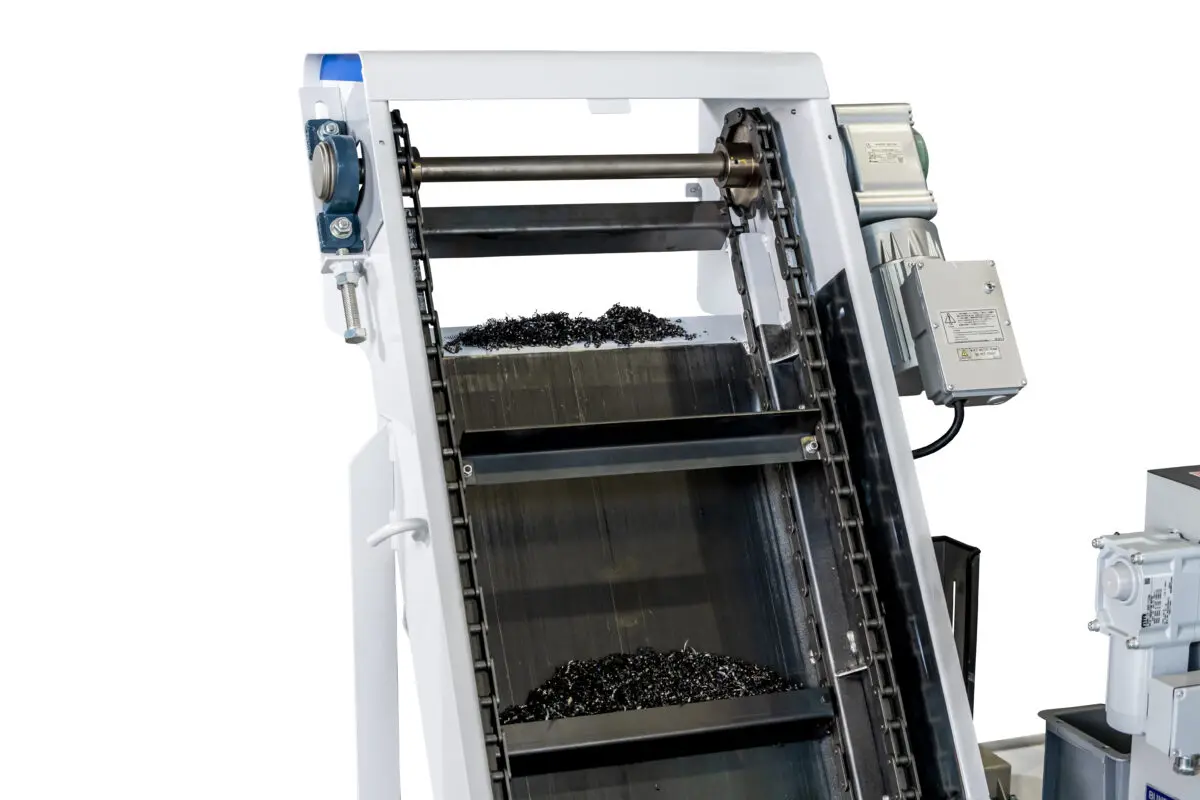

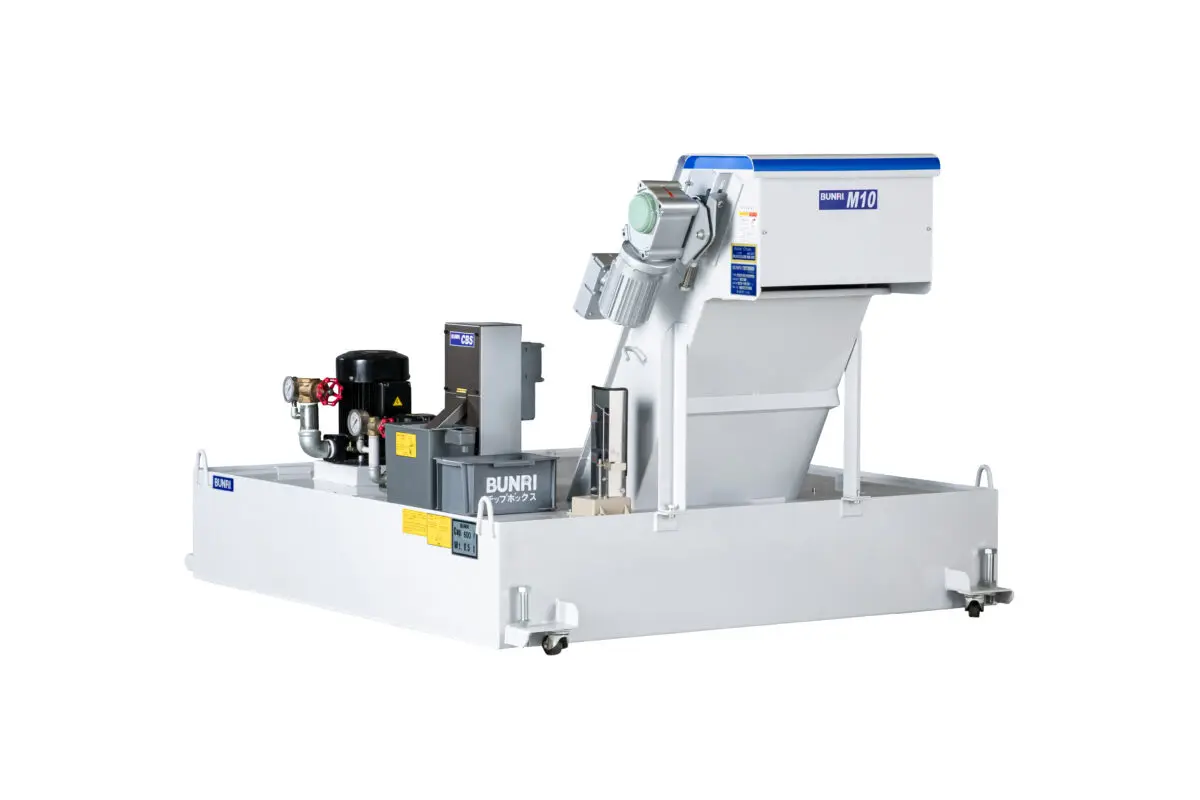

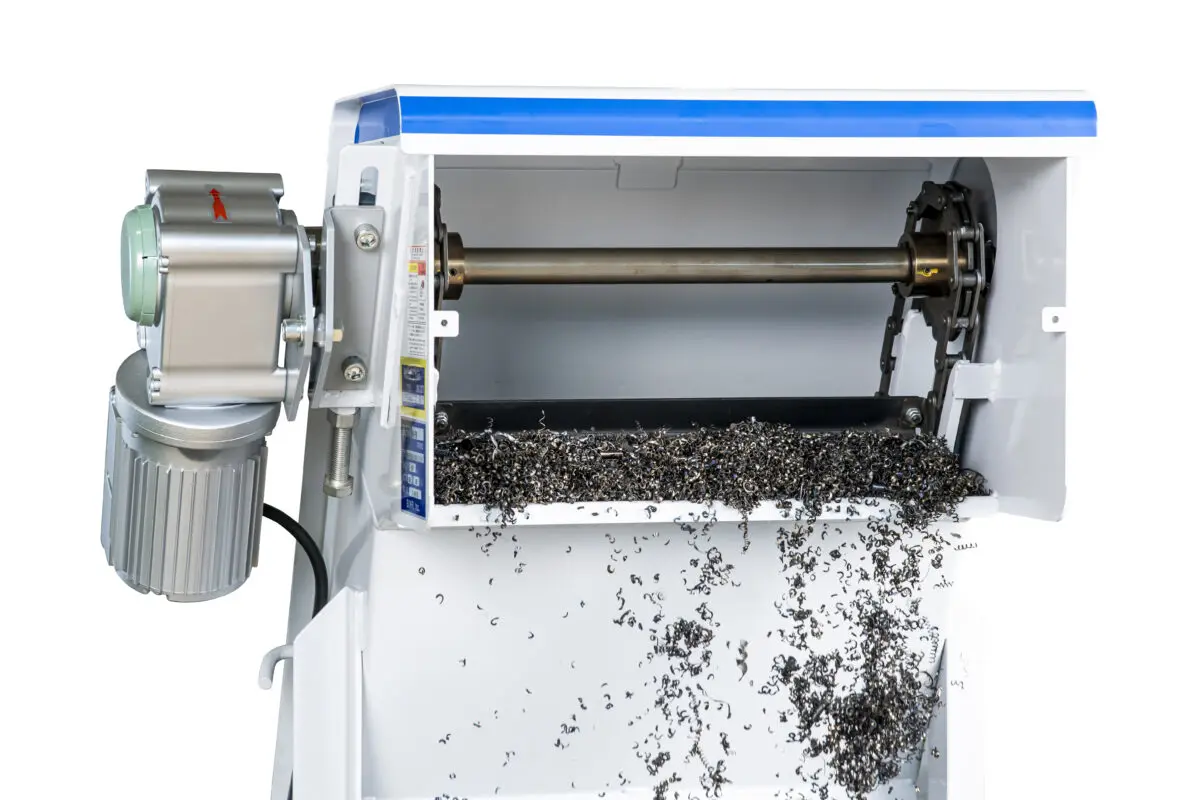

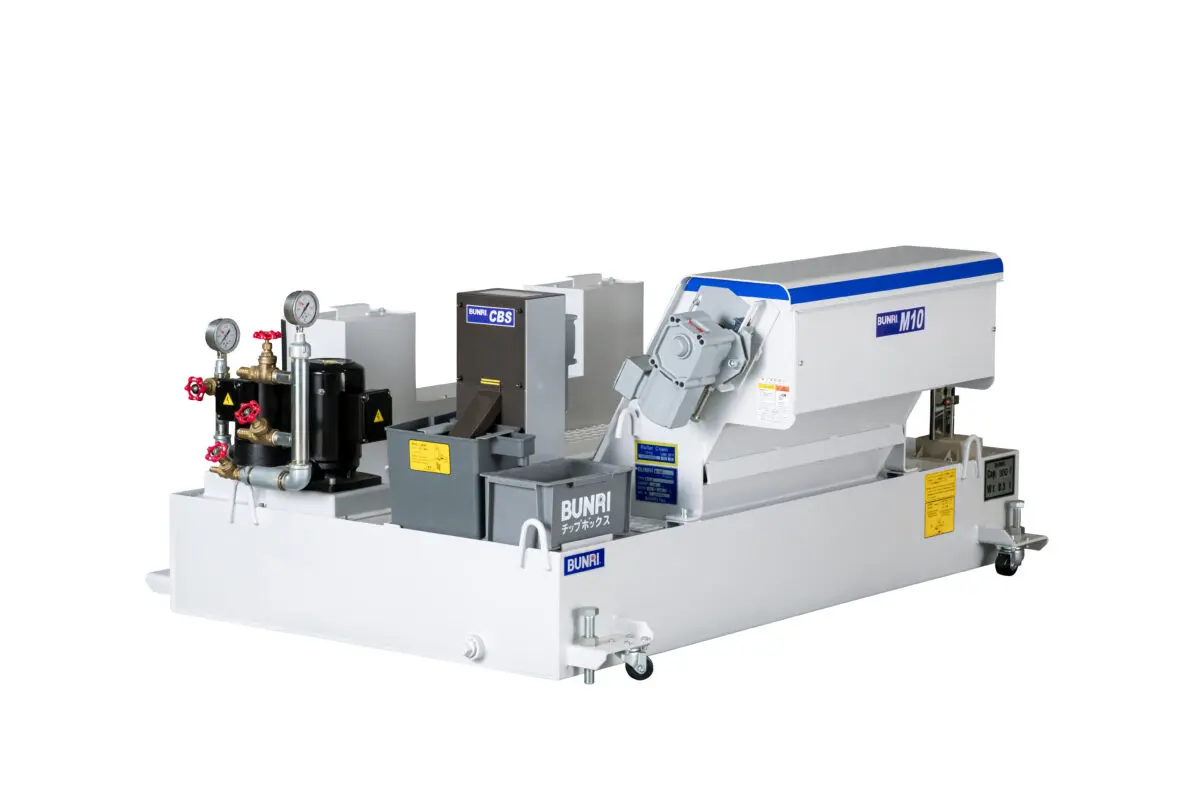

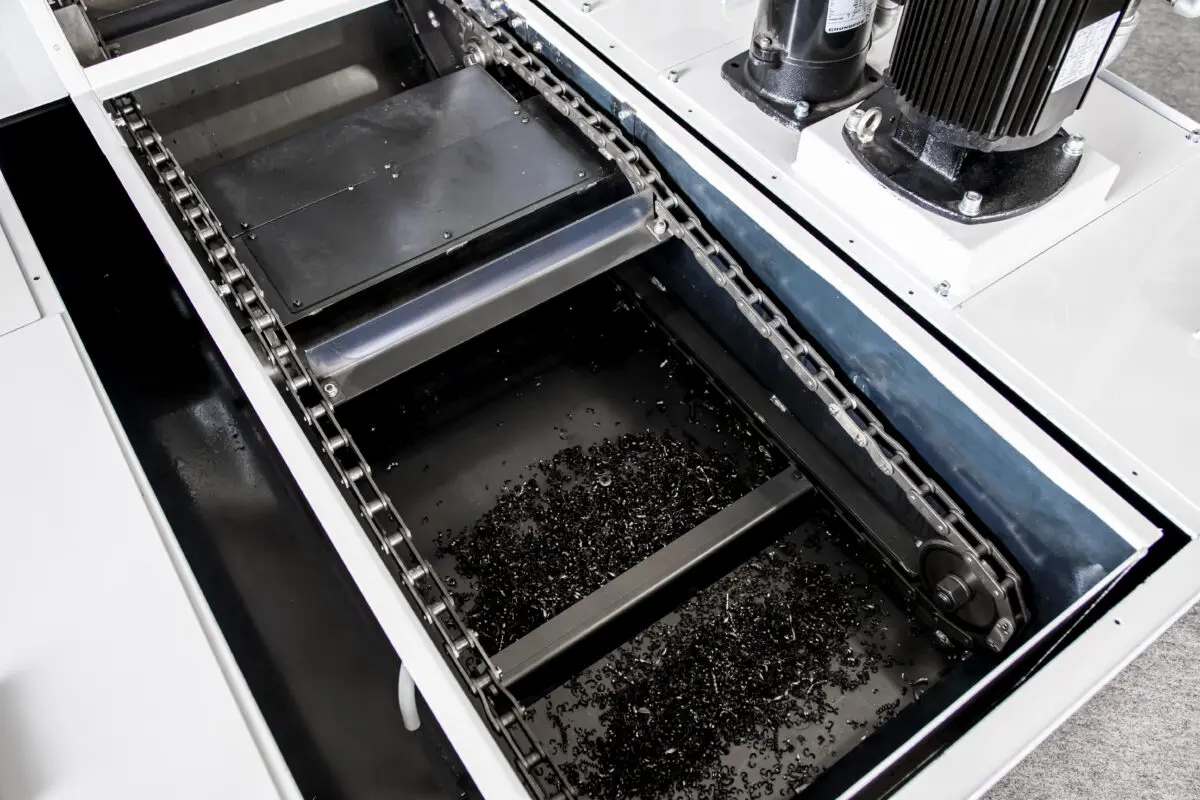

Product Photo (Example)

Main body

Basket section

Unit

* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.
* The specifications and dimensions are subject to change without notice.
* When the oil viscosity exceeds 50 mm 2/s, please consult us.
* For details on how to select the supply pump, please contact us.
* For information about custom products other than standard products, please consult us.

Option

• Chain Bucket Skimmer CBS
• Terminal box
• Terminal boxControl panel/operation box

*Please contact us for details.

*Filtration accuracy is based on our own experiments, and we do not guarantee effectiveness.
*Specifications and dimensions are subject to change without notice.
*Please consult us if you are using oil-based products.
*Please contact us for custom-made products other than standard products.
*The image is for illustrative purposes only. The specifications may differ from the actual product.
