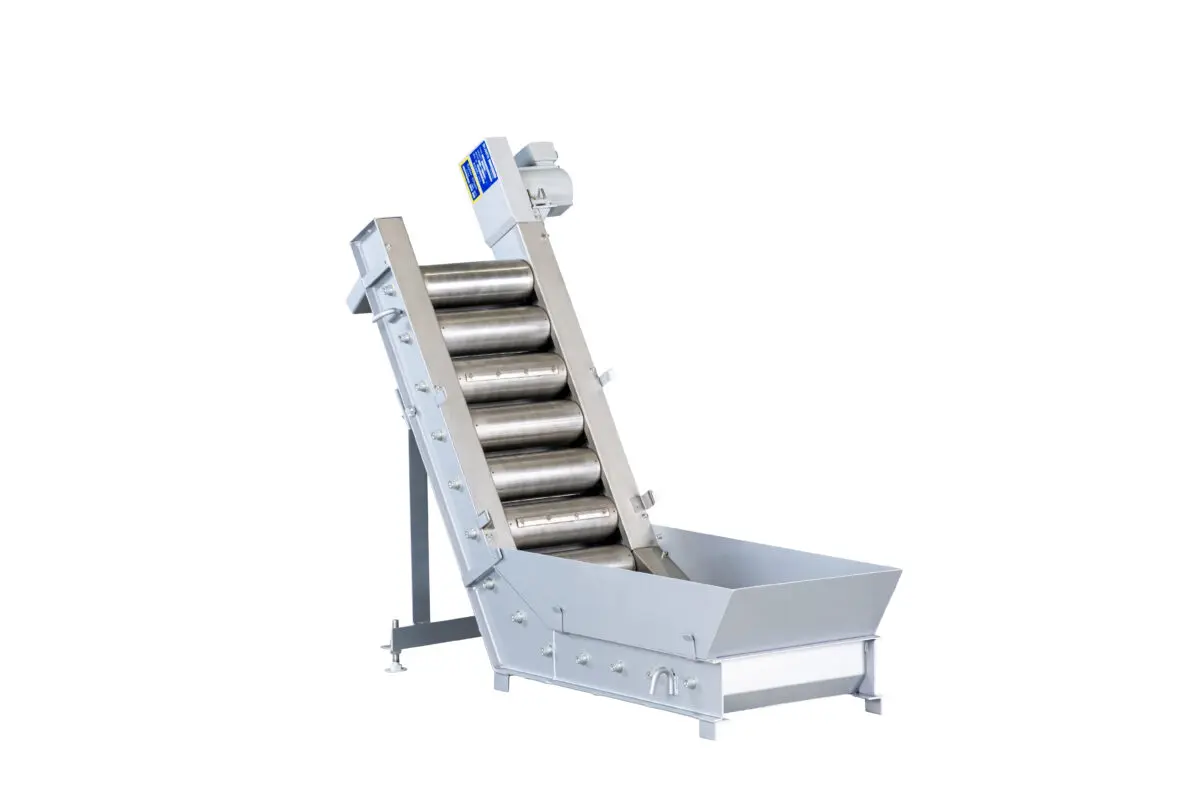

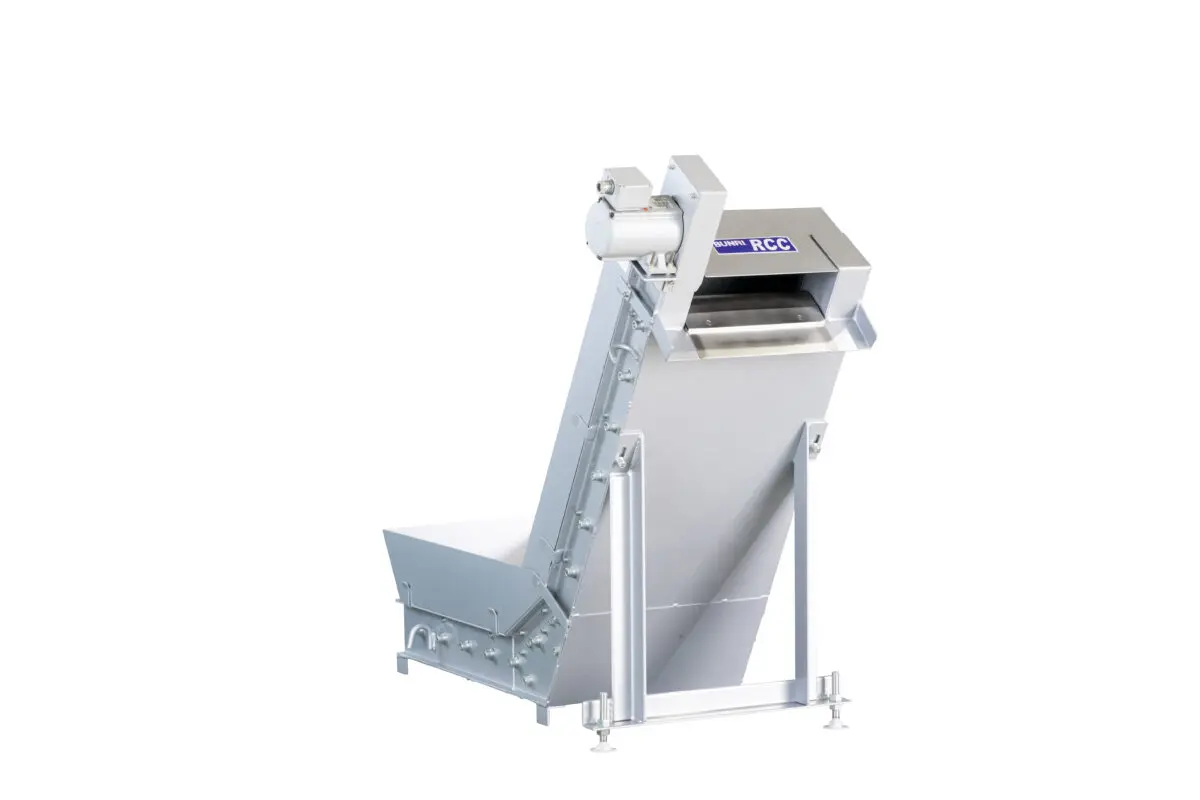

Magnetic Roller Conveyor RCC/RC

Mechanism

Specifications

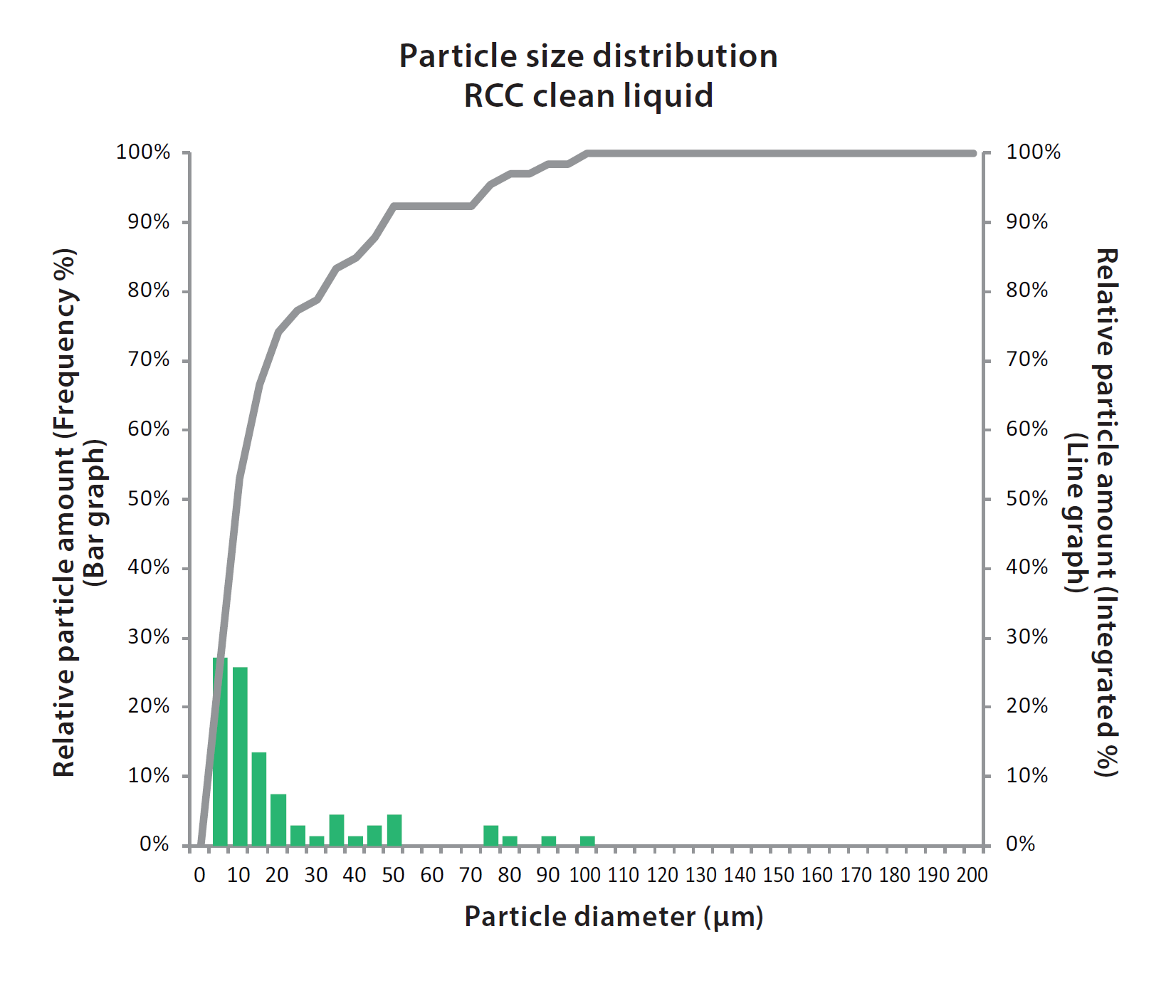

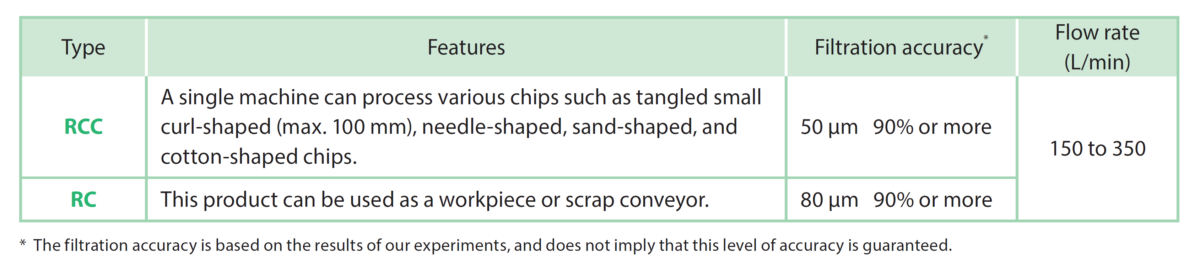

Filtration accuracy

Array

Processing flow rate

• RCC205（RCC20FHMA-0.72）　150L/min
• RCC305（RCC30FHMA-0.72）　250L/min
• RCC405（RCC40FHMA-0.72）　350L/min

Product weight

• RCC205（RCC20FHMA-0.72）　40㎏
• RCC305（RCC30FHMA-0.72）　60㎏
• RCC405（RCC40FHMA-0.72）　80㎏

Paint color

Medium metallic (Approximate color: Munsell No. N-6.7)

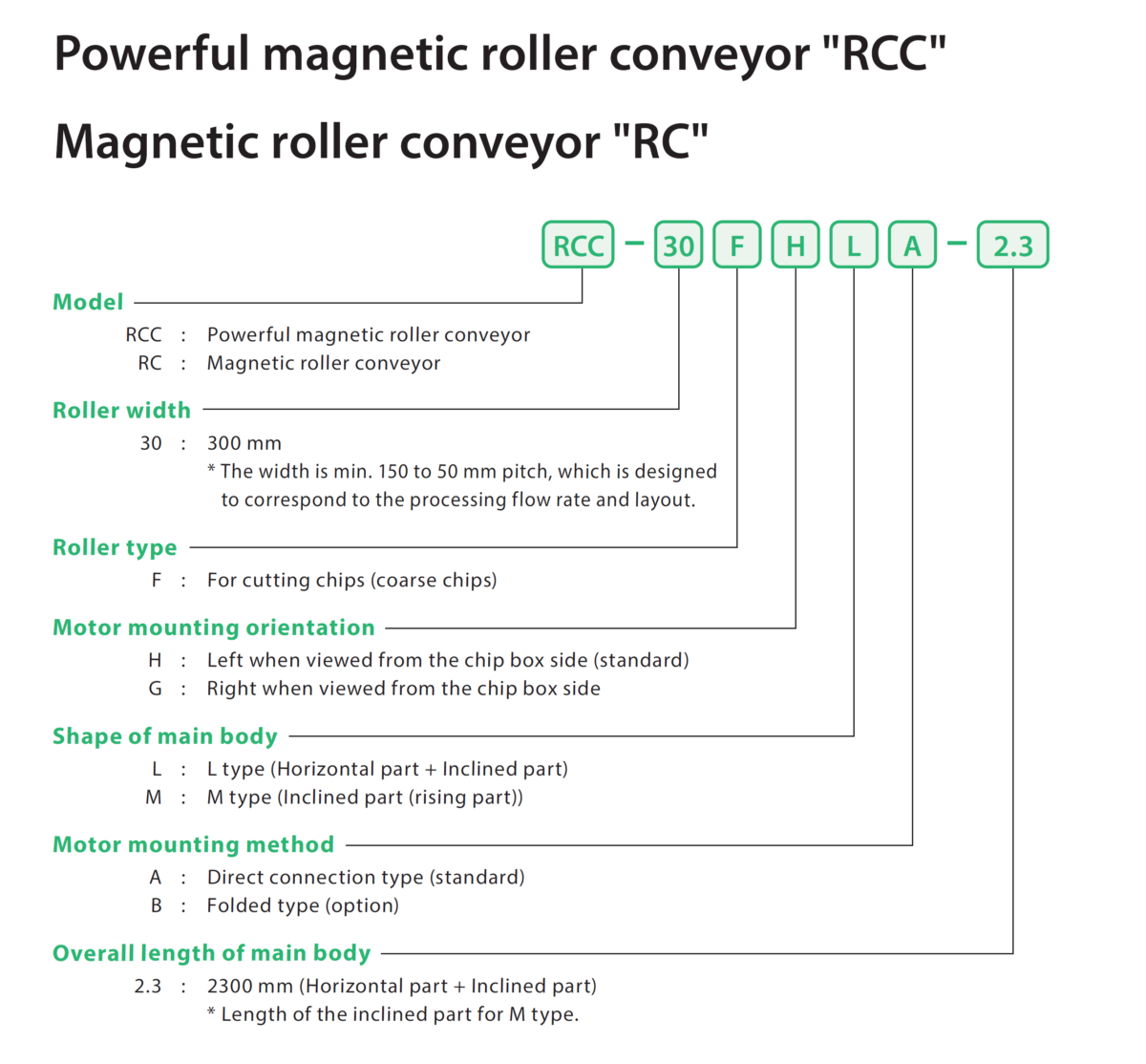

Model code

* Photos are product images for illustration purposes only. Specifications differ from the actual product.
* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.
* The specifications and dimensions are subject to change without notice.
* For the oil-based specifications, please consult us.
* For information about custom products other than standard products, please consult us.

Mechanism

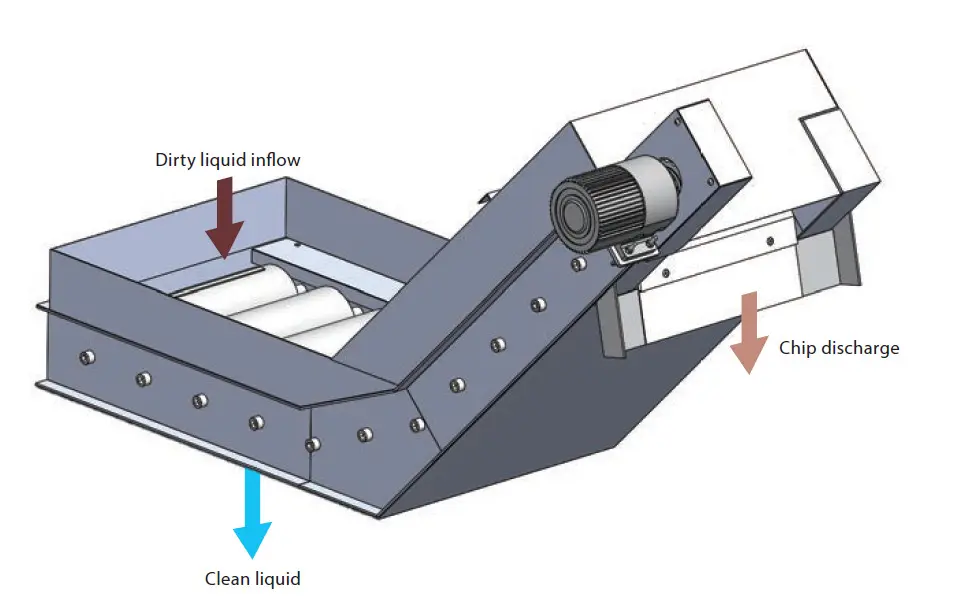

1. The dirty liquid flows onto the conveyor.
2. The dirty liquid is filtered when it passes through the gap between the magnetic drums, and flows from the slit of the bottom plate to the clean tank.

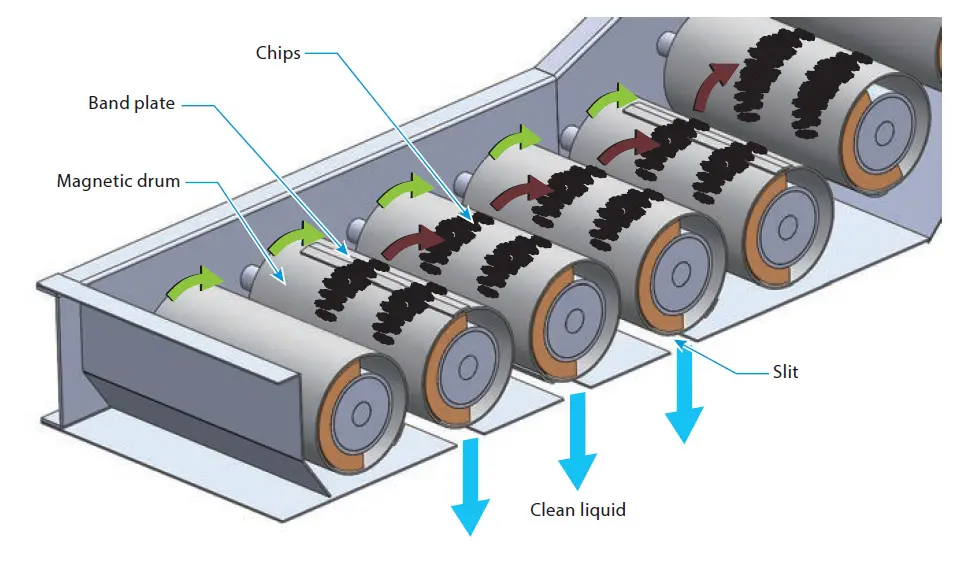

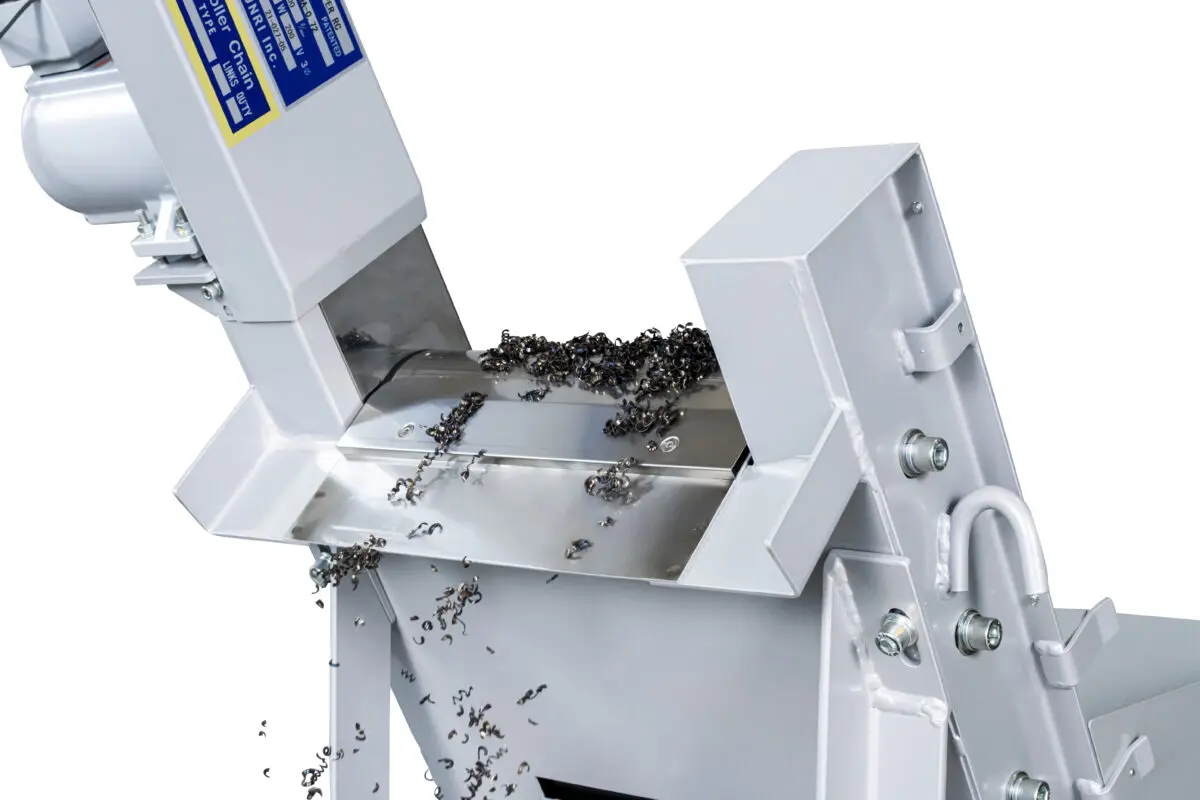

3. The captured chips fall onto the next magnetic drum as a result of the rotation of the magnetic drum. By repeating this process, chips are moved to the top of the conveyor and discharged.

Specifications

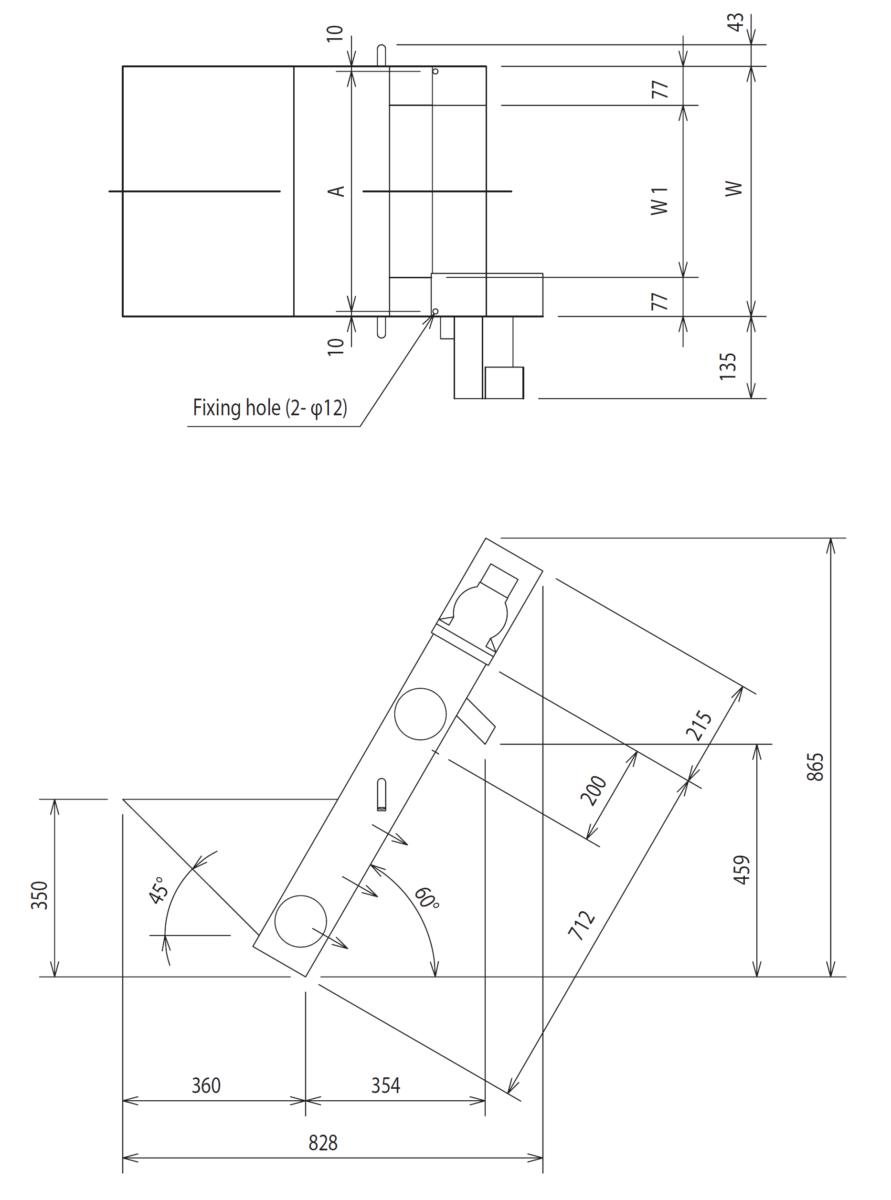

Dimensional drawing

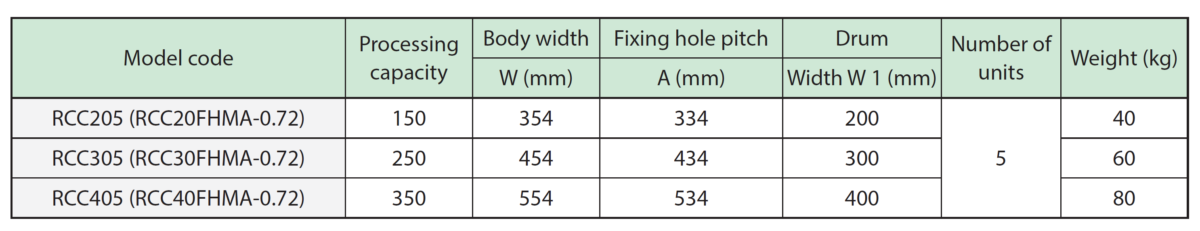

Dimension table

Filtration accuracy / Processing flow rate / Model code

Product weight

• RCC205（RCC20FHMA-0.72）　40㎏
• RCC305（RCC30FHMA-0.72）　60㎏
• RCC405（RCC40FHMA-0.72）　80㎏

* The product weight varies depending on the specifications, options, etc.

Paint color

Medium metallic (Approximate color: Munsell No. N-6.7)

* For information about the specified color, please consult us.

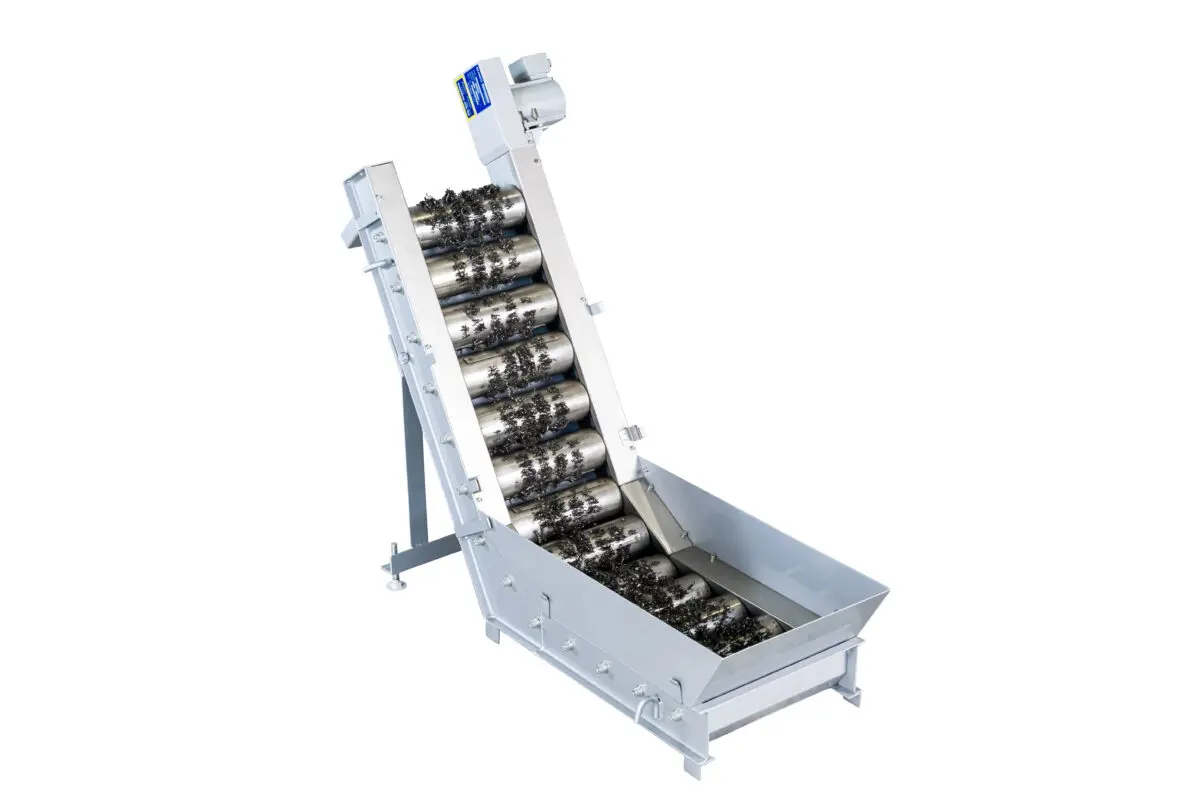

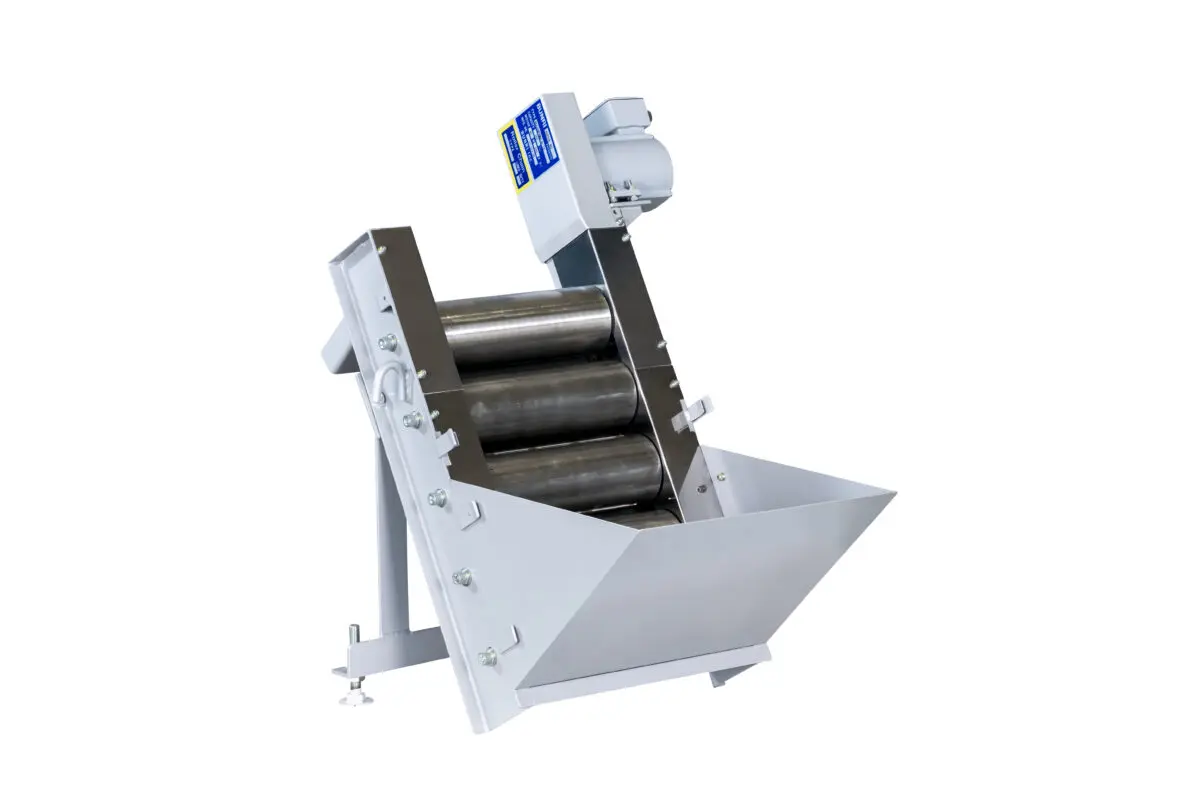

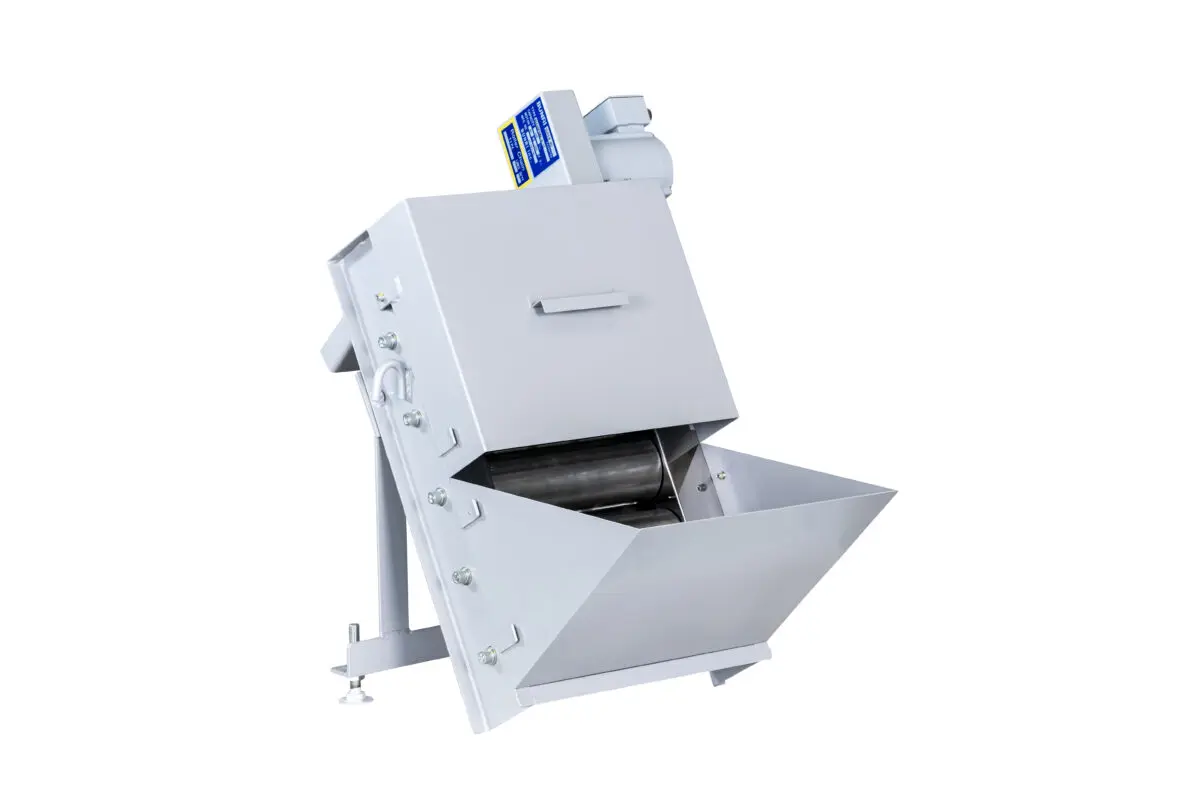

Product Photo (Example)

Main body

Basket section

Unit

* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.
* The specifications and dimensions are subject to change without notice.
* When the oil viscosity exceeds 50 mm 2/s, please consult us.
* For details on how to select the supply pump, please contact us.
* For information about custom products other than standard products, please consult us.

* Photos are product images for illustration purposes only. Specifications differ from the actual product.
* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.
* The specifications and dimensions are subject to change without notice.
* For the oil-based specifications, please consult us.
* For information about custom products other than standard products, please consult us.
