Magnetic Screw Conveyor SCC/SC/VS

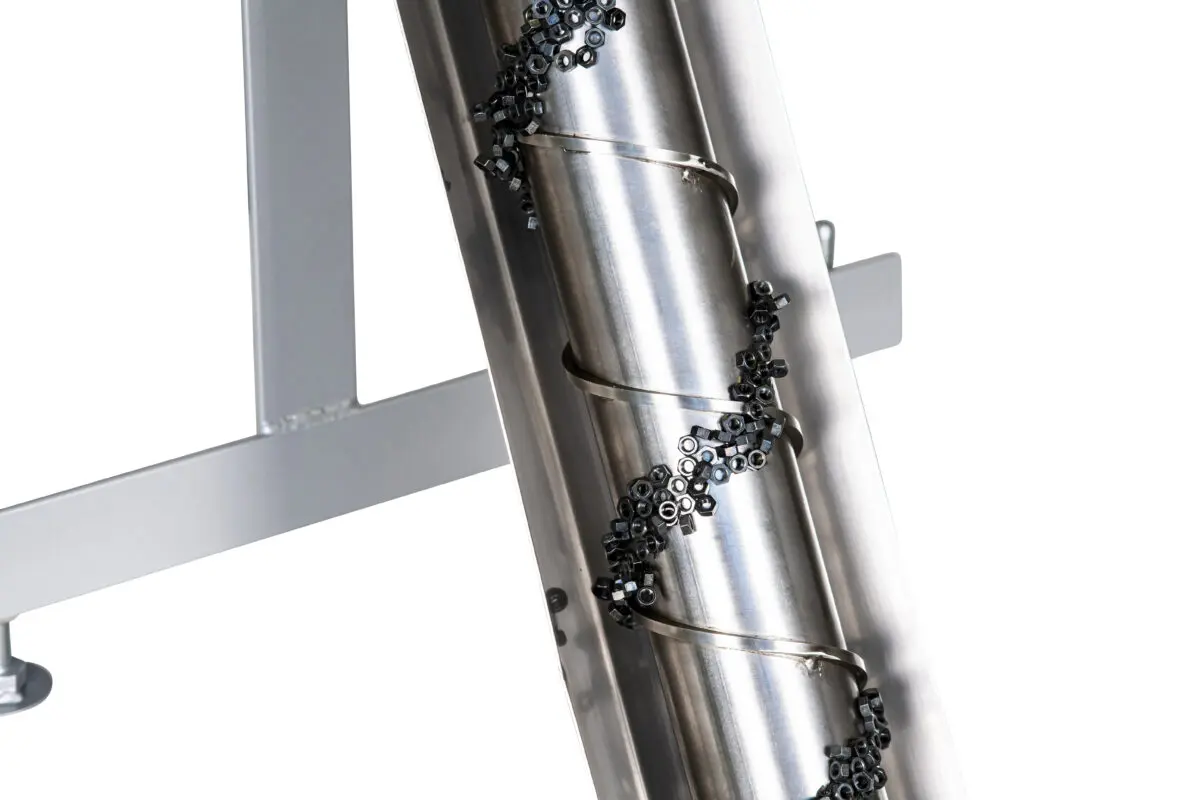

Screw type conveyor using magnet. The rotating part is not exposed, so this can be used safely and securely. Optimum for cutting chip processing of gear cutting machines, broach machines, etc.

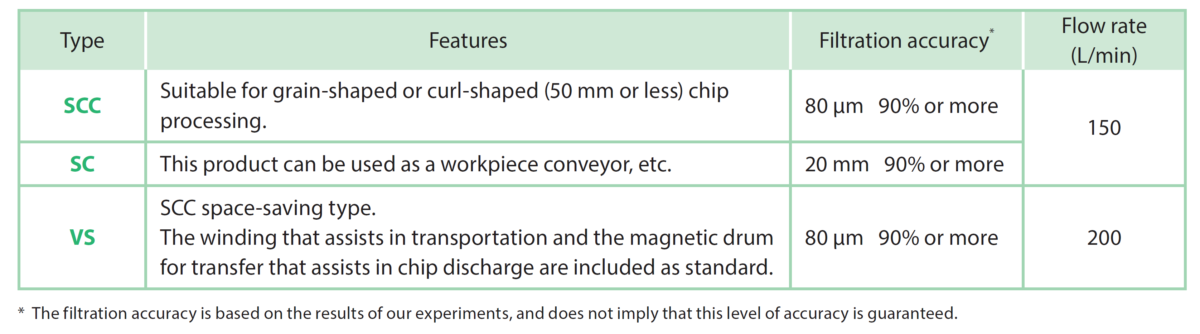

Features

Mechanism

Specifications

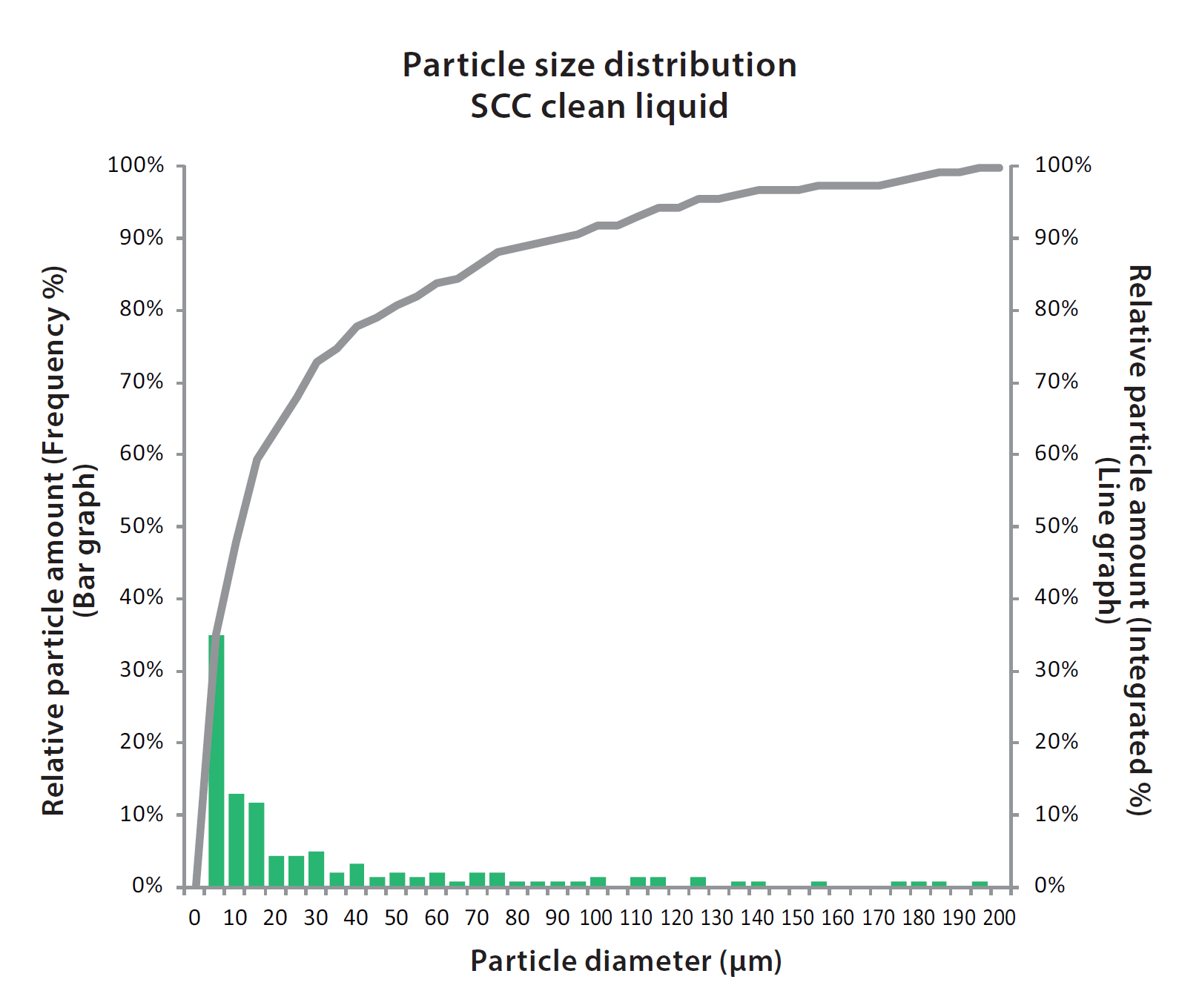

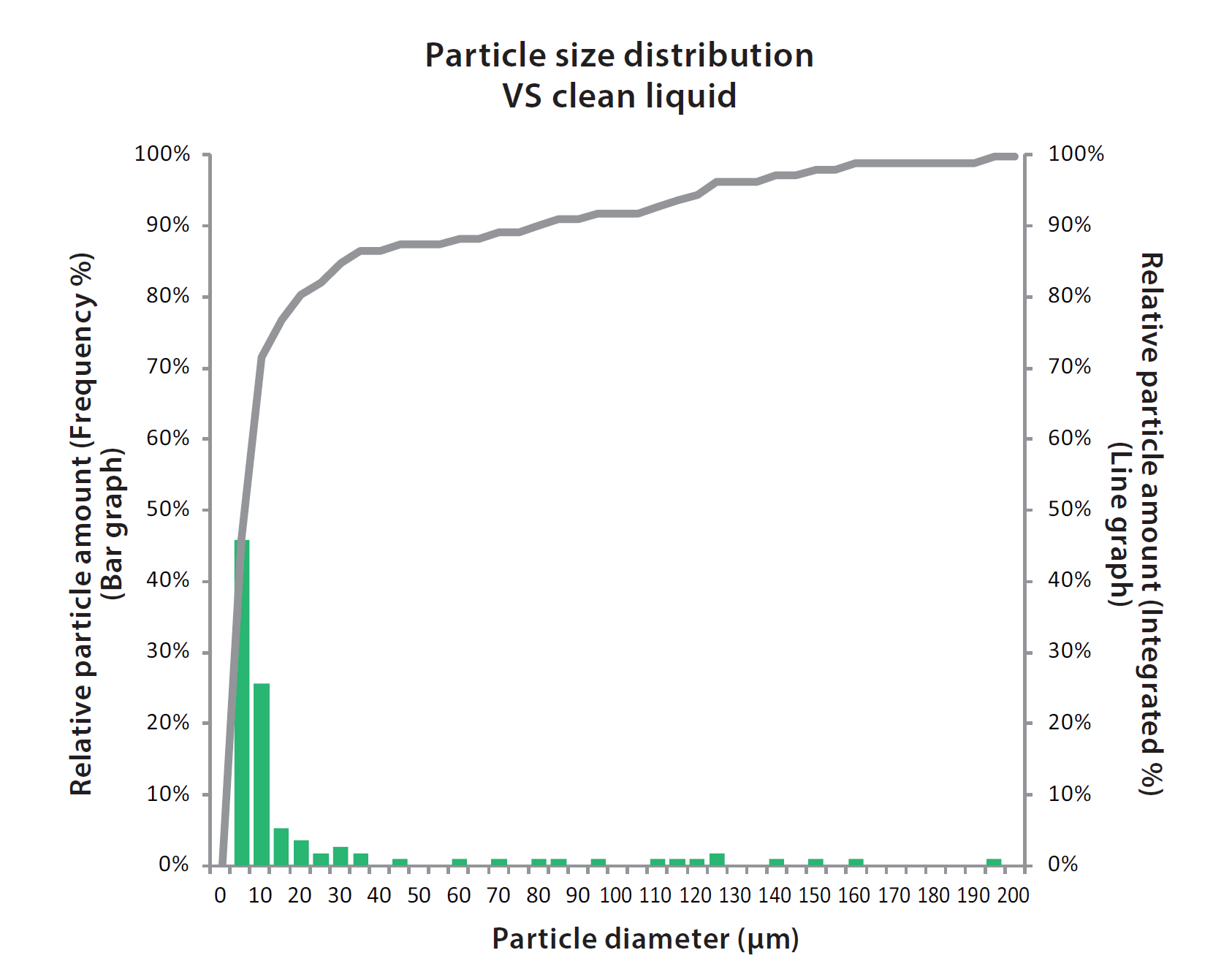

Filtration accuracy

Array

Processing flow rate

Product weight

Paint color

Medium metallic (Approximate color: Munsell No. N-6.7)

* Photos are product images for illustration purposes only. Specifications differ from the actual product.
* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.
* The specifications and dimensions are subject to change without notice.
* For the oil-based specifications, please consult us.
* For information about custom products other than standard products, please consult us.

Coolant

Water soluble Oil-based

Category

Magnetic material

Processing Details

Cutting

Work Material

FC/FCD Steel

Chip Shape

Granular Small curl-shaped (50 mm or less)

Machine Tool

Machining center Broaching machine Gear cutting machine

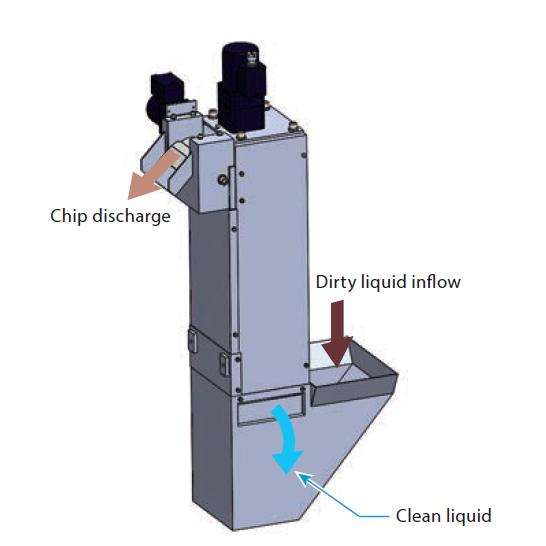

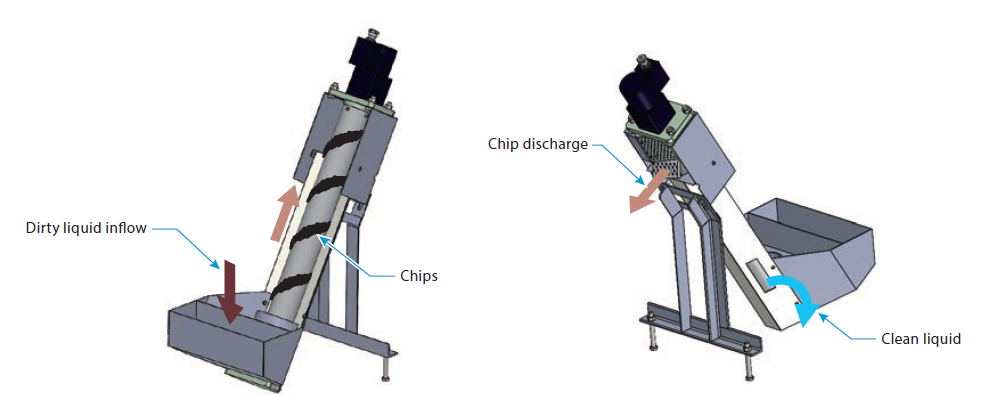

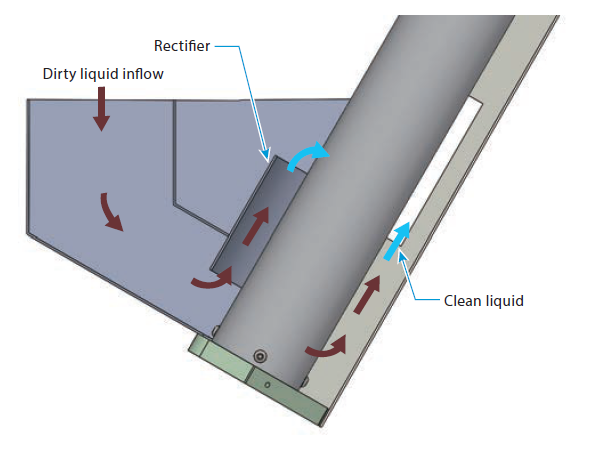

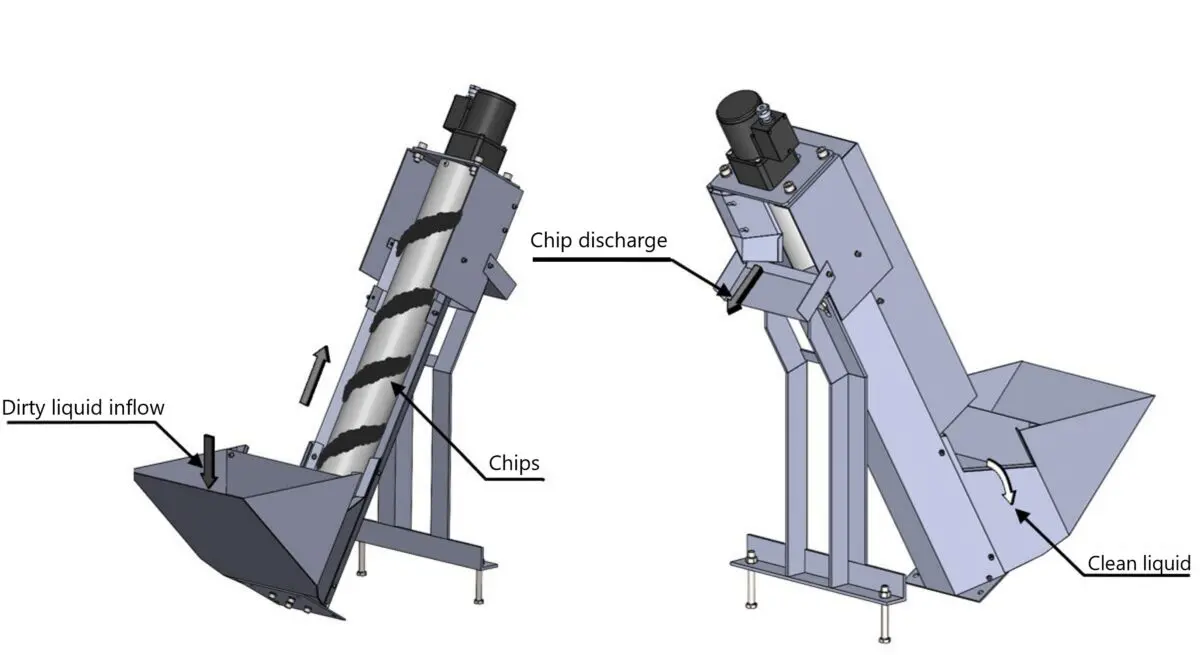

Mechanism

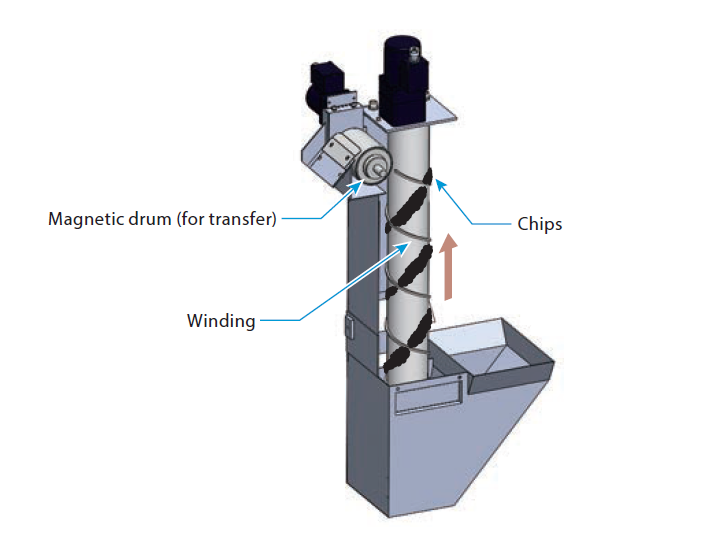

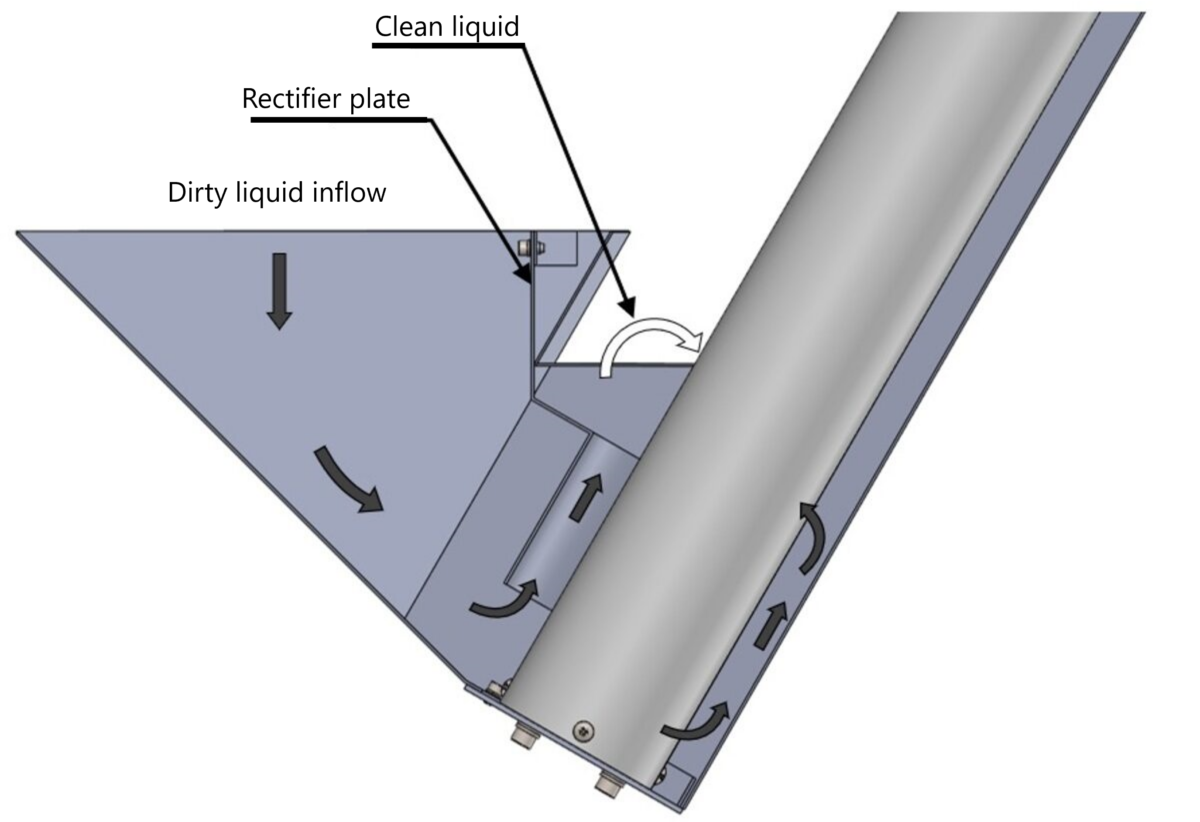

Mechanism 1

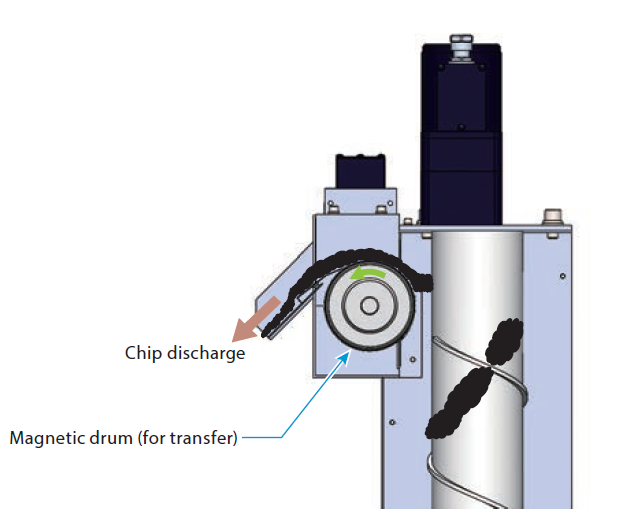

Mechanism 2
  1. Array
  2. Array
  3. Array

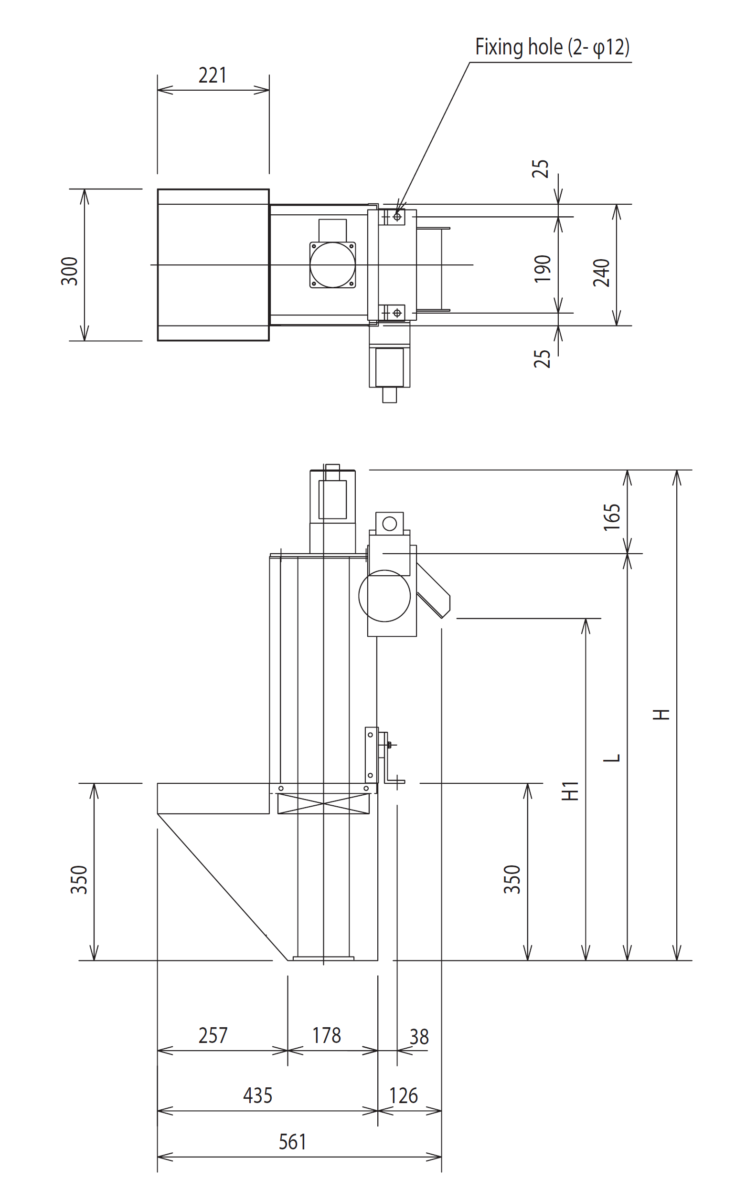

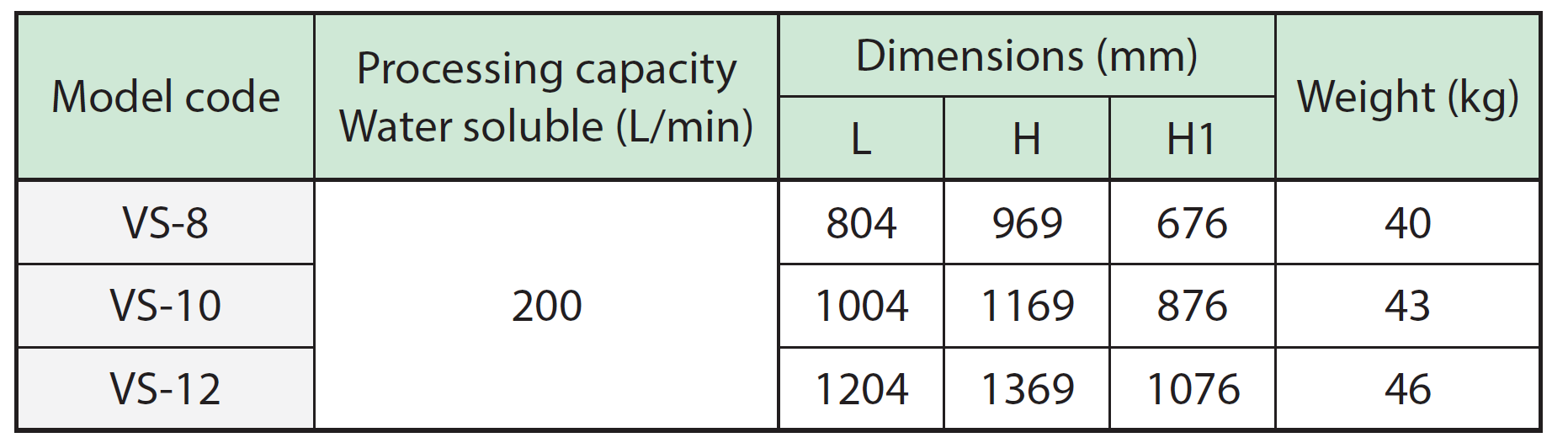

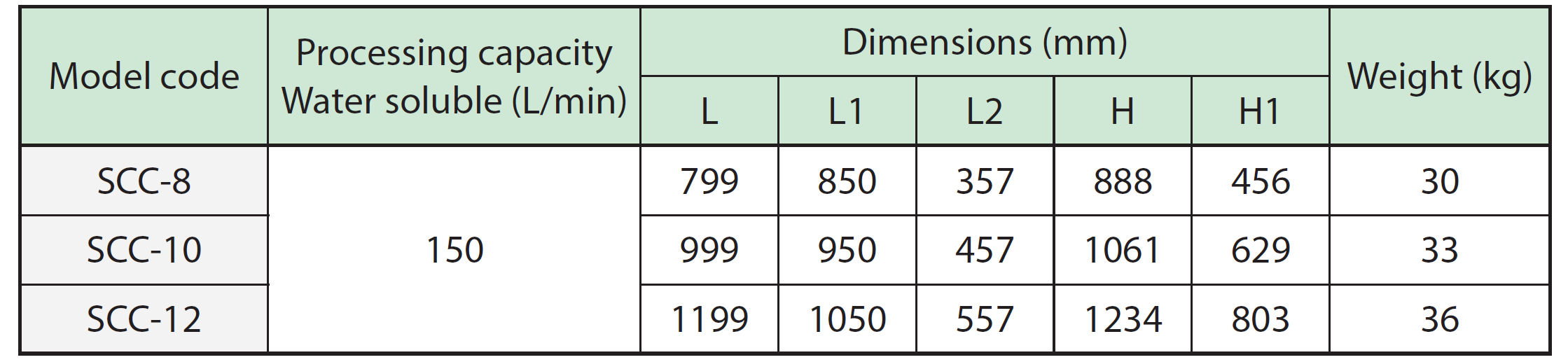

Specifications

Product weight

* The product weight varies depending on the specifications, options, etc.

Paint color

Medium metallic (Approximate color: Munsell No. N-6.7)

* For information about the specified color, please consult us.

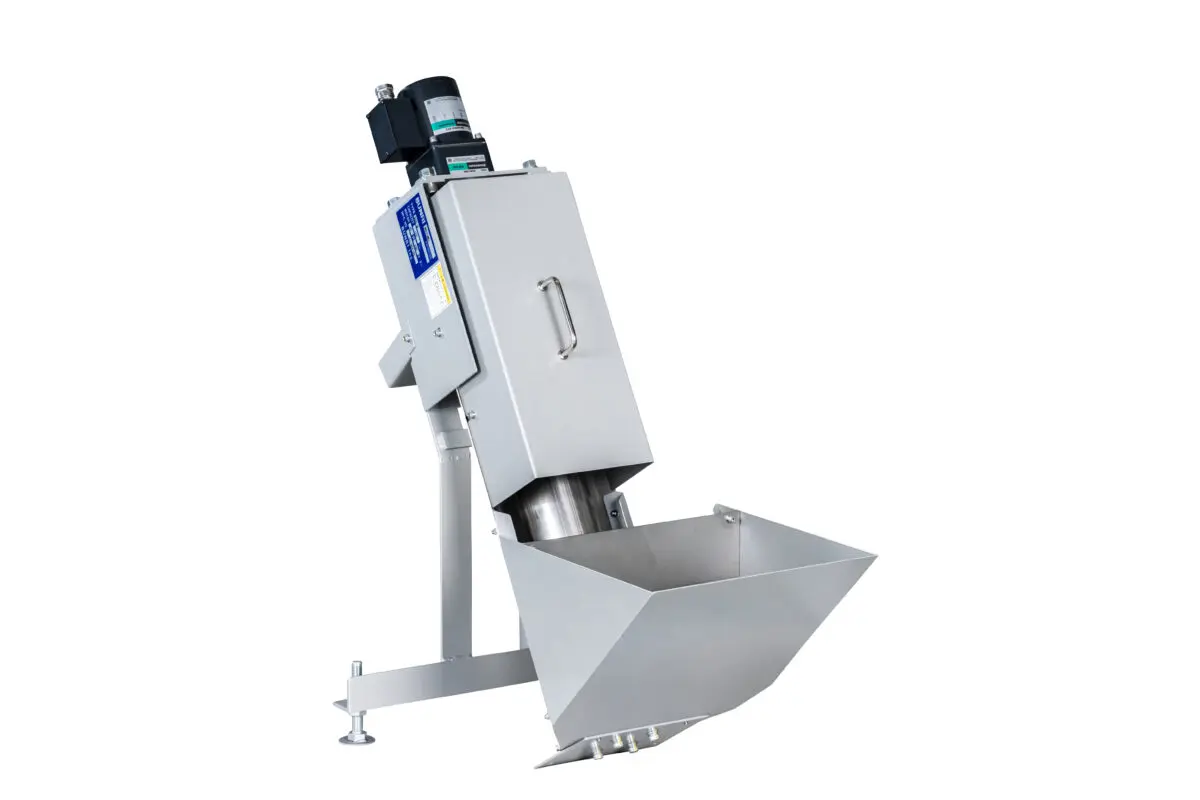

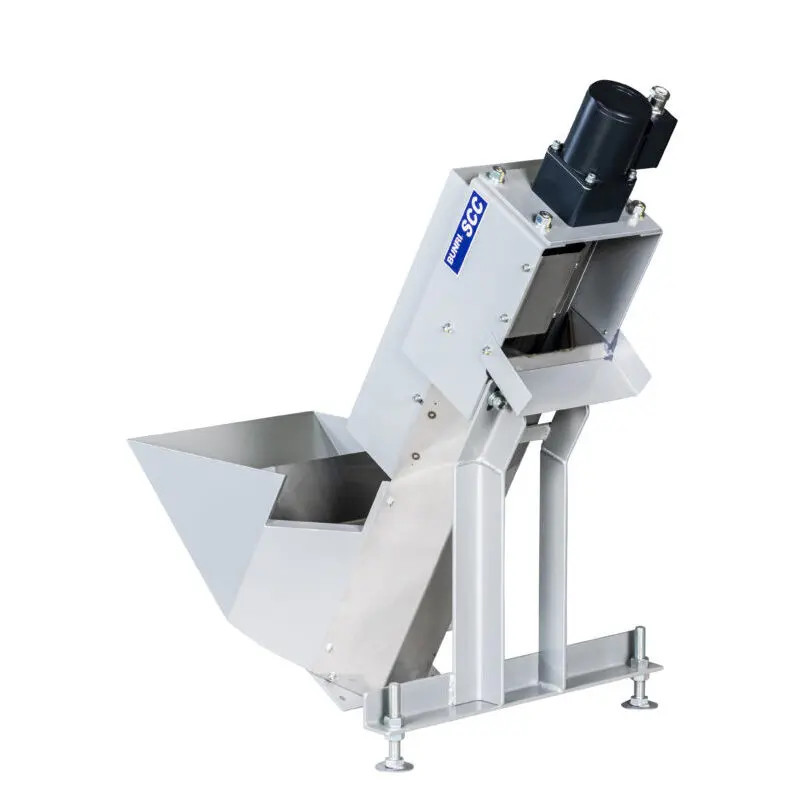

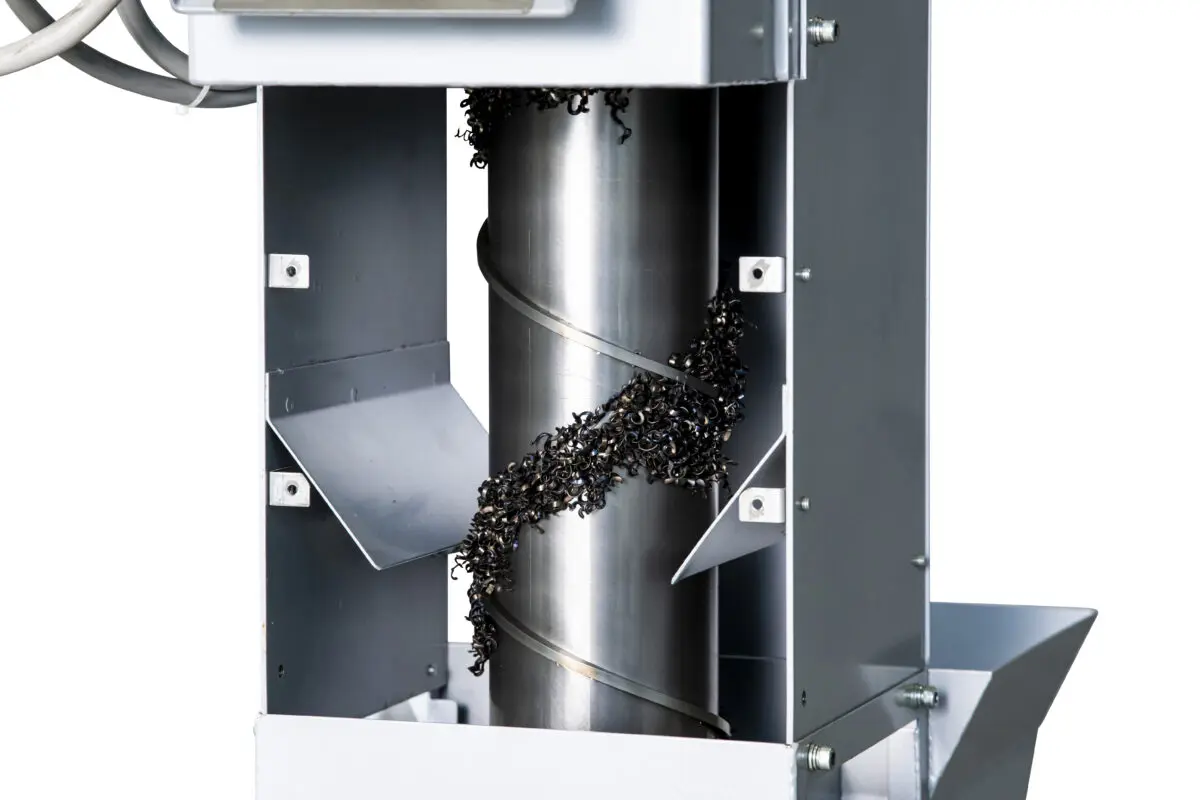

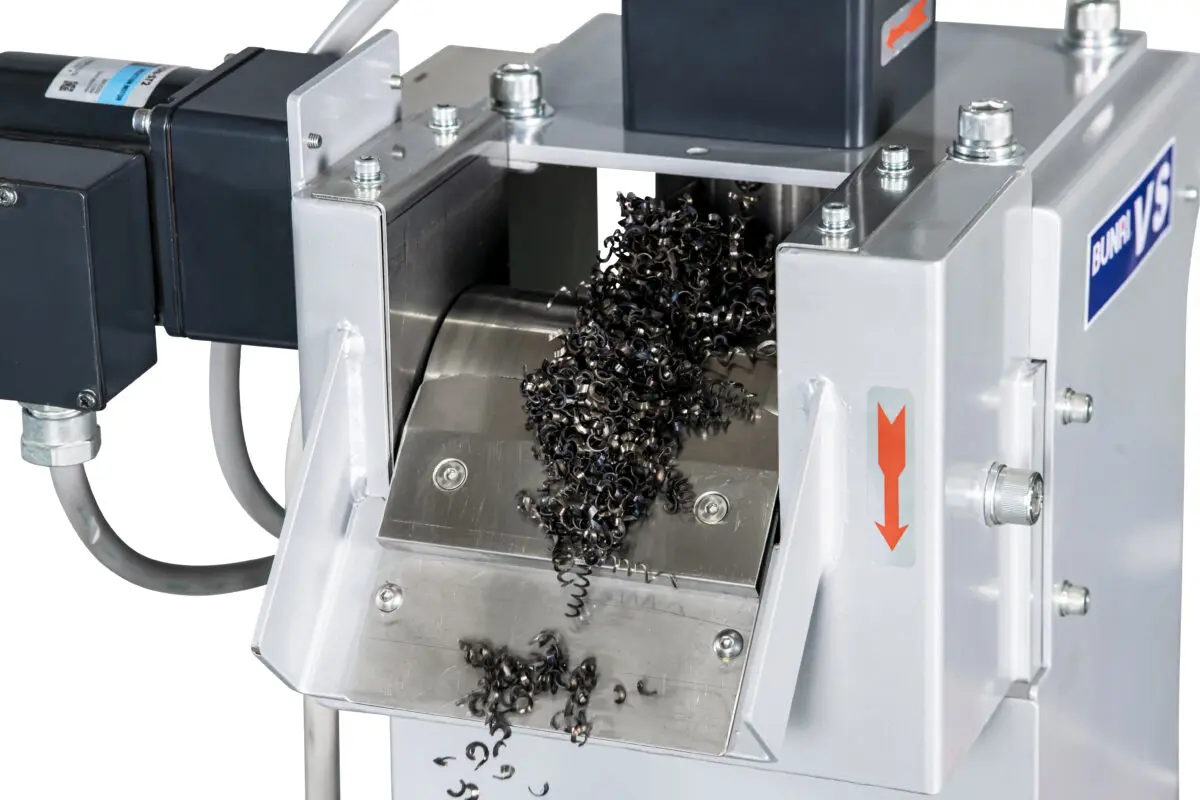

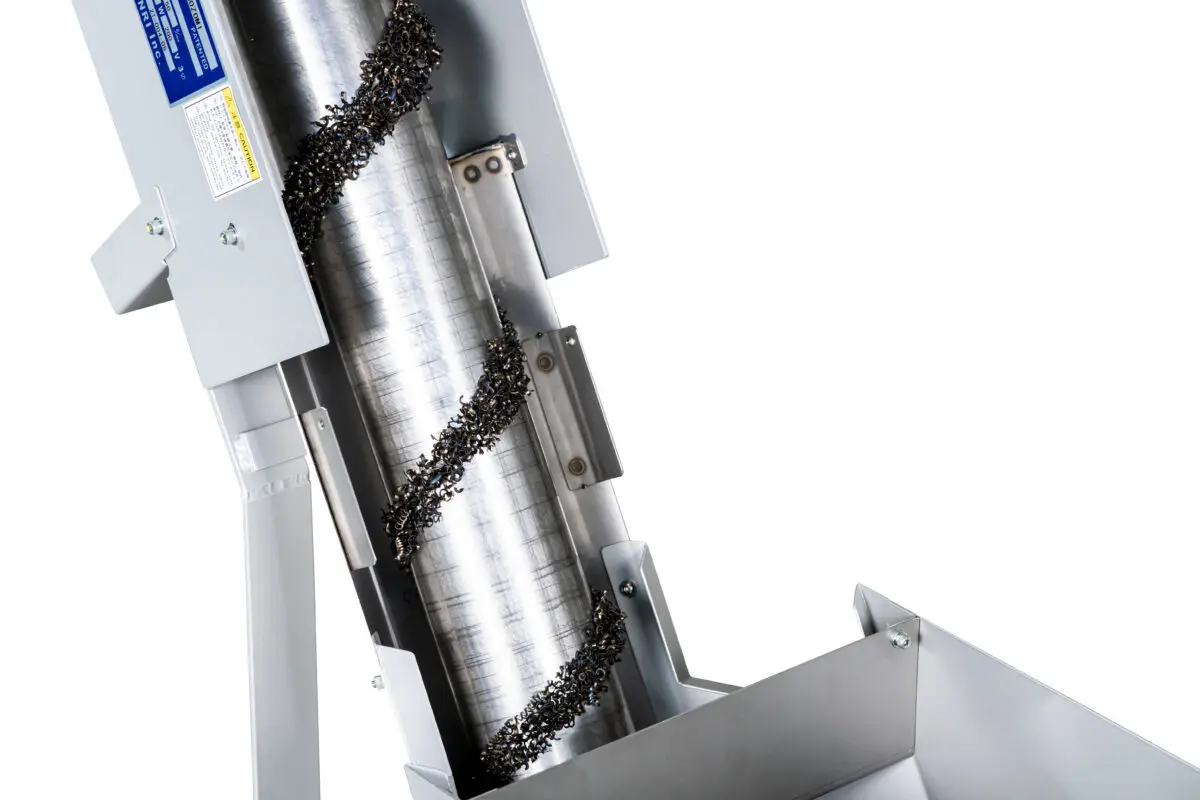

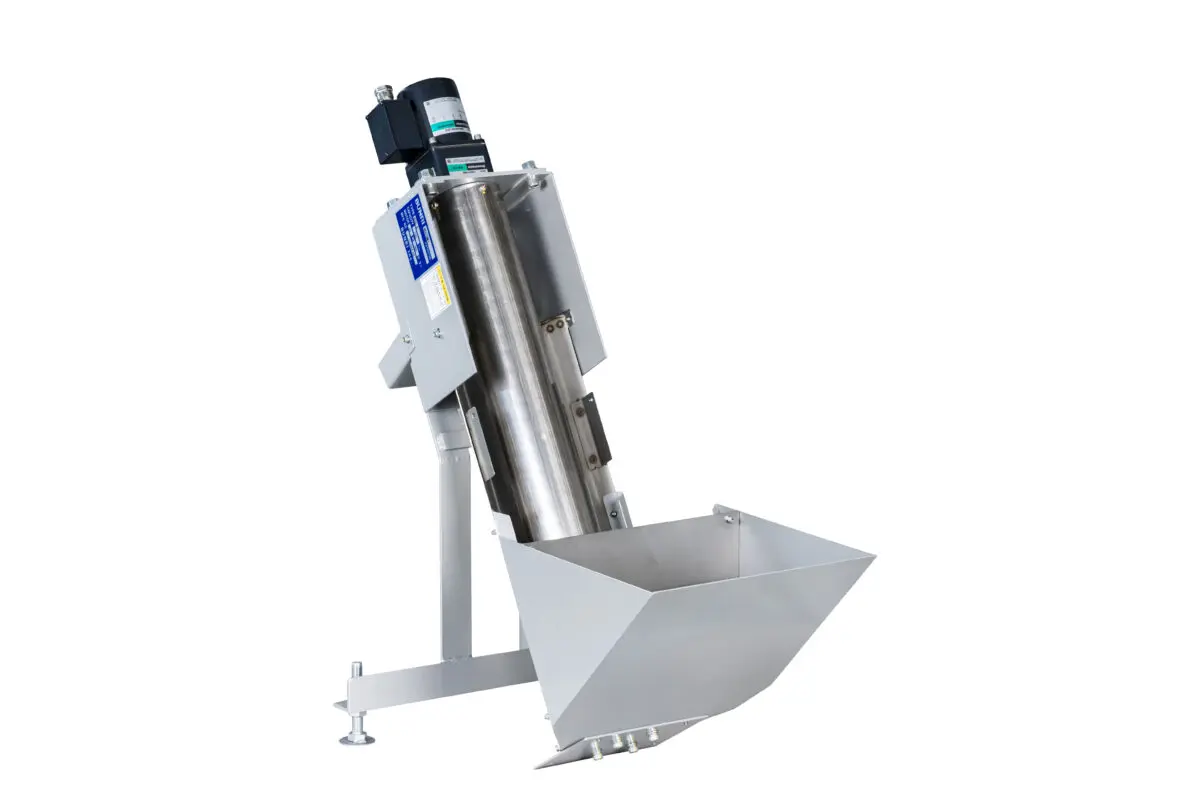

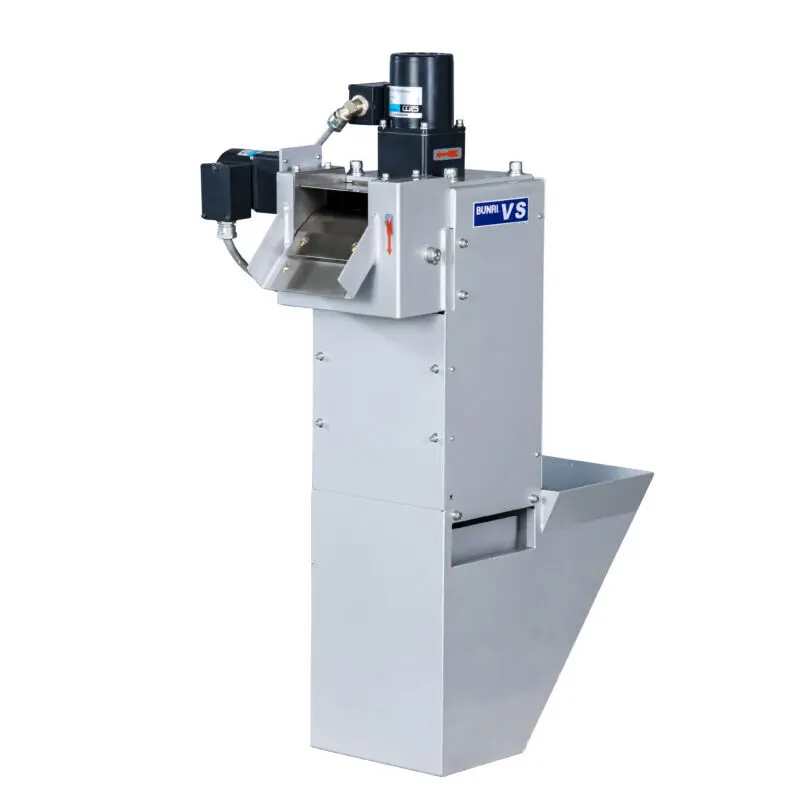

Product Photo (Example)

Main body

Main body

Basket section

Basket section

Unit

Unit


* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.
* The specifications and dimensions are subject to change without notice.
* When the oil viscosity exceeds 50 mm 2/s, please consult us.
* For details on how to select the supply pump, please contact us.
* For information about custom products other than standard products, please consult us.

* Photos are product images for illustration purposes only. Specifications differ from the actual product.
* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.
* The specifications and dimensions are subject to change without notice.
* For the oil-based specifications, please consult us.
* For information about custom products other than standard products, please consult us.
